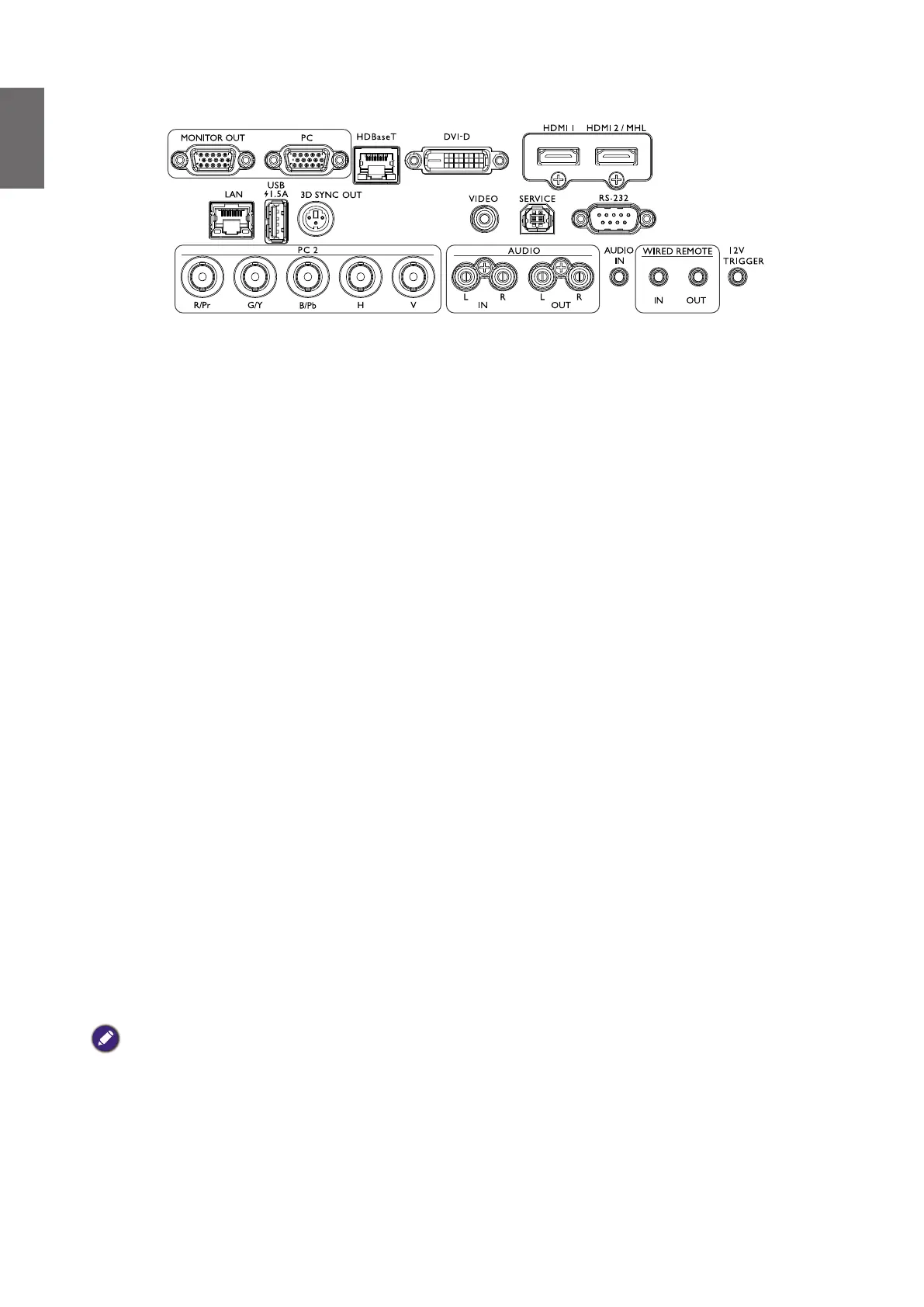

Control terminal
• MONITOR OUT
Connection to other display equipment for concurrent playback display.
• PC
15-pin VGA port for connection to RGB, component HD source, or PC.
• HDBaseT
For connection to RJ45 Cat5/Cat6 cable to input uncompressed high-denition video (HD).
• DVI-D
Connection to DVI source.
• HDMI 1
Connection to HDMI source.
• HDMI 2/MHL
Connection to HDMI or MHL source.
• LAN
For connection to RJ45 Cat5/Cat6 Ethernet cable to control the projector through a network.
• USB 1.5A
Support 5V/1.5A output.
• 3D SYNC OUT
Connection to 3D IR sync signal transmitter.
• VIDEO
Connection to a video source.
• SERVICE
Maintenance exclusive port for authorized maintenance personnel only.
• RS-232
Standard 9-pin D-sub interface for connection to PC control system and projector maintenance.
• PC 2 (R/Pr, G/Y, B/Pb, H, V)
Connection to RGB or YPbPr/YCbCr output signal with BNC type input terminal.
• AUDIO IN (L/R)
Connection to an audio input source via an audio or audio L/R cable.
• AUDIO OUT (L/R)
Connection to a speaker or headset.
• AUDIO IN
Connection to an audio input source via an audio cable.
• WIRED REMOTE IN
Connection to remote control for wire remote control.
Caution:
Make sure the port is valid before inserting a wired remote controller. The remote controller may be damaged in case
of an invalid port, e.g. a wired remote controller is connected to trigger output.
• WIRED REMOTE OUT
Connection to another projector.
• 12V TRIGGER
3.5mm mini earphone jack, employs 200mA display relay to provide 12(+/-1.5)V output and short
circuit protection.
