OPERATIONS FROM LCD KEYPAD
Figure 2 shows the main components of the Absoluta
supported keypads:
P. DESCRIPTION
1 Function LEDs.
2 Display.
3 Proximity Reader function LEDs (refer to
“OPERATING YOUR SYSTEM FROM A
READER” section).
4 Proximity Reader sensitive field.
5 Arrow (scroll keys).
6 Keys.
7 Emergency Keys.
8 Down flip.
9 Label with the main operations.
Absoluta Plus and Absoluta 630 OPERATIONS FROM LCD KEYPAD 35
7
6
4
1
23
5
7
5
6
9
12
8
1
2 3
6
5
A)
B)
C)
4
7

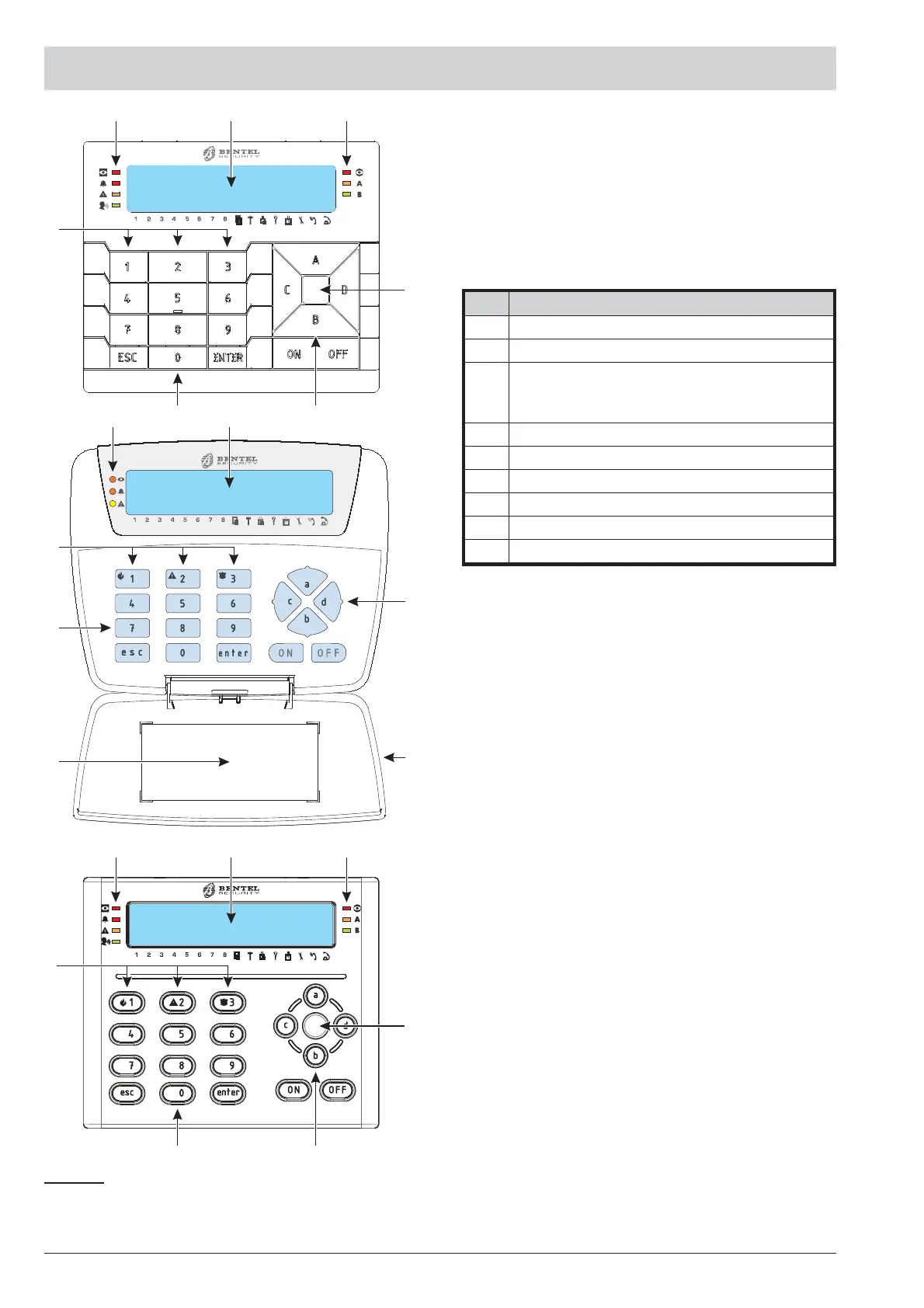

Figure 2 Absoluta supported keypads: A) PREMIUM
LCD, B) CLASSIKA LCD, C) ABSOLUTA T-Line.
