Installation Instruction
This product is suitable for standard 86*86mm wall box and
60 mm european round box.

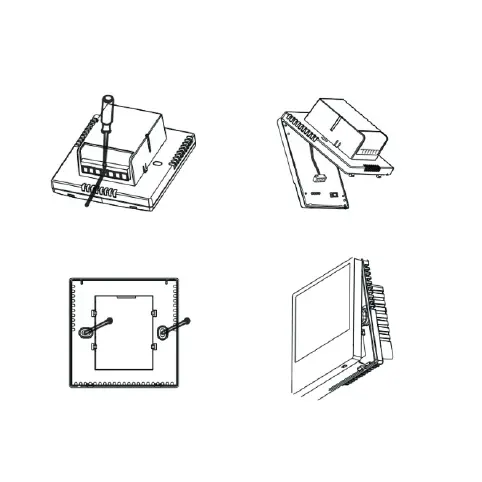

1.Connect the power box
according to the wiring diagram.
2.Separate the power supply from the
control board cable.
3.Screw the power supply into
the box of 86.
4.Connect the power board to the board
line, and align the buckle at 30 degrees
to complete the installation.
