LED surgical lights, single and combination lights CHROMOPHARE
®
E 778, E 668, E 558
Maintenance and inspection
90

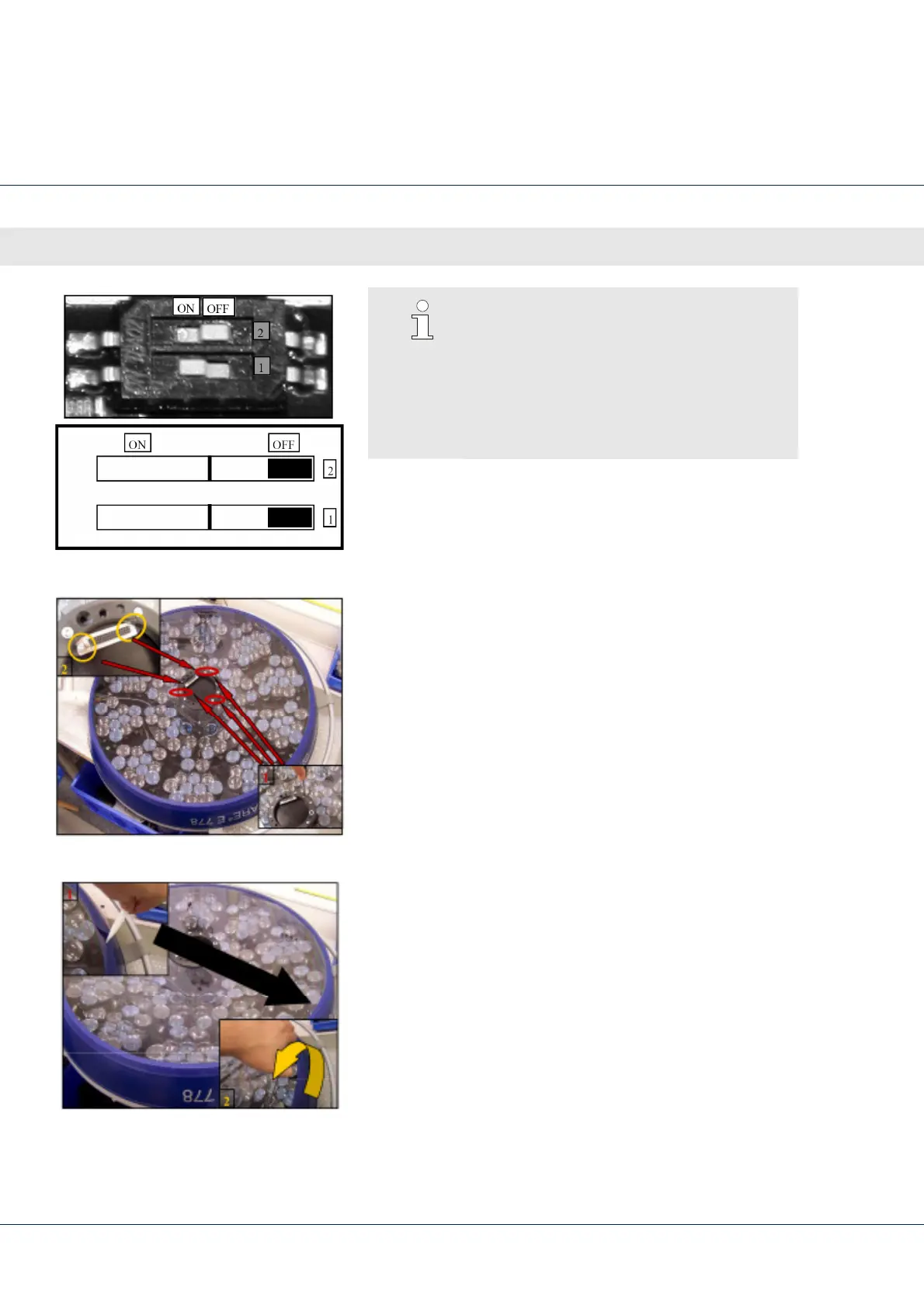

Fig. 53 DIP switch on LED modul
NOTE!
CAN-Bus end of line resistance:
The end of line resistance allows an interface
free communication between the CAN-Bus
components. The resistor (DIP switch 2) on
the first and the last module within a light
head must be switched on.
Fig. 54 Remove screws
1.
Remove the three screws fixing the black plastic ring
although remove the screws fixing the interface plug on
the lower glass holder.
Fig. 55 Lift silicone ring, remove glass
2.
Use a acuate tool to lift the silicone seal to remove the
glass.
3.
Carefully remove the glass.
