LED surgical lights, single and combination lights CHROMOPHARE
®
E 778, E 668, E 558
Maintenance and inspection
91

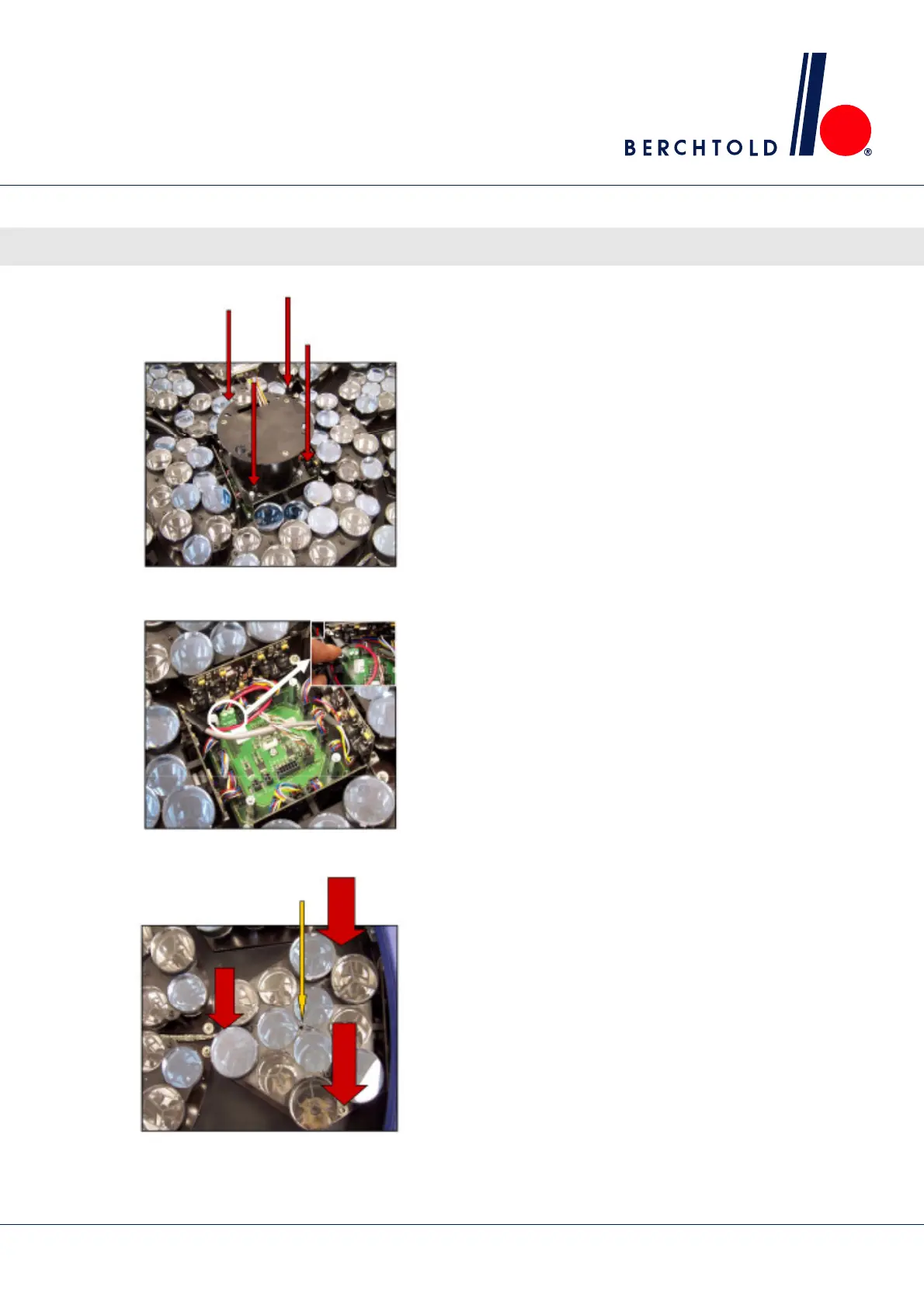

Fig. 56 Remove screws
4.
Remove the four screws shown by the arrows.
Fig. 57 Disconnect power supply
5.
Disconnected the power supply on the junction board.
Fig. 58 Undo LED modules
6.
The LED module is finished with three hexagonal socket
screws (see red, fat arrowos) and a grub screw (see
yellow, narrow arrow) remove the hexagonal socket
screws completely and undo the grub screws.
The module is now free.
