Bernette H79 - Attaching the Hoop to the Machine

Model H79
23
Operation
Operation
Attaching the Hoop to the Machine

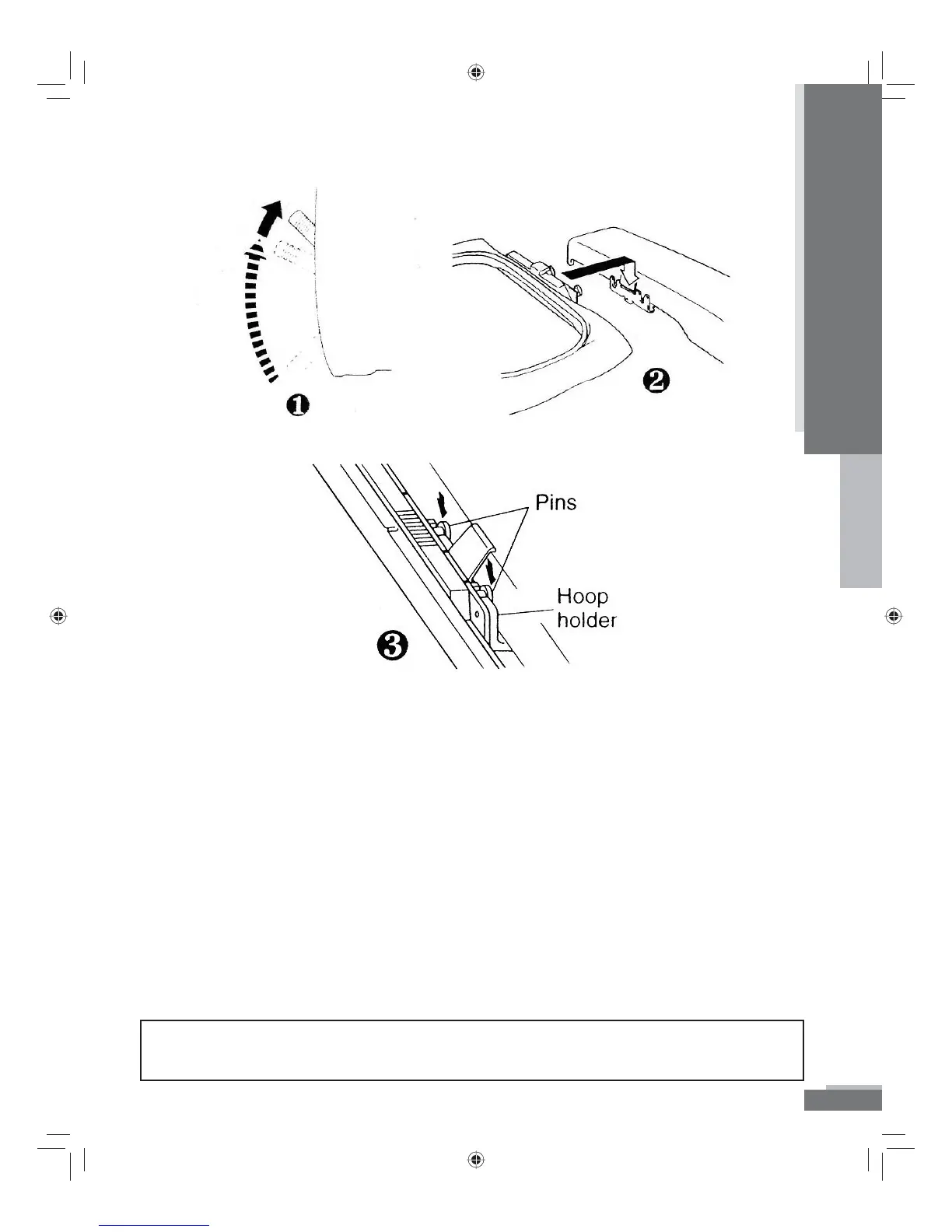

1. Raise the presser foot to its highest position.
2. Pass the embroidery hoop under the presser foot with the
mounting pins on the right side and the fabric right side up. NOTE:
It is easier to slide the embroidery hoop under the presser foot if
you lift the presser foot all the way to its highest position with your
left hand as you slide the hoop under the presser foot with your
right hand.
3. Align the two pins on the embroidery hoop and  rmly press
straight down into the hoop holder until a soft click is heard.
NOTE: Do not push too hard as you attach the hoop. Use caution
so as not to move the hoop holder in any direction as you attach
the hoop.
NOTE: Be sure to insert both pins. If only one pin is inserted, the result may be poor
quality embroidery.
