Model H79
32

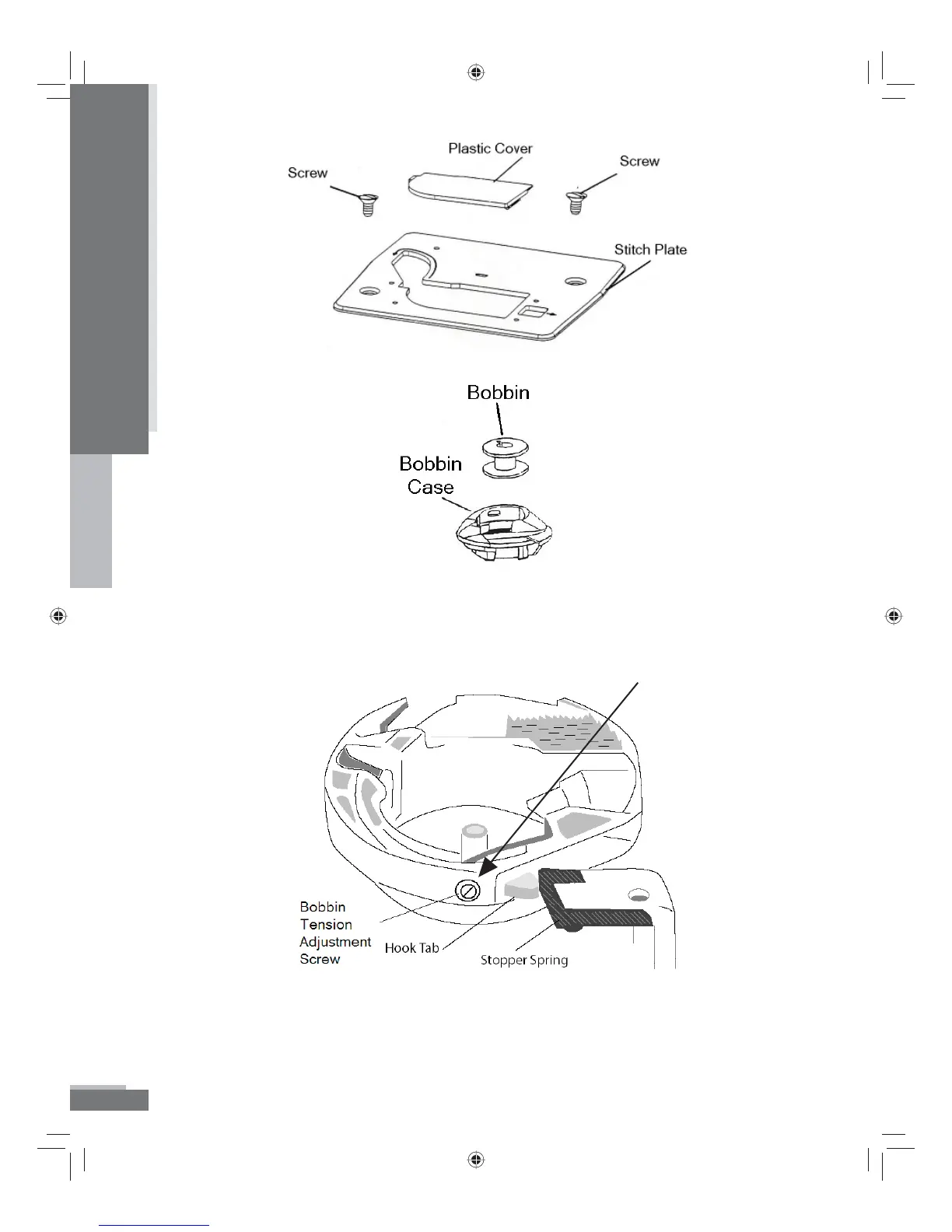

Remove the bobbin and the bobbin case.
If too much bobbin thread is showing on top of the embroidery, the
bobbin tension needs to be tightened. On the side of the bobbin
case there is a tiny screw (bobbin tension adjustment screw).
Using the small end of the 3-way screwdriver tool, rotate the screw ¼
turn to the right to tighten the tension.
Operation
