13
EXPRESS DUAL • ED3000
© Bernhard and Company Limited
6.3 To ensure that the correct position for the mower unit has been achieved, both control
wheels (right hand and left hand) should be wound in a clockwise direction so that the
grinding wheel may be placed to contact each end of the reel evenly. If the grinding wheel
touches the bedknife or any part other than the reel, the whole unit must be moved by
adjusting the position of the multix brackets or roller brackets. The exact position required
will be easily seen by looking along the mainshaft from one end of the machine as the
stone is raised to check that the point of contact is in a suitable position (see Figure 6.3).
NOTE If the cutting unit has no front roller tted so that the multix brackets are used then, once
the correct position for any particular unit has been nalised a “set up guide” should be
completed and led for future reference so that the identical multix brackets positions can
be used for all subsequent applications on the same type of unit.
6. In-frame Grinding
(Continued)

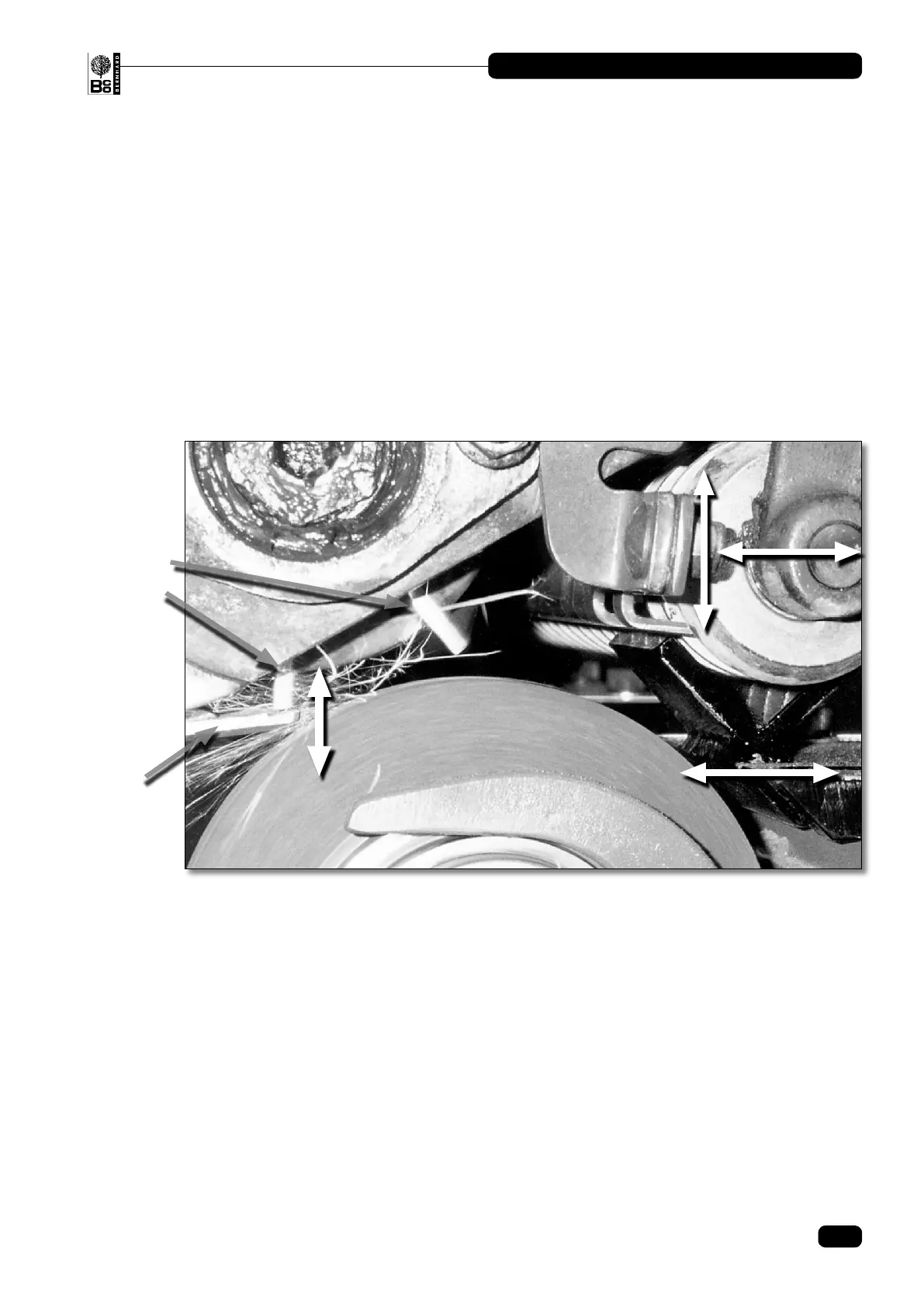

Fig: 6.3
Reel
blades
Front Roller position
is adjustable
Grind stone has to contact
reel blades for sharpening
without touching anything else
Adjustable Front
Roller support
Position of
bedknife is
adjustable
