Bernhard ED3000 - Feed Adjustment

27
EXPRESS DUAL • ED3000
© Bernhard and Company Limited
9. Parts List (Continued)
Ref # Name of Part Qty. Part #

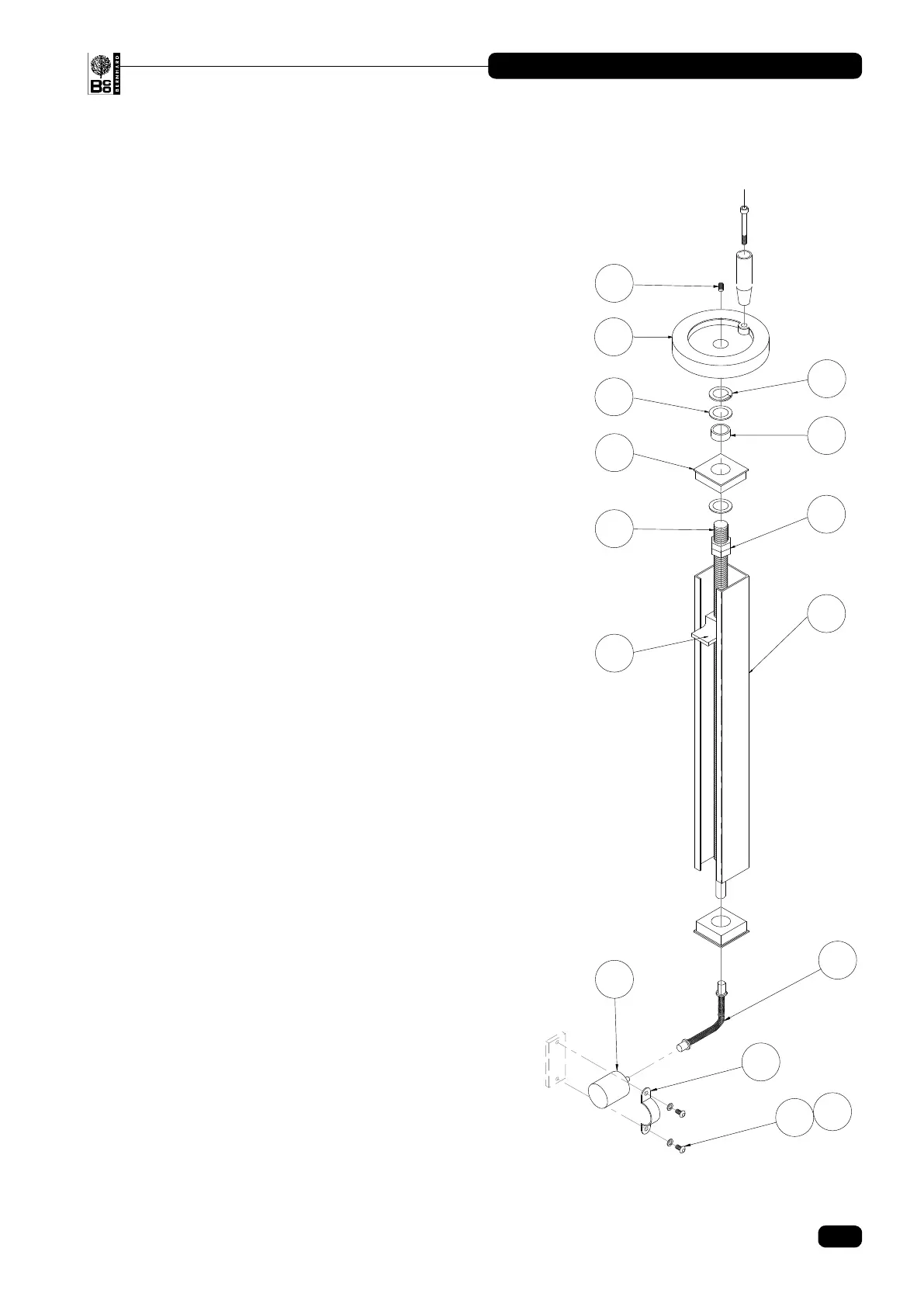

FEED ADJUSTMENT
____________________________________
1 Feed Channel L.H. c/w top and bottom cap ...... 1 A4041
Feed Channel R.H. c/w top and bottom cap ..... 1 A4042
2 Feedscrew Cap c/w Bush.................................. 4 A4044
3 Feedscrew (before Serial No. 12586) ............... 2 A9039
Feedscrew (from Serial No. 12586) .................. 2 A9208
4 Locknut.............................................................. 4 A5502
5 Handwheel 150mm dia...................................... 2 A6113
6 Die Spring.......................................................... 2 A6278
5/8” Double Coil Spring Washer (older machines).... 2 A5303
7 5/8” whit x 5/8” Socket Screw............................ 2 A5110
8 5/8” Washer ....................................................... 4 A5305
9 Bush (included with item 2) ............................... 4
10 Feed Nut............................................................ 2 A4043
11 Spring Coupling Kit............................................ 2 A9700
12 Encoder ............................................................. 2 A8074
13 Saddle Clamp.................................................... 2 A6851
14 M5 x 10 Button Head Screw.............................. 4 A5129
15 M5 Washer ........................................................ 4 A5318
FEED ADJUSTMENT















