EXPRESS DUAL • ED3000
© Bernhard and Company Limited

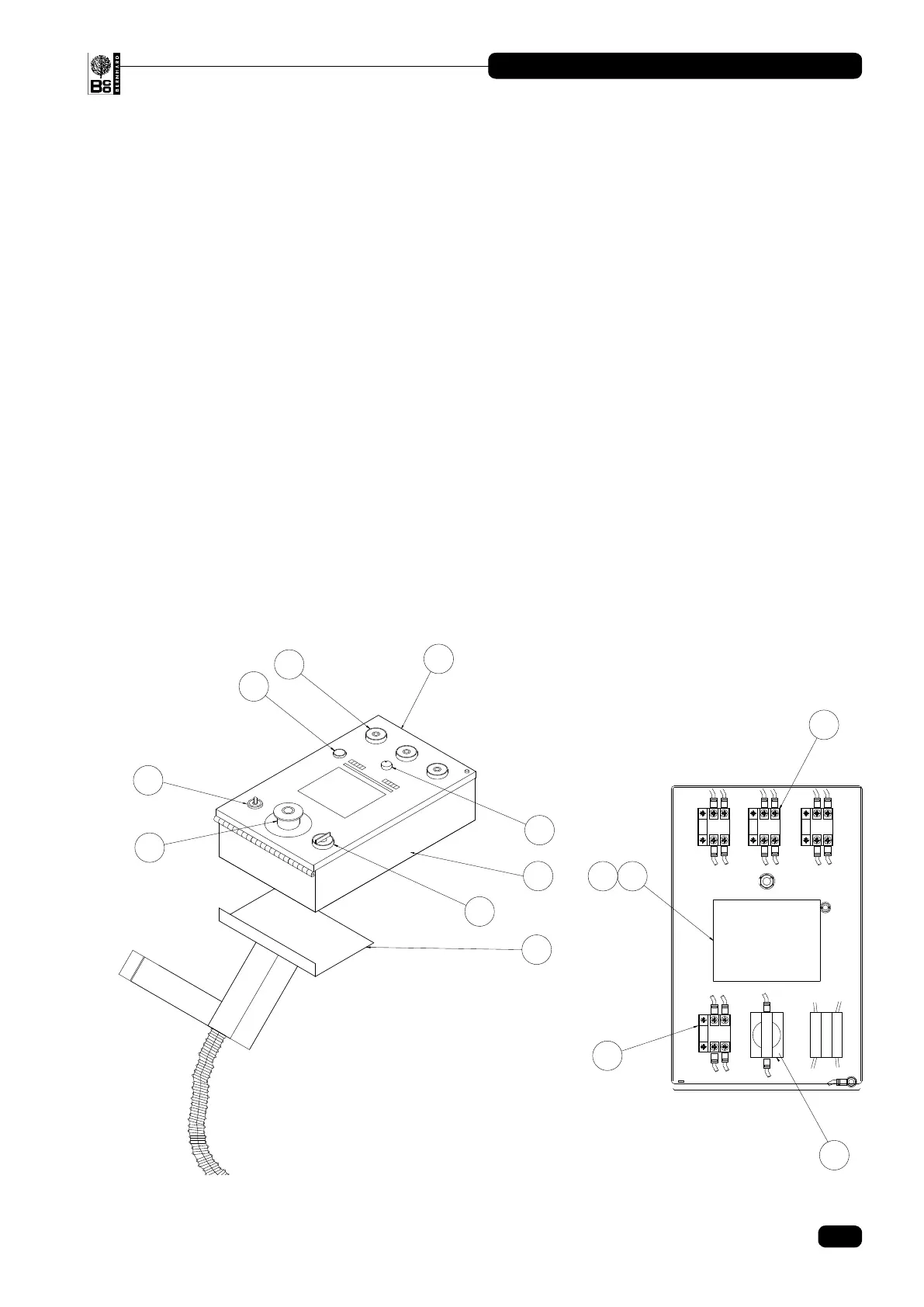

CONTROL BOX
____________________________________________________________
1 Control Box.............................................................................. 1 A8042
2 Control Box Lid........................................................................1 A8043
Control Box Lid with Vac Switch .............................................1 A8764 (option)
3 Control Box Arm...................................................................... 1 A4028
4 Pushbutton .............................................................................. 3 A8040
5 B3T10 Contact Block...............................................................3 A8039
6 2 Position Switch (for vacuum)................................................1 A8147 (if tted)
7 Contact Block (for the above)..................................................1 A8059 ( “ )
8 Emergency Stop Button ..........................................................1 A8073
9 B4T02 Contact Block .............................................................. 1 A8358
10 Toggle Switch .......................................................................... 1 A8071
11 1k Potentiometer .....................................................................1 A8014
12 Reset Button (LED) ................................................................. 1 A8131
13 LED Light Red ......................................................................... 2 A8129 (not with PIC)
LED Light Yellow .....................................................................2 A8150 (not with PIC)
LED Light Green...................................................................... 1 A8088 (not with PIC)
14 PIC Control PCB ..................................................................... 1 A8839
15 Lead for PIC Control PCB ....................................................... 1 A8853
Ref # Name of Part
Qty. Part #
9. Parts List
(Continued)
To Next Page
