3. Set Up and Installation
Fig: 3.2
3.1
Handling
If the machine is crated, it can be moved by a suitable fork lift truck or pallet truck under
the pallet (skid). Once the lid and sides of the crate are removed, a fork lift truck may be
used under the lifting members of the machine chassis.
The machine can be lifted off the pallet using suitable lifting tackle through 4 lifting eyes
(provided) tted at the points indicated on the top corners of the machine.
The total weight of the machine is indicated on the machine plate and also at the front of
this manual.
3.2 Location
The machine should be located in a well lit environment with adequate headroom. For
ideal operation, the machine should be accessible from the front, rear and at least one

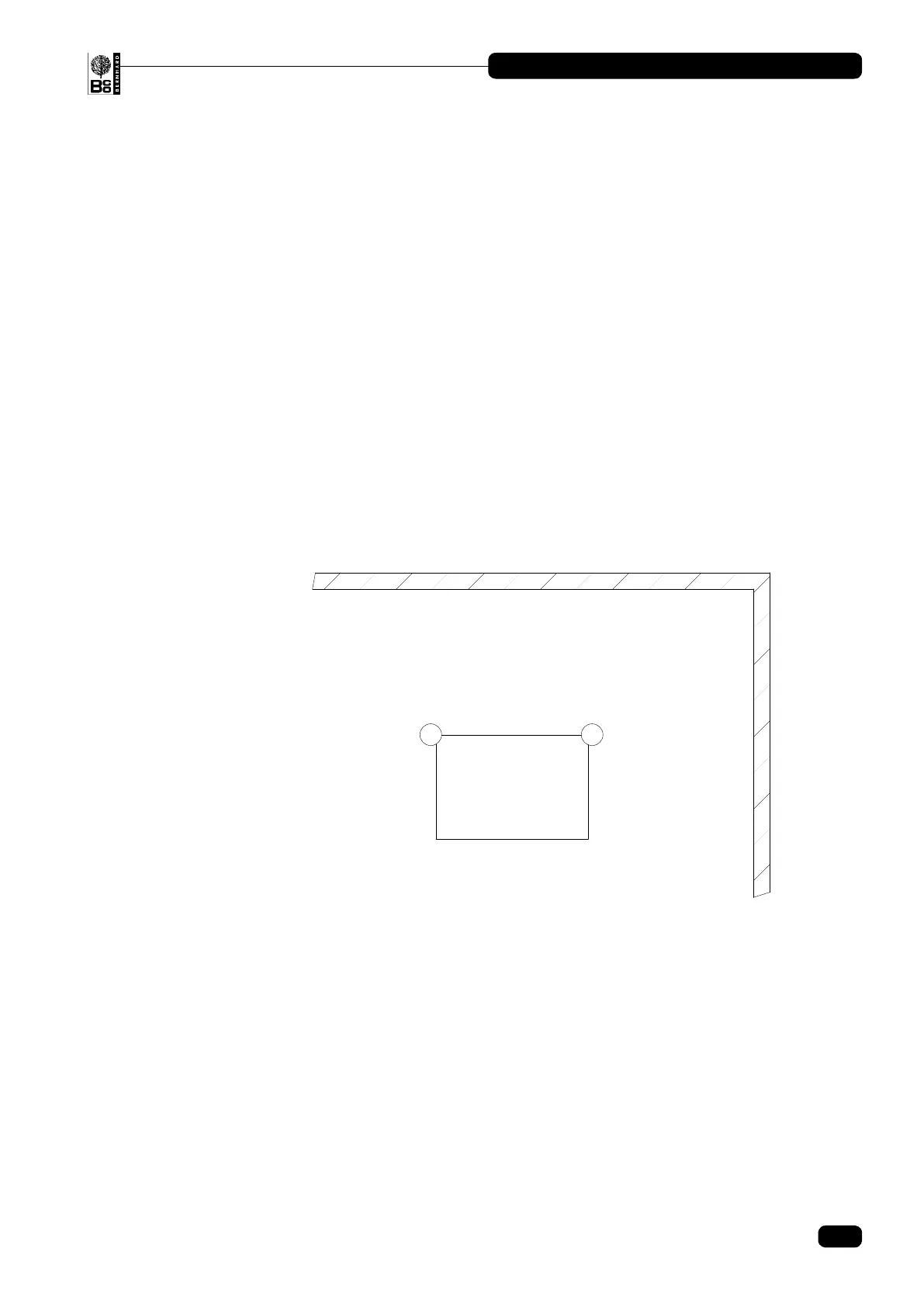

side, with clearance around it as indicated in the sketch (Fig. 3.2).
3.3 Leveling
The machines should,ideally, be placed on a solid level oor, and this should be checked
by placing a spirit level on the table. Check the level in both directions. Steel shims should
be placed under the feet as necessary to ensure that the machine is rm and level. Bolt
holes are provided in the feet which can be used for xing down if required.
NOTE Ensure that the packing under the feet is correct before tightening the bolts, otherwise
twisting of the frame may occur.
