39
EXPRESS DUAL • ED3000
© Bernhard and Company Limited

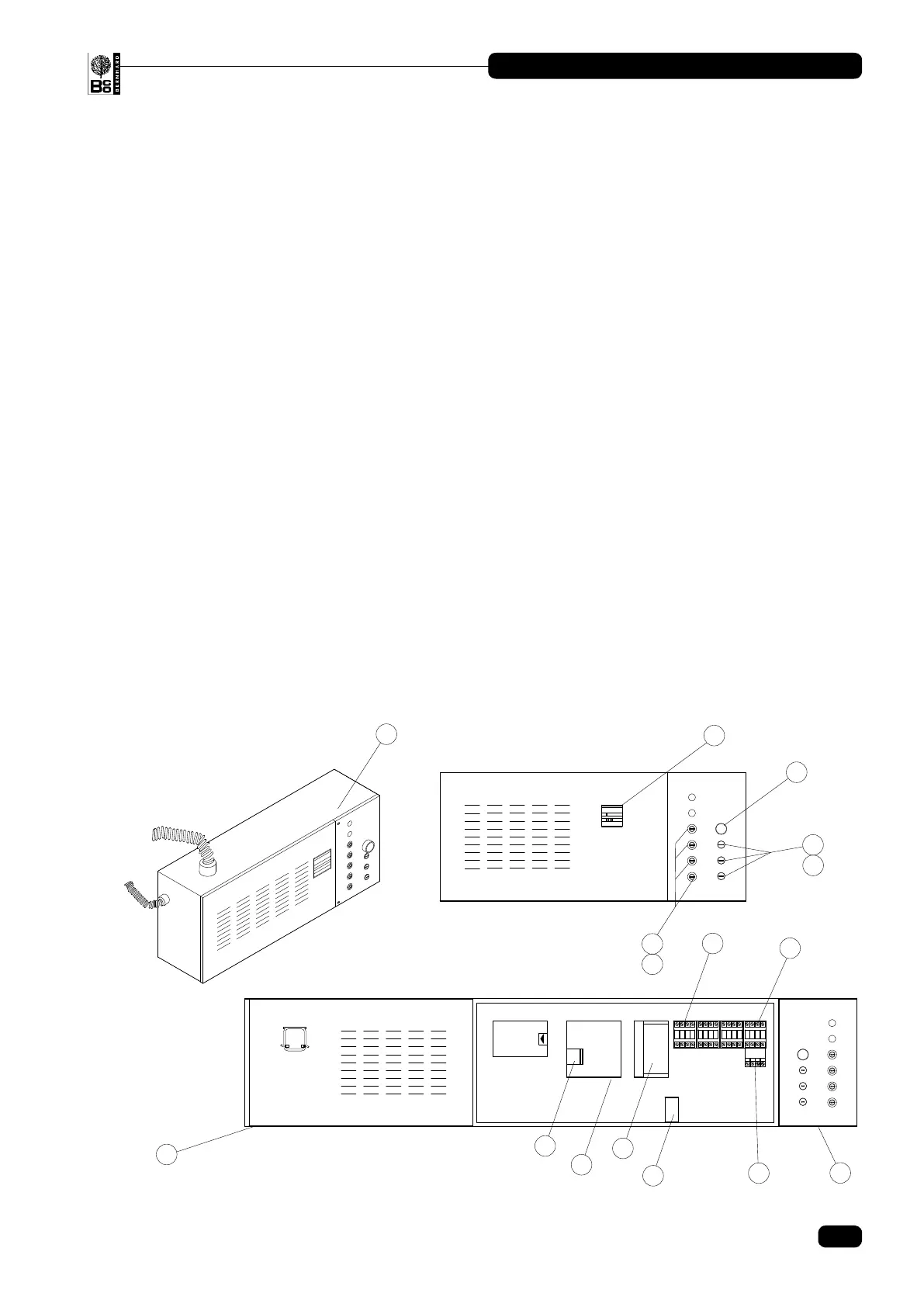

ELECTRICAL CABINET
___________________________________________________
1 Electrical Cabinet ....................................................................1 A6325
2 Hours Meter 60Hz ...................................................................1 A8398
Hours Meter 50Hz ................................................................... 1 A8093
3 Fuse Holder .............................................................................3 A8174
4 Fuse 16 amp (Supply) .............................................................2 A8084
Fuse 10 amp (Lift Table) .........................................................1 A8083
5 Fuse Holder .............................................................................4 A8081
6 Fuse 2 amp (Traverse Motor)..................................................1 A8085
Fuse 6.3 amp (Inverter)...........................................................1 A8087
Fuse 5 amp (Clamp)................................................................ 1 A8086
Fuse 1.25 amp (LED Lights) ...................................................1 A8082
7 Contactor K209A10................................................................. 3 A8063
8 Thermal Overload 60Hz..........................................................1 A8116
Thermal Overload 50 Hz......................................................... 1 A8117
Thermal Overload 3 Phase .....................................................1 A8115
9 Reversing Contactor K209A01 ...............................................1 A8062
10 ABB Inverter ............................................................................ 1 A8829
11 Transformer .............................................................................1 A8024
12 Smoothing Capacitor 10000uf ................................................1 A8004
13 G7 PLC (20 I / O)..................................................................... 1 A8420
G7 PLC (10 I / O) ..................................................................... 1 A8762
K10 PLC................................................................................... 2 A8119
14 Hours Meter Door....................................................................1 A6336
15 Traverse Motor Capacitor 3uf..................................................1 A8148
16 Reset Button............................................................................ 1 A8130
17 Fuse Door................................................................................ 1 A6329
Ref # Name of Part
Qty. Part #
9. Parts List
(Continued)
To Next Page
