ENGLISHGold/Plus/Easy refrigerated cabinets
61
Ed. 12/2020

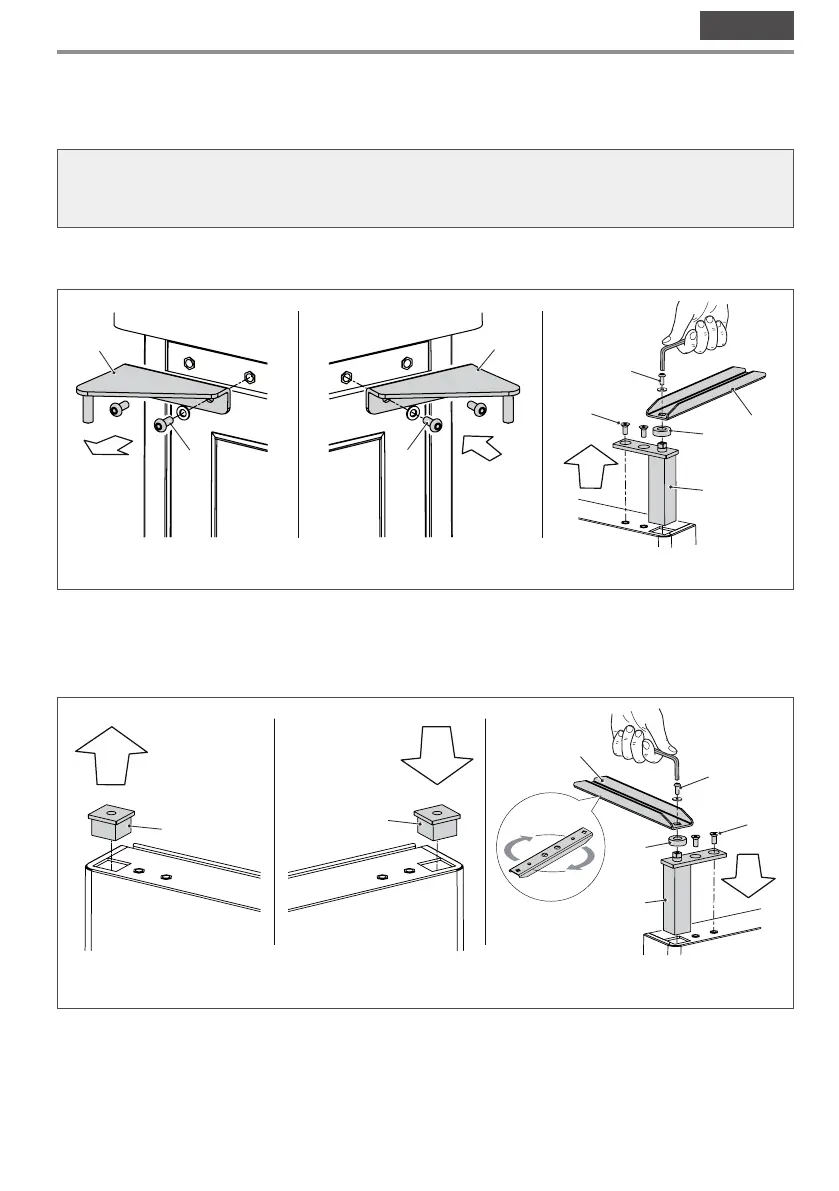

– remove the upper left hinge (5) by removing the two screws(7);
– attach the new upper hinge (1) by fixing it on the right using the screws that were previously removed;
– take the lower bracket off (4) by removing the screws (8);
– then, remove the bushing (9);
m
BE CAREFUL
The lower bracket (4) has two square holes on both sides. Mark which ones to use because the same
bracket should then be mounted on the opposite side of the door opening to the left.
– remove the screws (10) of the door spring bracket, then slide the entire spring unit from the bottom of the door
(11);
8
10
4
9
11
5
1
7 7
Fig. 11
– from the upper side of the door, remove the support cap (12)and put it back on the other end of the door in place
of the spring block;
– assemble the spring block (11) in the hole left by the support cap, using the screw to secure it in place (10);
– then, reassemble the bushing (9) and bracket (4) turning it 180° before positioning it;
– use the screw (8)to secure the bracket in position which will be slightly open towards the inside;
8
10
4
9
11
12
12
180°
Fig. 12
