MAINTENANCE AND CHECKS
CLUTCH PUMP OILCLUTCH PUMP OIL
CLUTCH PUMP OILCLUTCH PUMP OIL
CLUTCH PUMP OIL

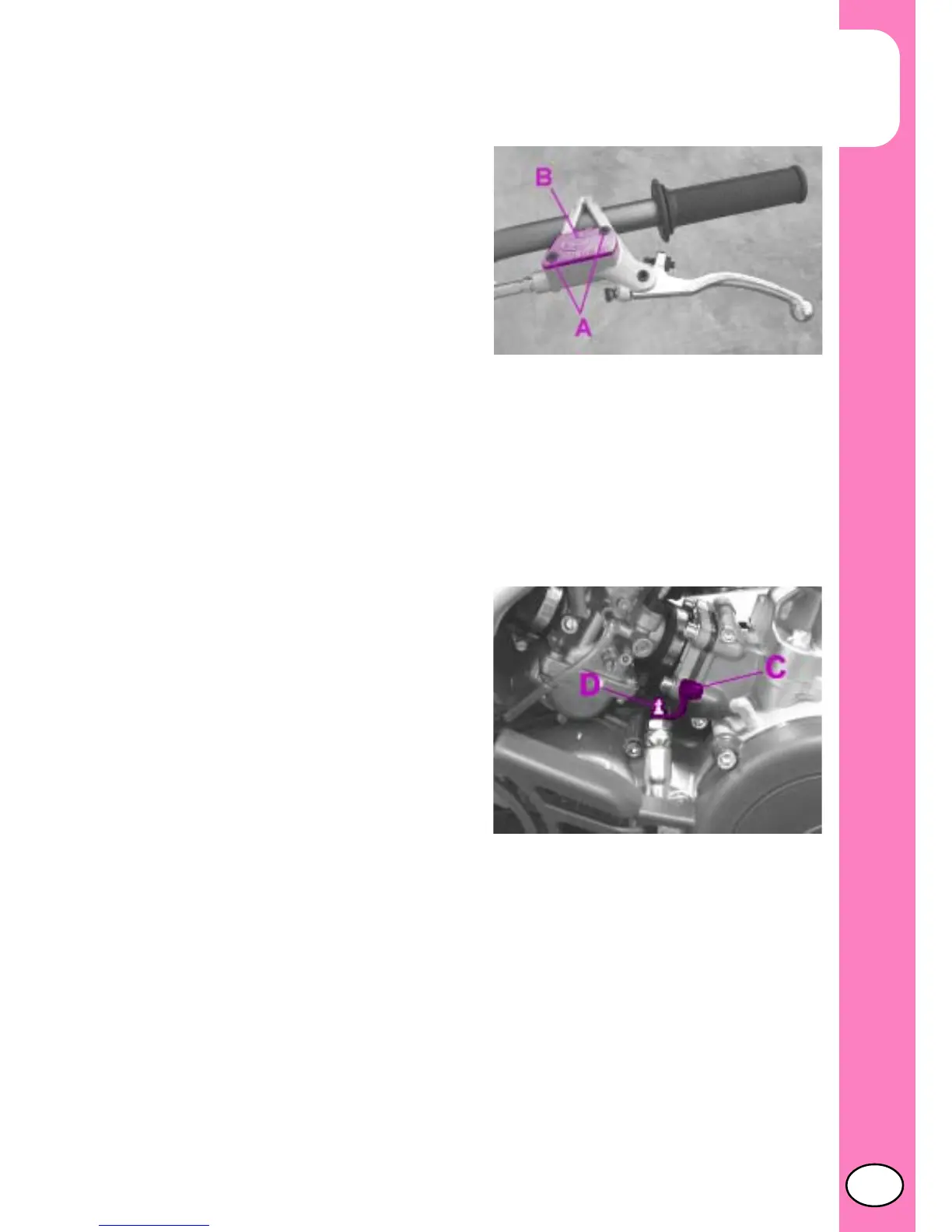

Check the oil level. The oil level must never
be below half the tank capacity.
To restore the oil level, top up by unscrewing
the two screws
AA
AA
A, lifting cop
BB
BB
B and adding
oil.
Note:Note:
Note:Note:
Note:
For oiI changes, follow the instructions
given on the chart on pag. 62, using the
Iubricants recommended on pag. 47
Note:Note:
Note:Note:
Note:
Handle the hydraulic oiI very carefully. It
is corrosive, and will irreparably damage
painted or plastic parts of the motorcycle
upon contact.
Bleeding of clutchBleeding of clutch
Bleeding of clutchBleeding of clutch
Bleeding of clutch
To bleed air from the clutch circuit, pro-
ceed as follows:
•Remove the rubber cap
CC
CC
C from valve
D D
D D
D
•Open the oiI sump cap
•Insert one end of a tube trasparent into
valve
D D
D D
D and the other end into a con-
tainer
•Pump with the lever 2/3 times an remain
with the pressed lever
•Unscrew the valve until obtaining a con-
tinuous outflow of oil with no air bubbles
•Close the valve and release the lever
•If in to the pipe they are visible of air bub-
bles, repeat the preceding operation un-
til obtaining a continuous outflow of oil
with no air bubbles
Note:Note:
Note:Note:
Note: During this procedure, you must
continuously top up the brake pump tank
to replace the oil that is removed
•Remove the tube
•Replace the rubber cap.
