MAINTENANCE AND CHECKS

FORK OILFORK OIL

FORK OIL

Right shaftRight shaft

Right shaft

To replace the oil, proceed as follows:

1) Remove the front wheel

2) Remove the handlebar (see pag.65)

3) Loosen left shaft lock the screws

and take off the slider

4) Unscrew upper plug

5) Unscrew fixing lock nut and take off

the plug

6) Unscrew the fixing screw of the

cartridge positioned under the slider,

and extract the cartridge

7) Empty the fork leg and the cartridge,

the drain all the inside oil

8) Fit again the cartridge on the slider

tightening the fixing screw, then refill

oil (OJ01) in the cartridge up to the

level indicated in the figure (with fork

in the fully compressed position)

9) Fit again the plug on the rod, tighten

the lock nut and, extending the fork

leg, screw the plug on the shaft

10) Fit again the fork

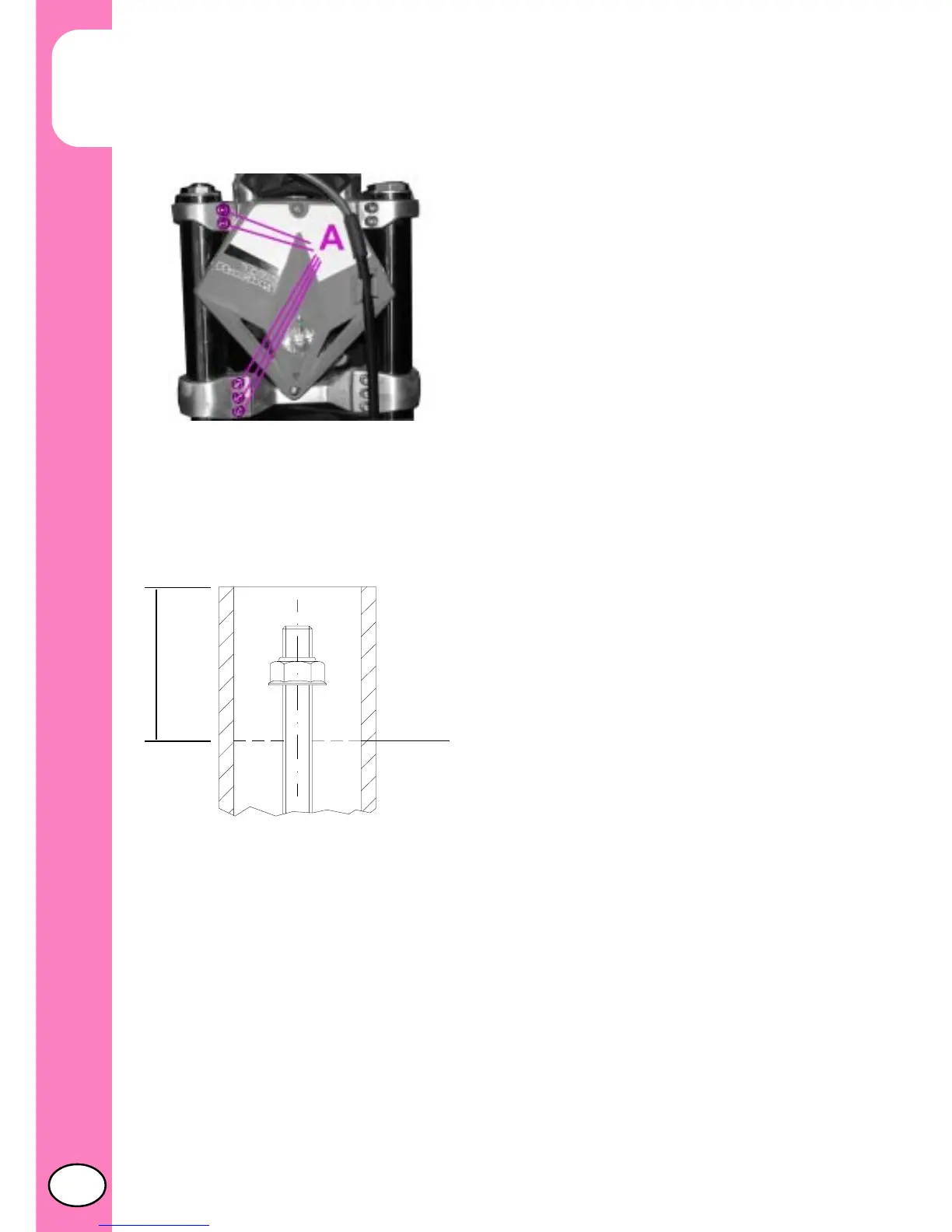

60 mm

Oil

level

Note:Note:

Note:

For screw A: torque wrench setting

7,8 : 9,1 Nm.
