Beta REV 3 User Manual

64
ADJUSTEMENTS
GB
4
ADJUSTMENT OF BRAKESADJUSTMENT OF BRAKES
ADJUSTMENT OF BRAKESADJUSTMENT OF BRAKES
ADJUSTMENT OF BRAKES
FF
FF
F
ront brakeront brake
ront brakeront brake
ront brake

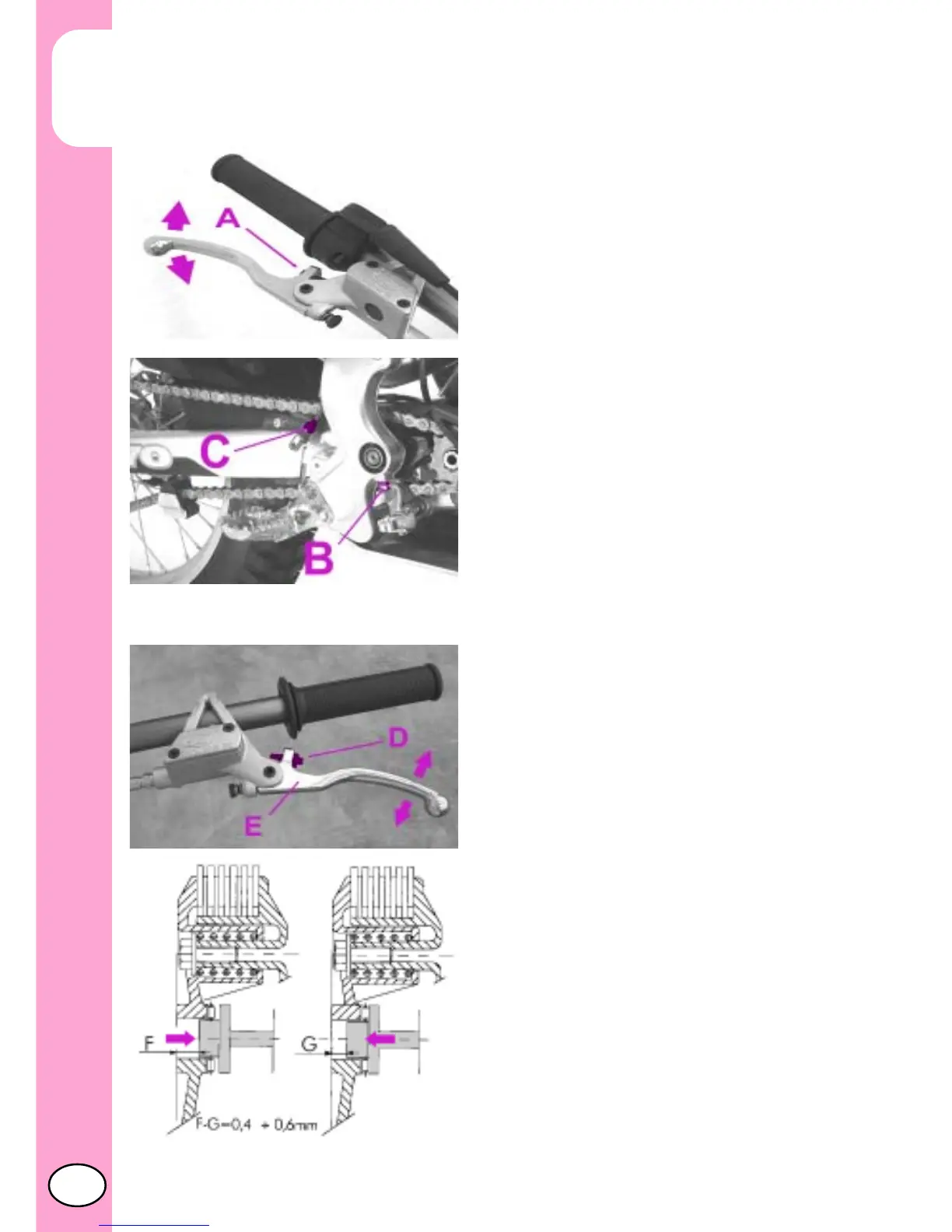

The front brake is disk type with hydraulic
control, and therefore requires only ordi-
nary maintenance. If you want to adjust
the position of the lever, use register
AA
AA
A.
RR
RR
R
ear brakeear brake
ear brakeear brake
ear brake
The rear brake is disk type with hydraulic
control. You may adjust pedal height by
means of registers
BB
BB
B and
CC
CC
C.
A minimum of clearance is
reccommended.
ADJUSTMENT OF CLADJUSTMENT OF CL
ADJUSTMENT OF CLADJUSTMENT OF CL
ADJUSTMENT OF CL
UTUT
UTUT
UT
CHCH
CHCH
CH
Generally, the only operation that is
performed on the clutch is adjustment of
the position of lever
EE
EE
E
..
..
. To do this, use
register
DD
DD
D
..
..
.
Note:Note:
Note:Note:
Note:
The device you push clutch must have a
play of between 0.4 mm and 0.6 mm.
Therefore, proceed as follows when re-
placing disks:
•Reassemble the clutch without the outer
cover
•Send the control rod to end of travel by
pushing from the pressure plate and
measure distance
F F
F F
F
•Operate the clutch lever until the control
rod activates the pressure plate. Measure
distance
GG
GG
G and check that there is
difference of approximately 0.4-0.6mm.

Beta REV 3 Specifications

General

Manufacturer	Beta
Model	REV 3
Fuel System	Carburetor
Starting System	Kickstart
Transmission	6-speed
Final Drive	Chain
Engine Type	Single-cylinder, two-stroke
Cooling System	Liquid cooled
Ignition	Electronic
Rear Suspension	Sachs shock absorber
Front Brake	Disc
Rear Brake	Disc
Front Suspension	Marzocchi upside-down fork
