Beta RR 480 EFI - Digital Rpm Indicator Operating Instructions

2
OPERATION
20
GB
1
2
3
6
4
7

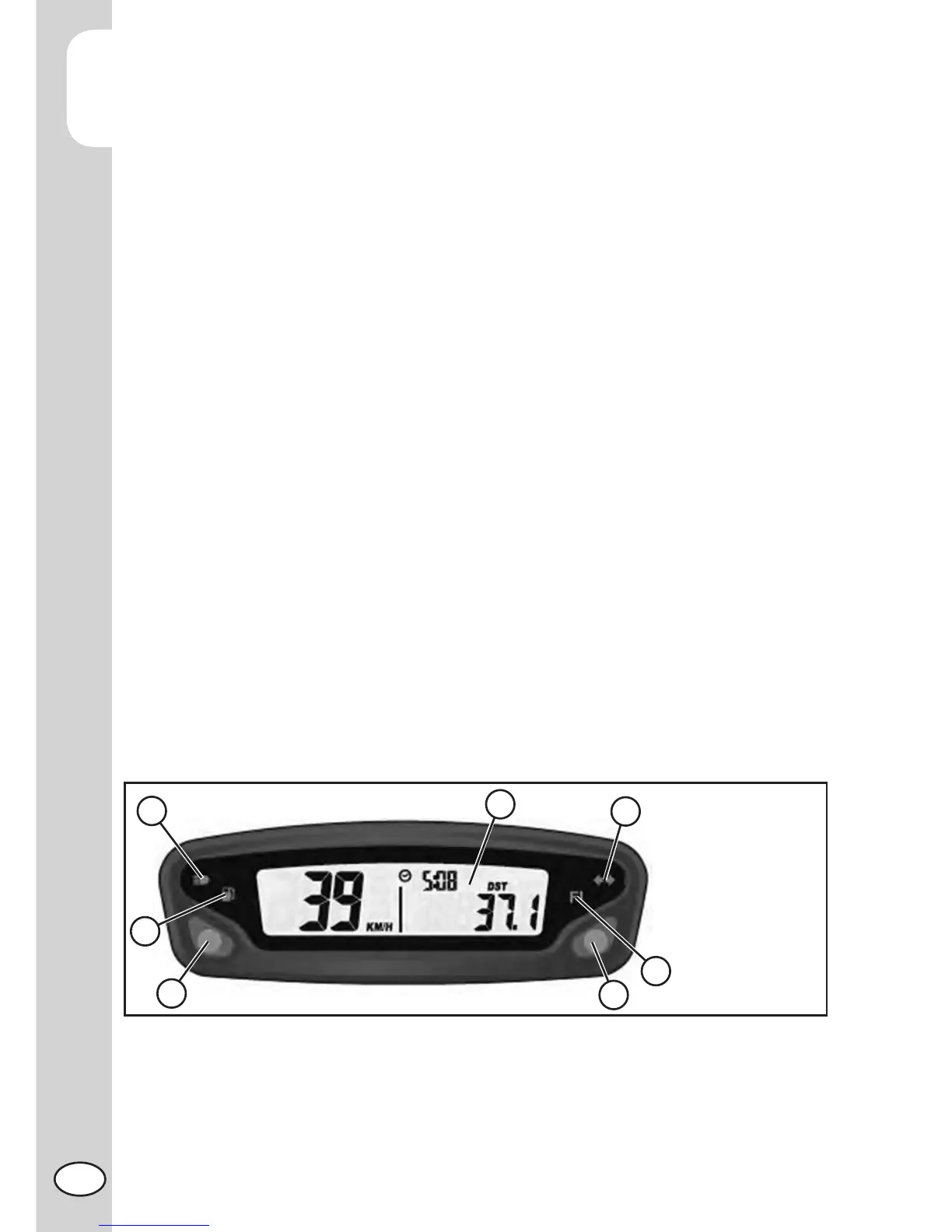

1 LCD
2 High beam light
3 Fuel reserve light
4 Turn indicator
light
5 Injection light
6 Button 1
7 Button 2
5
DIGITAL RPM INDICATOR OPERATING INSTRUCTIONS
Contents
1 GENERAL SPECIFICATIONS AND GENERAL INFORMATIONS
1.1 General specifications
1.2 General informations
2 SETTING THE PARAMETERS
2.1 Setup sequence
2.1.1 Selecting the unit of measure
2.1.2 Selecting the wheel size
2.1.3 Selecting the clock format
2.1.4 Setting the Time
2.1.5 Selecting the maintenance memo
3 SCREENS
4 FEATURES
5 SPEEDOMETER
6 ADJUSTING THE TRAVELLED DISTANCE METER
7 WARNING LIGHTS
1 GENERAL SPECIFICATIONS AND GENERAL INFORMATIONS
1.1 GENERAL SPECIFICATIONS
SPEED/DISTANCE SENSOR: Non-contact magnetic
DISPLAY MEASUREMENTS: 125mm x 41mm x 34mm
STORAGE TEMPERATURE: -20°C to 80°C (-4°F to 176°F)
BATTERY: 3V CR2032
BATTERY LIFE: Approximately one year
EXTERNAL CURRENT SUPPLY: 12V DC
1.2 GENERAL INFORMATIONS
Backlight:
The digital speedometer/odometer is backlit to enable reading where there is poor
or no lighting.
