ADJUSTMENTS
36
GB

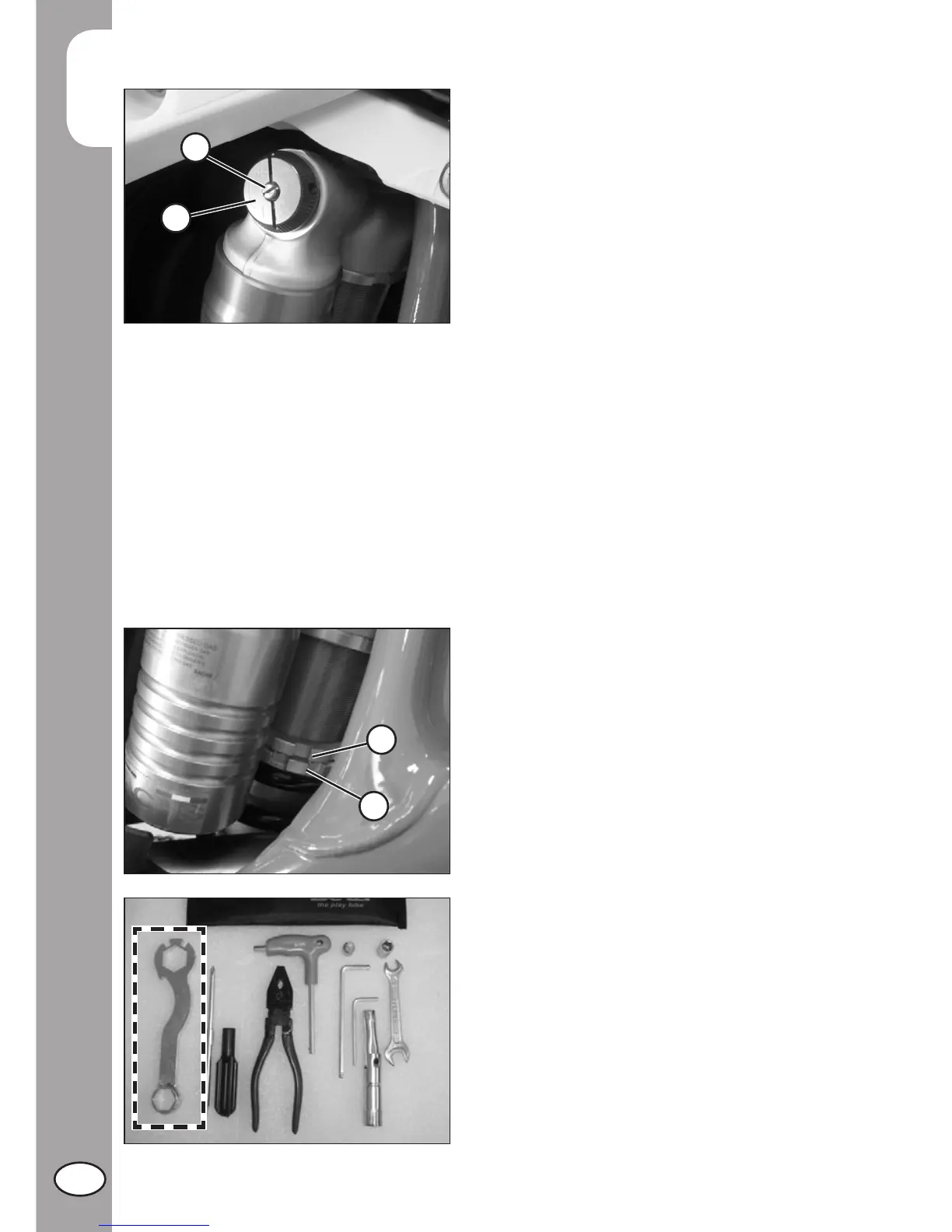

ADJUSTING THE SPRING PRELOAD
Loosen counter-ring E, rotate ring F clock-
wise to increase the spring preload (and
consequently the shock absorber preload)
or anticlockwise to decrease it. After ob-
taining the desired preload, turn counter-
ring E until it stops against adjusting ring F.
For standard setting, refer to page 12.
NOTE: for the handling of ring nuts use the
specific wrench provided in the standard
tool kit shown in the figure.
ADJUSTING THE HYDRAULIC
COMPRESSION DAMPER (HIGH
AND LOW SPEEDS)
Adjustment for low compression speed:
•Using a screwdriver, loosen screw C
by turning it clockwise to increase the
hydraulic compression damper.
For standard setting, refer to
page 12.
Adjustment for high compression speed:
•Turn knob D anticlockwise to decrease the
hydraulic compression damper.
For standard setting, refer to
page 12.
WARNING:
Starting from the standard position, turn
the knob anticlockwise (with a closing ac-
tion), the center screw will have an integral
movement, then will rotate with the knob.
For standard setting, refer to
page 12.
