OIL FORK
The procedure for changing the oil in the
forks is provided only for information.
We recommend having the operation
performed by a BETAMOTOR authorized
workshop.

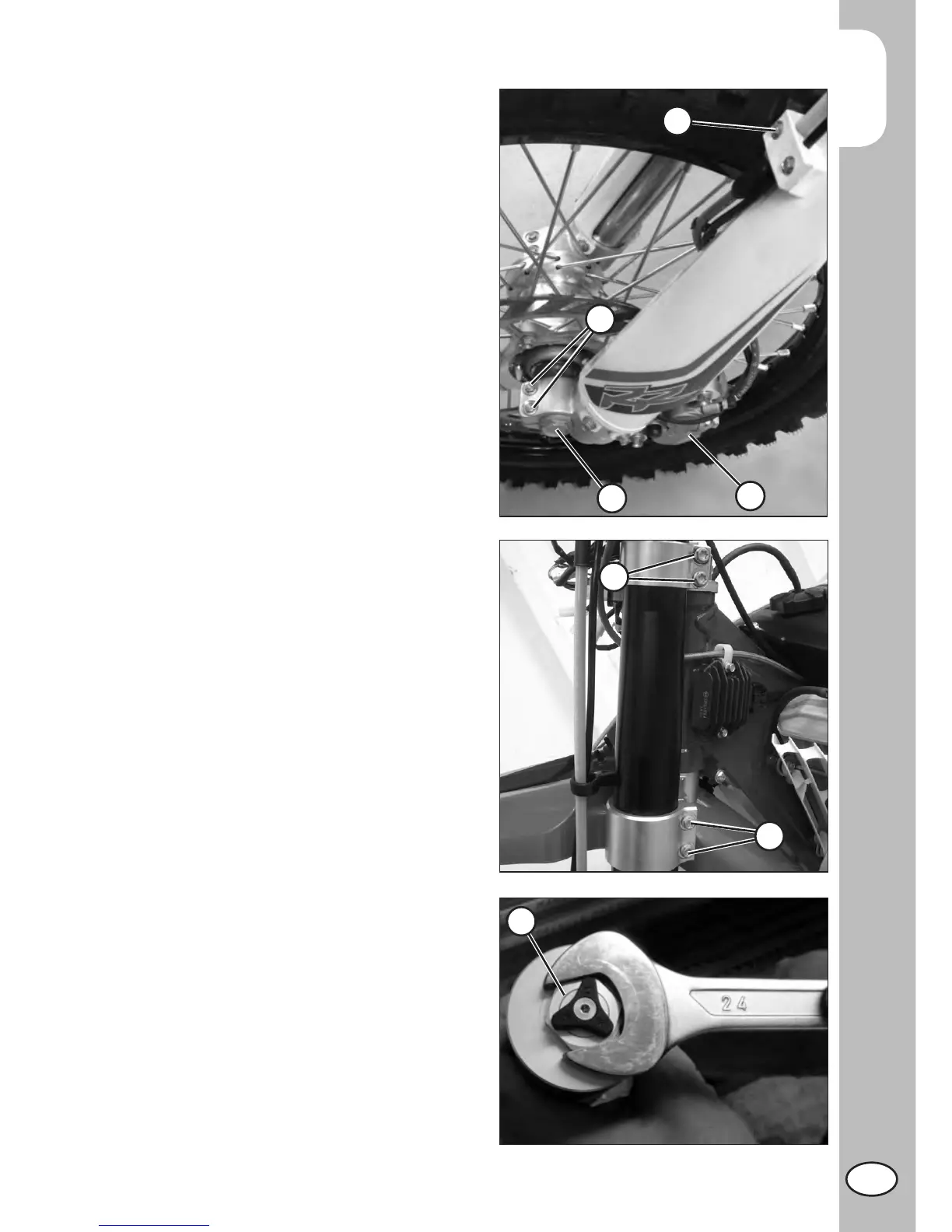

REMOVING LEGS
To replace, proceed as follows:
•Position the vehicle on the central bike
stand.
•Remove the cable gland U-bolt 1.
•Remove the brake caliper 2.
•
Remove cap 3, loosen the screws 4, slide
the wheel pin out and remove the front
wheel.
• Loosen shaft lock screws 5 and take off
the slider.
OIL REPLACEMENT
• Place the legs vertically with cap 1 facing
upwards. Loosen the upper cap 1.
