ADJUSTMENTS
34
GB
Apply the handlebar.
Apply the top u-bolt.
Refit the screws 6. Tighten to the torque
indicated.
6
25Nm

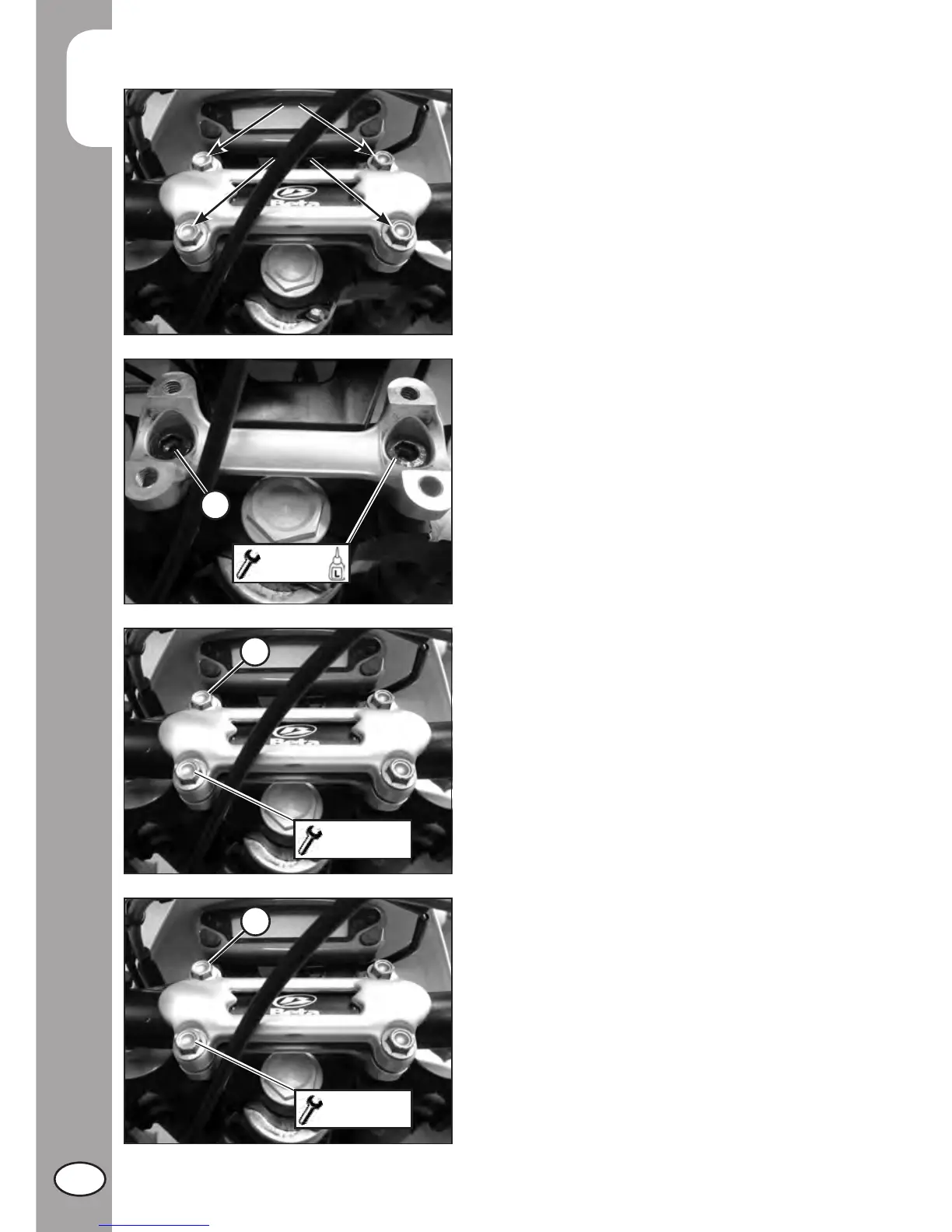

ADJUSTMENT OF THE
HANDLEBAR POSITION
The handlebar can be adjusted by rotating
it back and forth.
To adjust the handlebar loosen screws 1.
Position the handlebar according to re-
quirements.
Tighten to the torque indicated.
1
25Nm
Remove the screws 5.
NOTE: Before removing the screws 5 heat
the area with a hairdryer of the type used
by coachbuilders.
Position the U-bolt as required.
At the end refit the screws 5 after the ap-
plication of thread lock fluid and tighten
to the torque indicated.
40Nm
5
To adjust the position of the u-bolt remove
the screws shown in the figure.
Remove the handlebar.
