Technical data
3-4

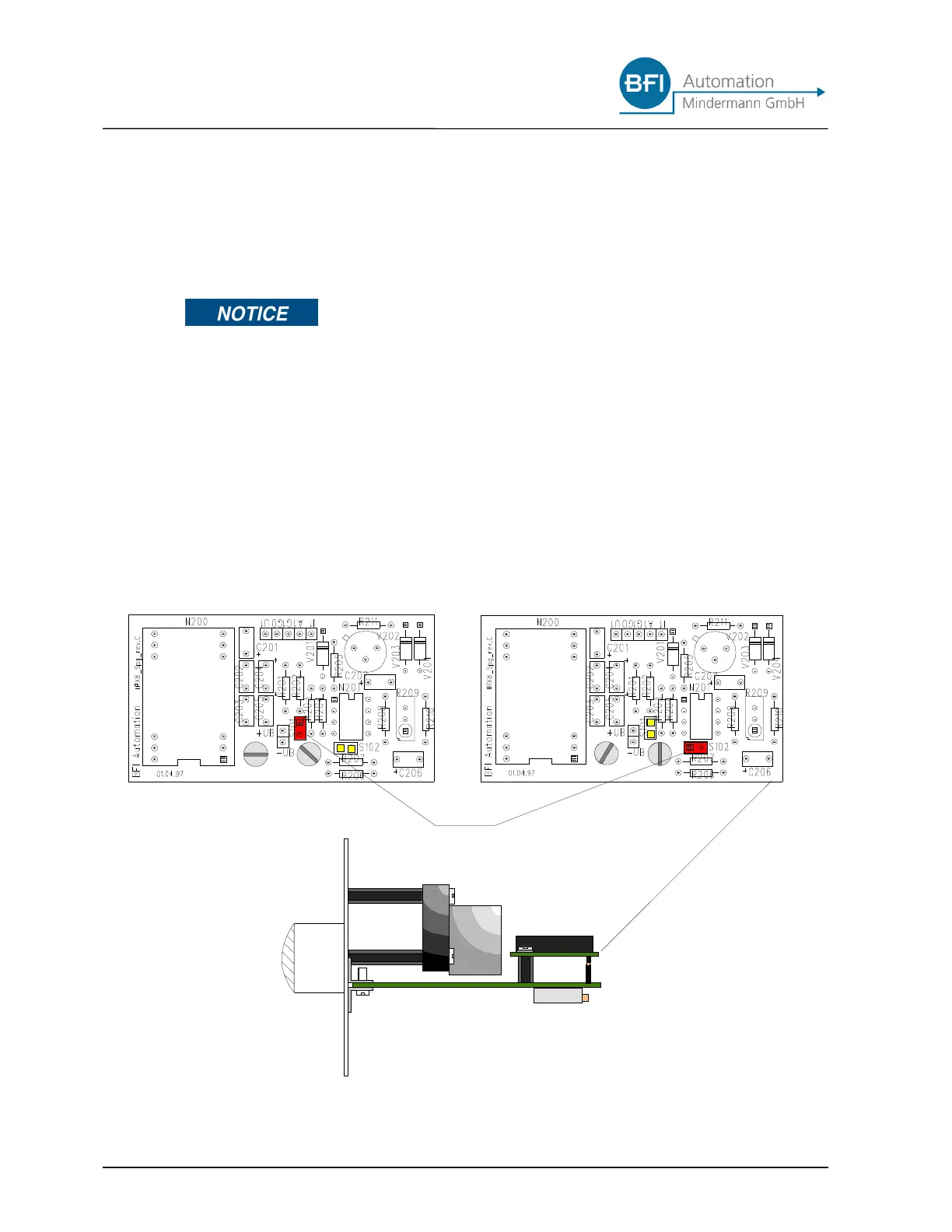

0-20 mA 4-20mA
Jumper
3.5 Setting elements
3.5.1 Sensitivity potentiometer
The gain of the compact flame controller is adjusted with
a potentiometer. The adjustment can be done during op-
erating.The sensitivity potentiometer can be found on the
back of the housing.
To the potentiometer applies: Increase sensitivity by turn-
ing clockwise!
The potentionmeter can be set in 24 full turns from 0 to
100 % for standard housings and 10 full turns for Ex-proof
housings.
Factory setting: 100% by CFC200UV, UV1 and IR
50% by CFC200IR3
3.5.2 Select the current output
