Transport, Installation and Connection
4-4
4.9 Installation
All installation and connection work may be carried out by
qualified and approved specialist staff only ! The legal
regulations as well as adjustment instructions of the plant
operator have to be observed!
2
4 53
1

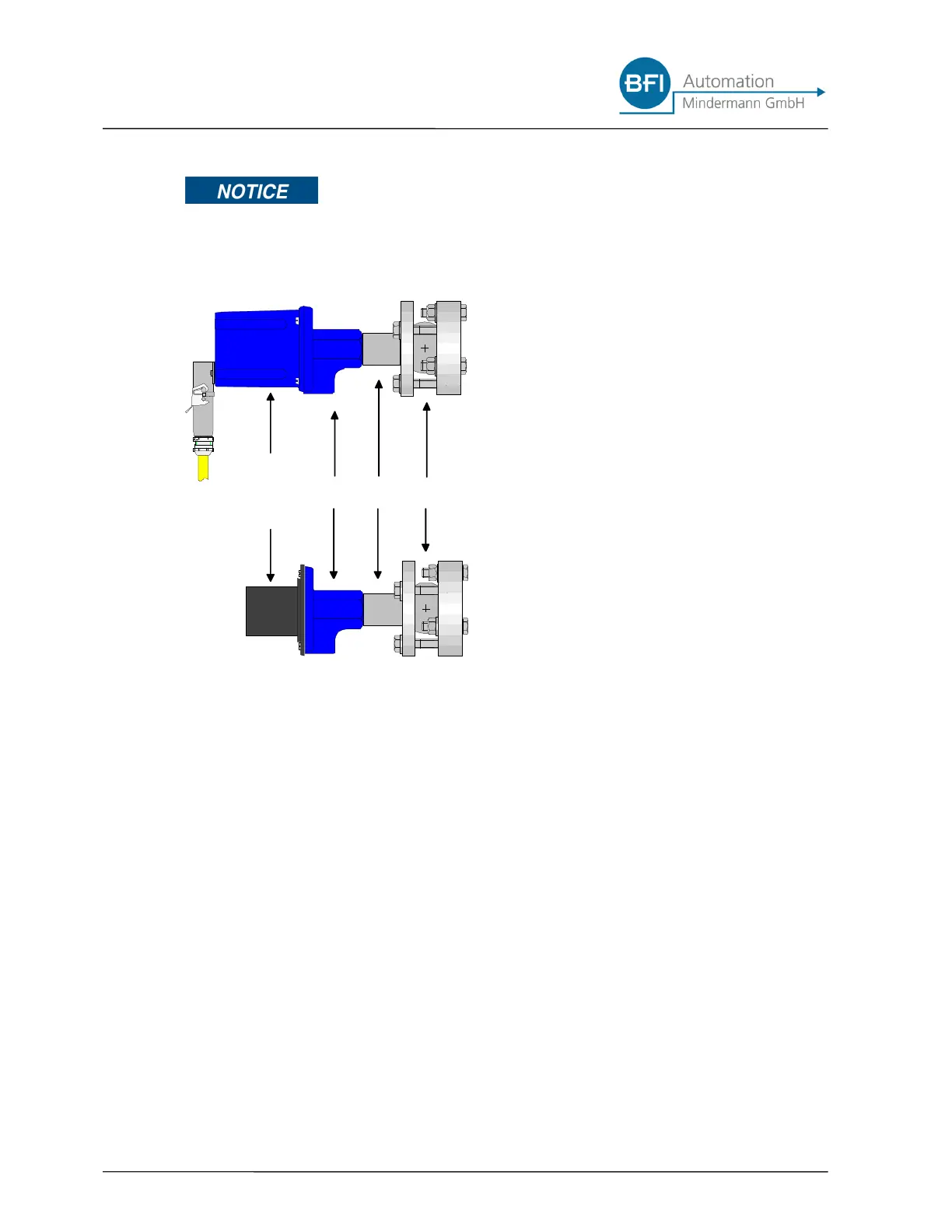

1 Compact Flame Controller
2 Optical alignment device
3 Purge air flange
4 Heating insulator
5 Swivel mount
The mounting flange has slots for easy installation of the
compact flame controller housing. Tighten all four M5
bolts.
The sight tube connection has a G1" internal pipe thread.
