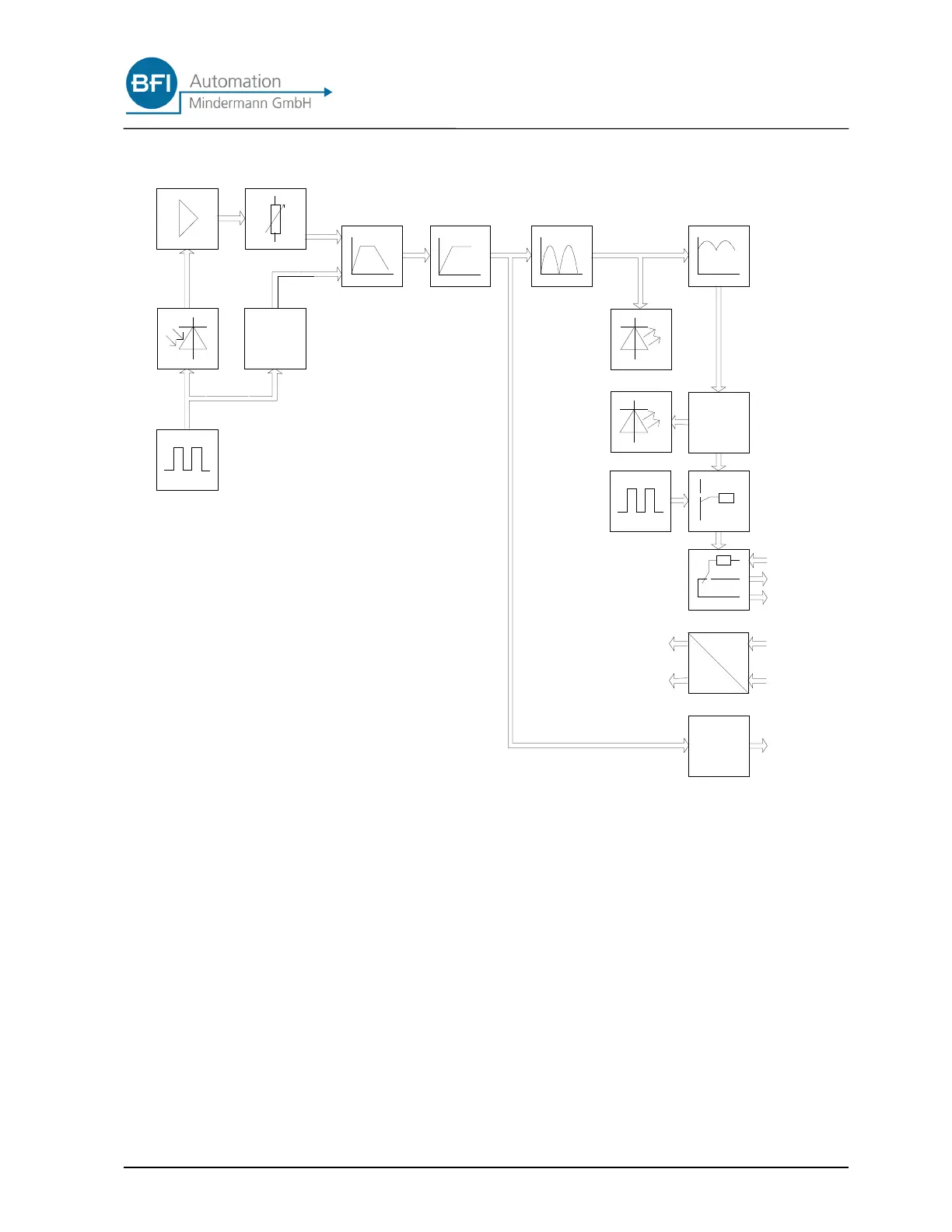

3.6 Block diagram CFC200
A Electronical shutter J LED flame intensity (green)
B Sensor K LED flame relay (yellow)
C LTD (Long time delay) L Monitor channel
D Preamplifier M Window generator
E Sensitivity potentiometer N Relay / safety circuit
F Band pass filter O Relay output
G High pass filter P Galvanic isolation
H
Rectifier
Q
Current output
I Smoothing 1-6 Pinning of the special cable
