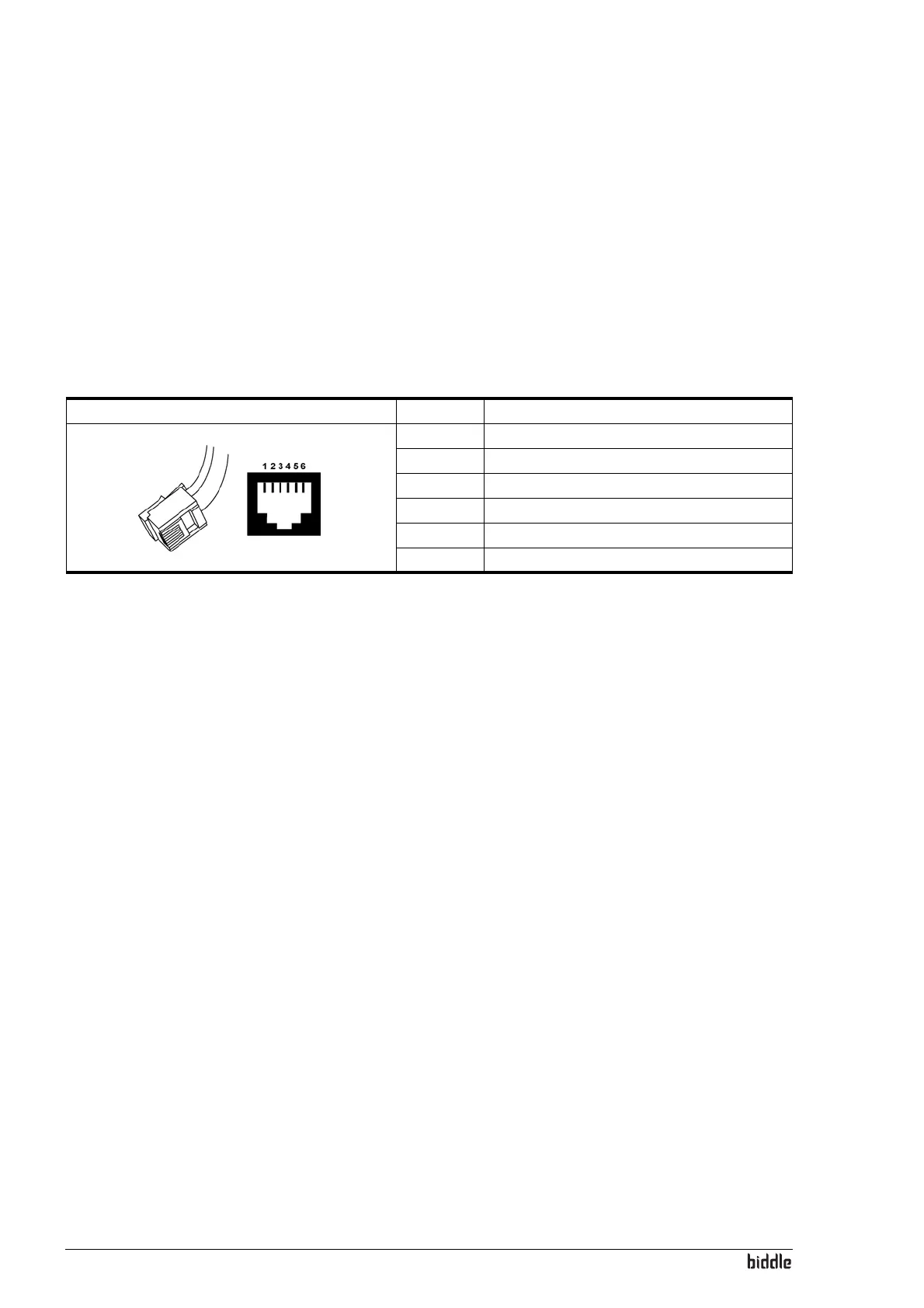

7.9 Configuration of the Biddle control cable
The control cable for Biddle units is different from standard
modular telephone cables.
The plugs are of the RJ-11 type but the sockets are ‘straight’:
At both ends of the cable, the core is connected to the same
pin.
Colour coding of Biddle cables
Pin Colour
1 (not used)
2black
3red
4green
5 yellow
6 (not used)
