2.5.3 Connect the unit
1. Connect the unit to the central heating
system.
2. Vent the heat exchanger.
3. Check the connections for leaks.
2.5.4 Connecting the discharge temperature control
(ac
cessory)

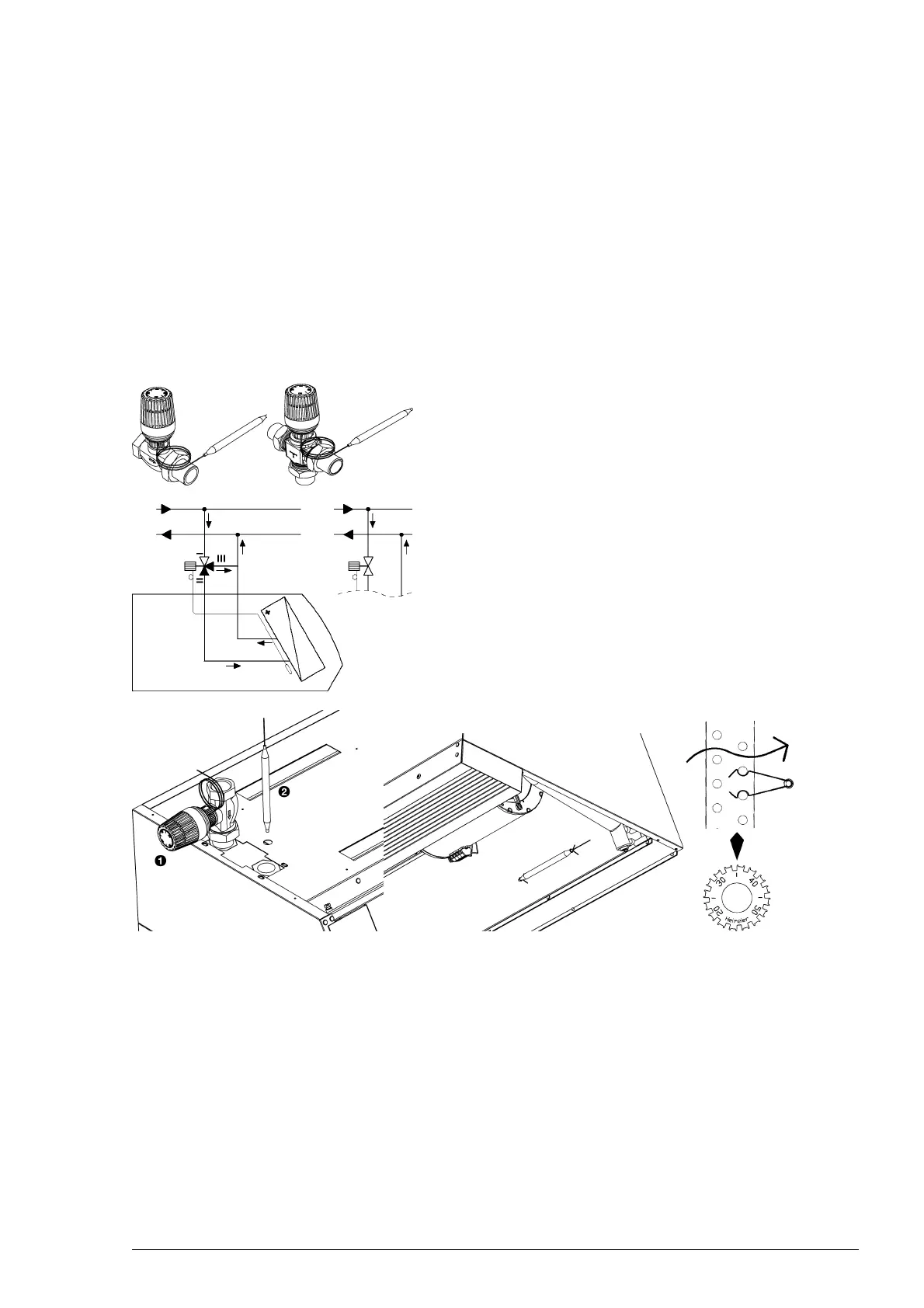

The unit can be equipped with an optional discharge tempera-
ture control.
1. Remove the inspection panel.
2. Connect valve 1 to the unit.
3. Install capillary sensor 2 in the unit.
4. Fasten the sensor to the heatin
g element using the clips
supplied.
5. Replace the inspection panel.
6. Set the discharge air temperature to 35°C.
2.6 Connecting the unit to the Daikin system (CYQ and CYV)
2.6.1 Preconditions for connection to a Daikin system
• The Daikin system must always be active when the Biddle
air
curtain is active.
• A control system must be connected to the Daikin sys-
tem. This can also be a Daikin control panel that is con-
nected to the Biddle air curtain.
