INSTALLATION COMFORT AIR CURTAIN
18
Warning:
w Units of type CYV may only be connected to
a Daikin VRV system.
Units of type CYQ may only be connected to
a Daikin ERQ system.
These units are not interchangeable.
2.6.2 Connection of the control system
All models
Caution:
c Use cable with a cross-section of min. 0.75 mm².
Models with discharge width 150, 200 or 250

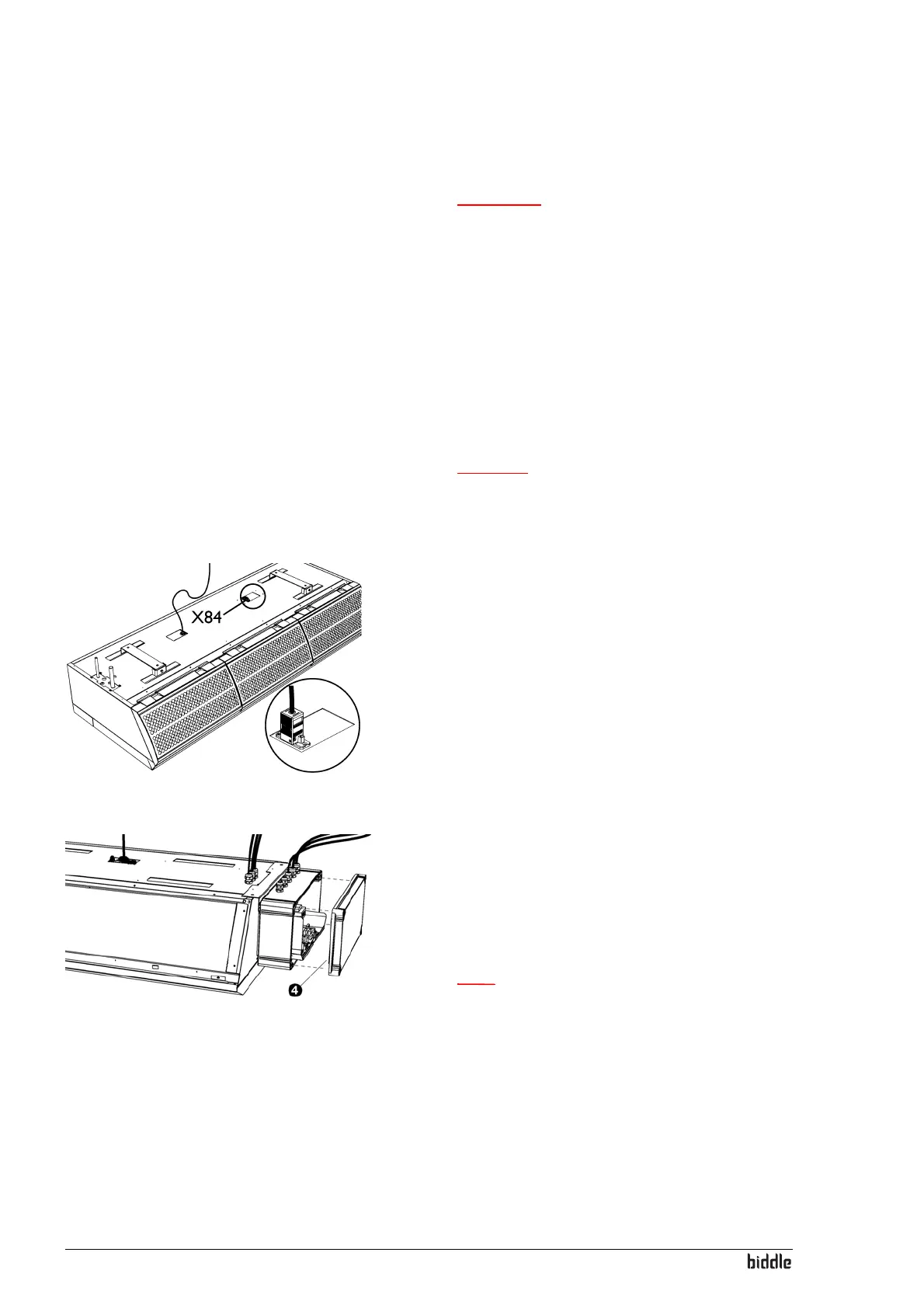

1. Connect the system control to terminal X84 on the upper
side of the air curtain:
- Connect the control cable of the outdoor unit to
F1/
F2.
- If installed
on your unit: Connect the Daikin con-
trol panel to P1/P2.
2. Install the cable sheath (su
pplied) on the terminal.
Models with discharge width 100
1. Remove the cover of the box on the side of the unit.
2. Optiona
l: Remove the box from the unit:
- Remove the bracket from the unit and the box.
- Install the box on the wall at an appropriate point.
Note:
n Do not disconnect the wiring between the box and
the unit.
