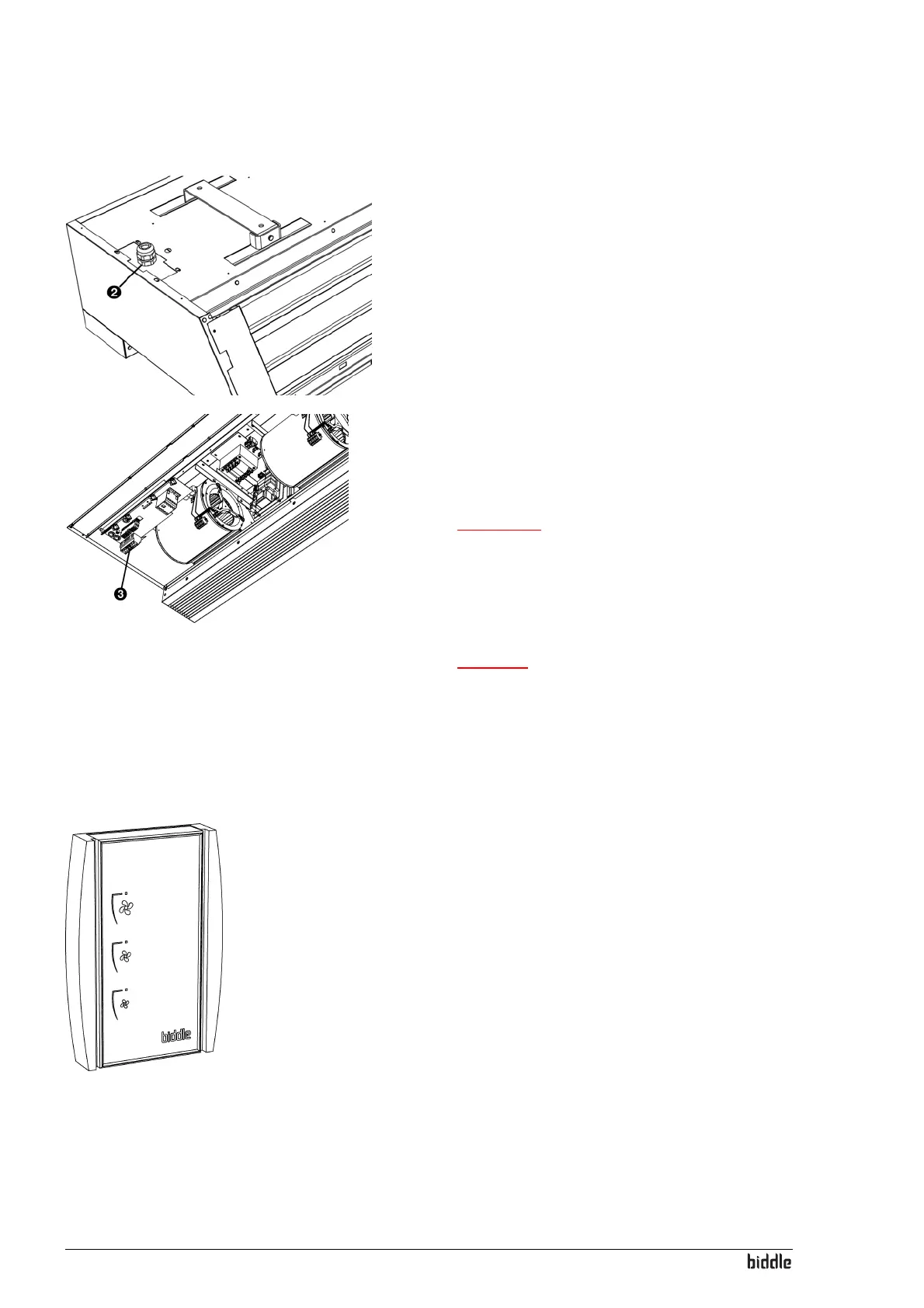

3. Fix the cable gland 2 to the unit.
4. Lead the power supply cable through the cable gland.
5. Connect the cable to the terminal 3 in the unit according
to the wiring diagram.
6. Fit the inspection panel again and screw tight.
Warning:
w Always secure the inspection panel using
flanged bolts with milled edges: These are
needed for the earth connection.
7. Connect the power supply cable to the isolation switch.
Caution:
c Do not yet switch the mains supply on.
2.8 Installing control panel and external controls (CITY and CYV)
2.8.1 Control panel details
Positioning
• You may fix the control panel either to the wall or to a
standar
d socket.
