Biddle CITY Series - Fixing the Unit

INSTALLATION COMFORT AIR CURTAIN
14
2.4 Fixing the unit
2.4.1 Determining the location of the unit
Danger:
d Do not install the unit in a vertical position.
• Make sure that the structure from which the unit is about
to be suspended can bear the weight of the unit. The
weight is specified on the type plate.

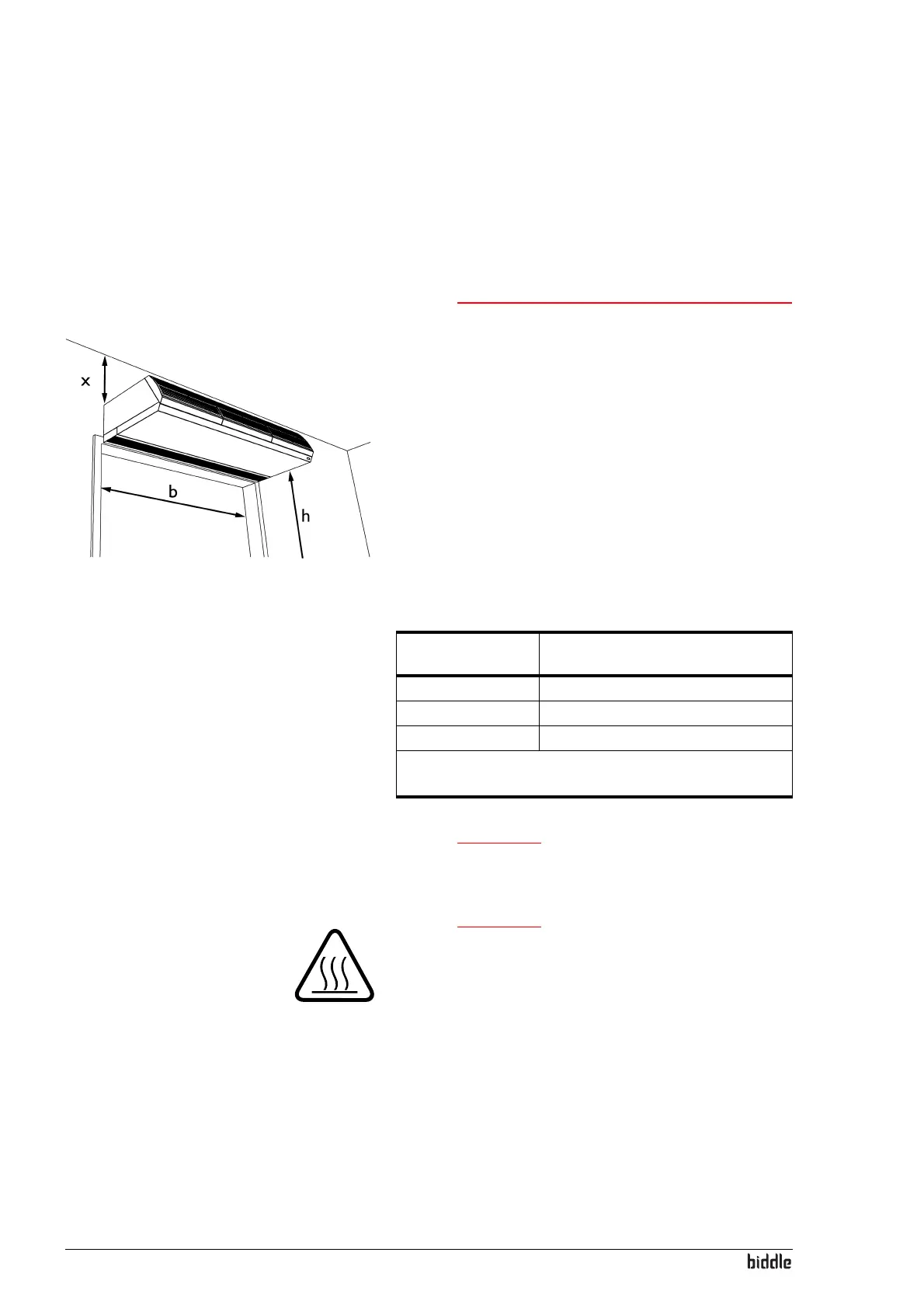

• Note the following dimensions:
- The unit must be at least as wide as the doorway
(dimension b)
.
- Position the unit as near to the doorway as possible.
- The maximum mounting height of th
e unit (dimension
h, measured from the floor to the discharge grille)
depends on the unit type.
Installation height of unit
TYPE
MAXIMUM INSTALLATION
HEIGHT
CITY S 2.3 m
CITY M 2.5 m
CITY L 3.0 m
These heights apply only under normal circumstances. If in
do
ubt, ask Biddle for advice on the correct height.
Warning:
w The minimum mounting height (dimension h)
is 1.8 m.
Warning:
w The top of the unit may get hot. Mount the
unit with a minimum clearance of 25 mm
from the ceiling (dimension x).
See also:
1.3.4 Type plate 8
