INTRODUCTION COMFORT AIR CURTAIN
8

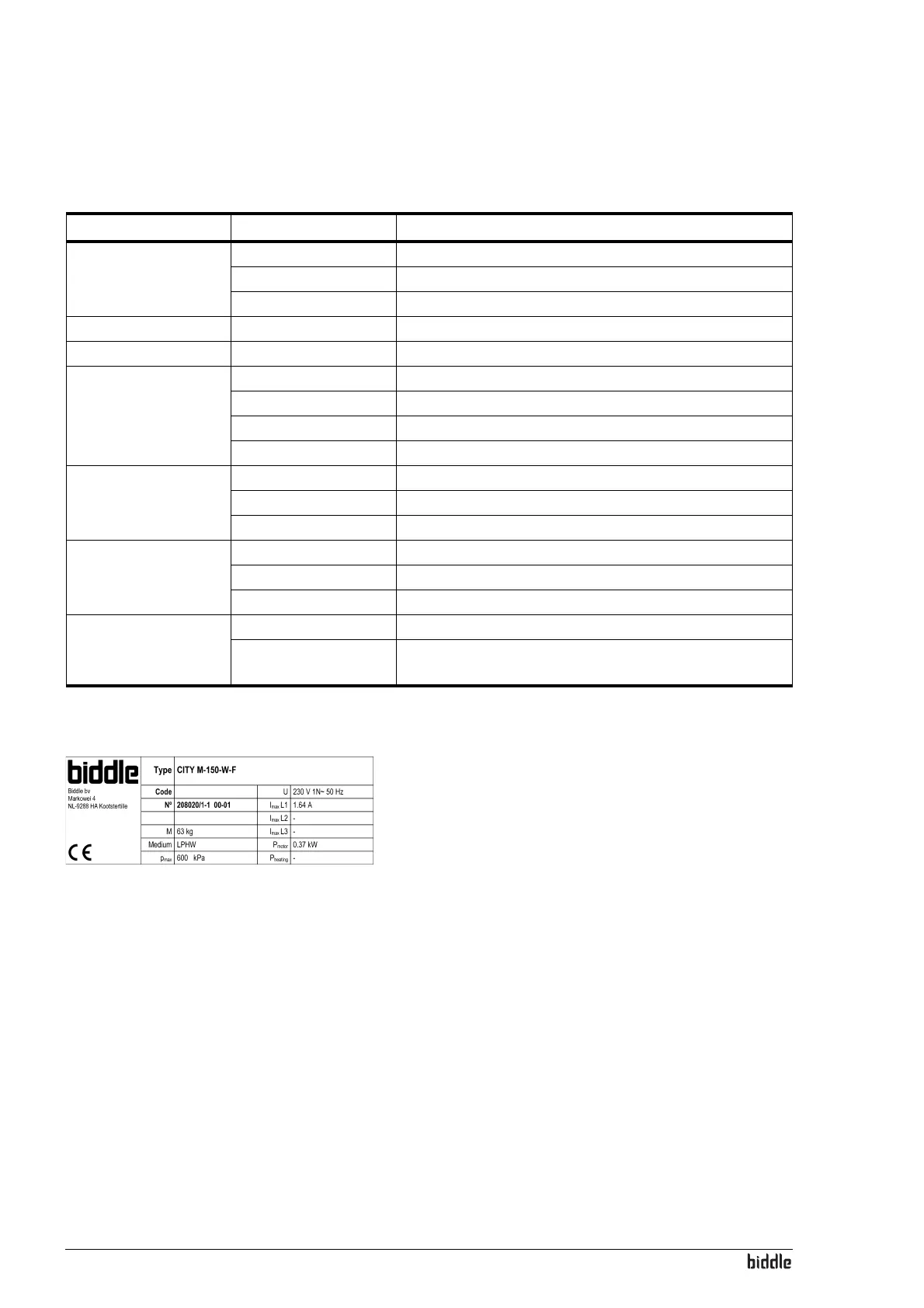

Explanation of the type code
1.3.4 Type plate
The type plate is located on the front left of the unit.
This manual refers to the following data on the type plate:
• Ty
pe: Complete type code of the unit
• M: W
eight of the unit
• M
edium: Heating medium
• Capacity index: D
aikin capacity index
• P
max:
Maximum permissible working pressure of the hot
water circuit (at 230ºF / 110 °C).
• U, I
max
, P
motor
and P
heating
: Maximum load on the electrical
system by the unit
1.3.5 Field of application
The comfort air curtain is predominantly used in commercial
pr
emises at an ambient temperature of max. 40°C. The fol-
lowing limits must thereby be observed:
P
ART TYPE CODE DESIGNATION MEANING
Product series CITY, CYQ, CYV General designation for the series
CYV For connection to Daikin VRV system (‘multi’)
CYQ For connection to Daikin ERQ system (‘pair’)
Capacity S, M or L Small, medium or large range
Discharge width 100, 150, 200 or 250 Discharge width in cm
Heating W Water heating
E Electric heating
A Without heating
DK Heating with Daikin direct expansion system
Mounting method F Free-hanging model
R Recessed model
C Cassette model
Colour (CYQ and CYV
only)
BWhite
SAluminium
XNon-standard colour
Control panel (CYQ
and CYV only)
C Touch pad controller included
N Not included (if several units are connected in one installa-
tion)
