CITY MANUAL INSTALLATION
Versie: 5.0 (04-06-2012) 19

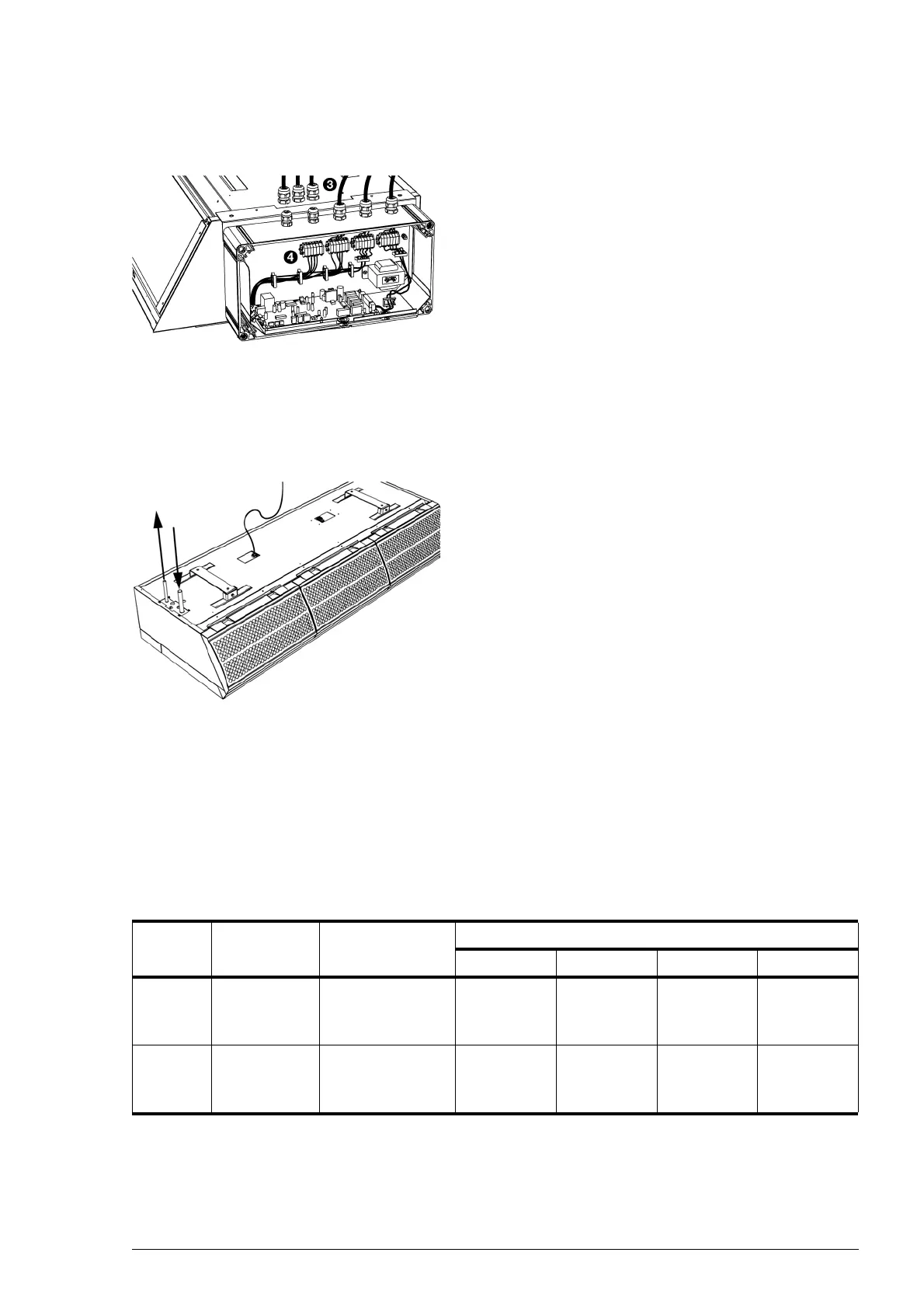

3. Lay the control cable(s) into the box, through the free
cable gland(s) 3.
4. Connect the controller of the syste
m to the free terminal
block 4:
- Connect the control cable of the outdoor unit to F1/
F2.
- If ins
talled on your unit: Connect the Daikin con-
trol panel to P1/P2.
5. Tighten the cable gland(s).
2.6.3 Connecting the cooling medium
• Install the lines according to the installation manual of the
Daikin outdoor unit.
• Solder the lines to the pipes protruding out of the upper
side of the u
nit.
2.6.4 Settings on the Daikin control panel
You can make local settings on the Daikin control panel as
described in the cor
responding installation manual.
The units described in this manual have a few additional set-
ting possibilities:
MODE
NUMBER
FIRST CODE
NUMBER
DESCRIPTION OF
THE SETTING
SECOND CODE NUMBER
(22) 3 Function of air
curtain when not
heating
unheated
(st
andard
setting)
unheated at standstill
(if 23-8
is set
to 01)
--
(23) 8 Function of air
cur
tain in defrost
mode
at standstill unheated
(standard
setting)
unheated --
01 02 03 04
