BigRep STUDIO 8 Extruder Operations
87

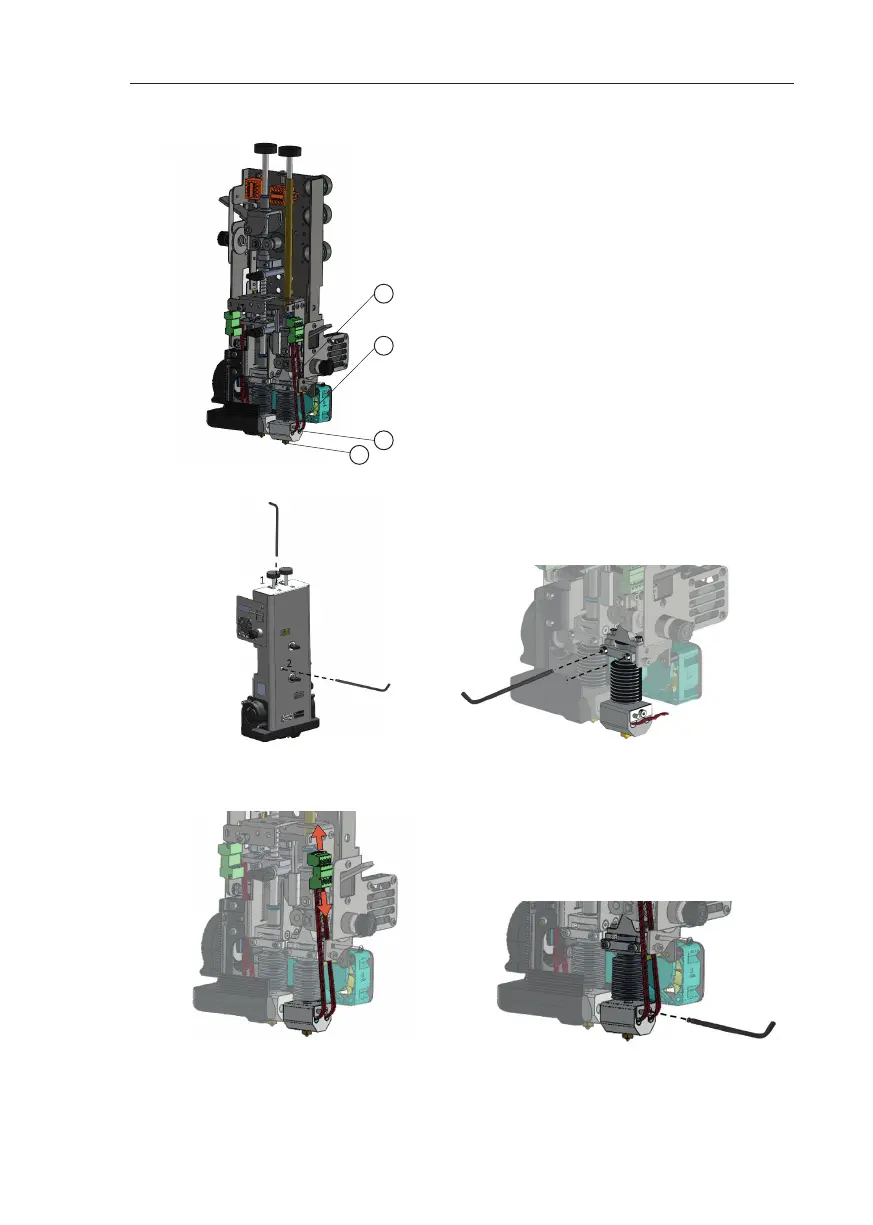

Fig. 8-8: Removing the cover Fig. 8-9: Removing the clamp
Fig. 8-11 : Sensor plate with screw Fig. 8-10 : Unplugging the connector
m
n
o
f
Fig. 8-7: Removing the cover
m Hotend fixing clamp
n Sensor plate
o Heating elements
(two per hotend)
f Nozzle
