Shenzhen Big Tree Technology Co., Ltd.
BIGTREETECH
14 / 39
3.3 Installing the Core Board

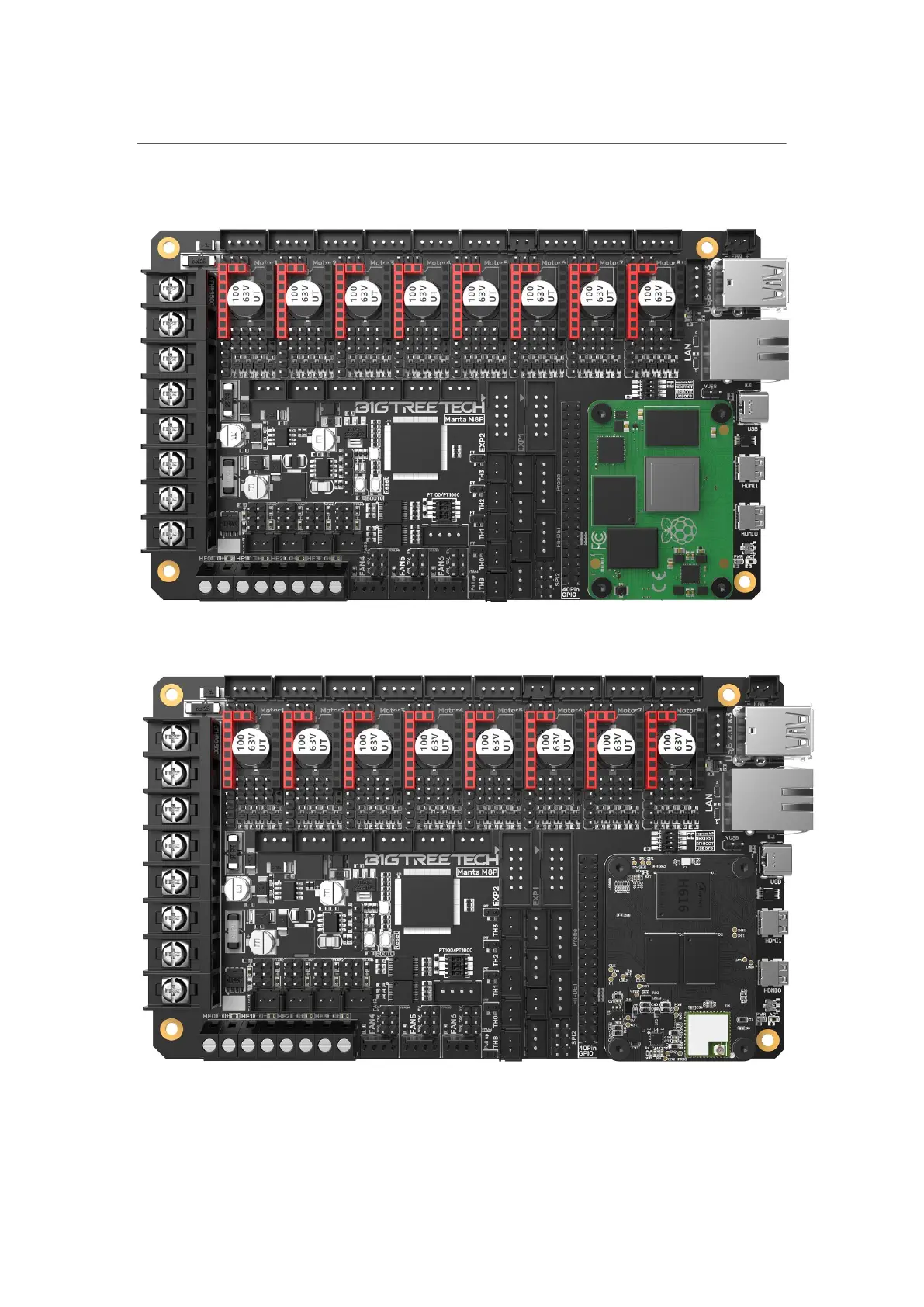

M8P+CM4: Pay attention to the direction, as shown below.
M8P+CB1: Pay attention to the direction, as shown below.
