深圳市必趣科技有限公司
BIGTREETECH
6 / 19
Connection Description

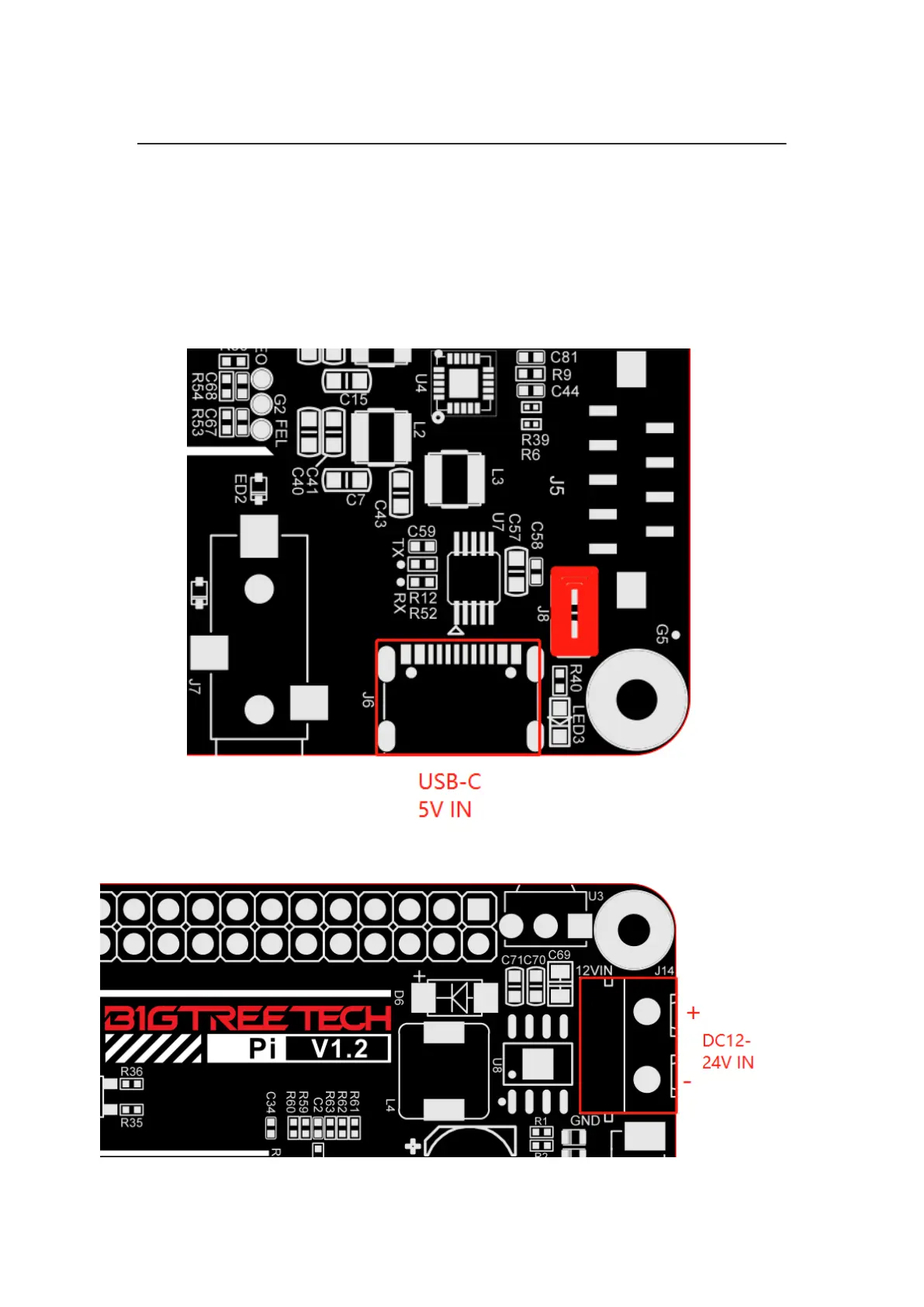

Power Supply
USB Power Supply: The SOC's UART converts USB signals through WCH340E. Connect
this port to the PC to monitor Pi startup via the serial port tool, and identify faulty parts if
there are any.
DC12-24V:
