12
III. Power on BiPAC 4700ZU/ 4700ZUL

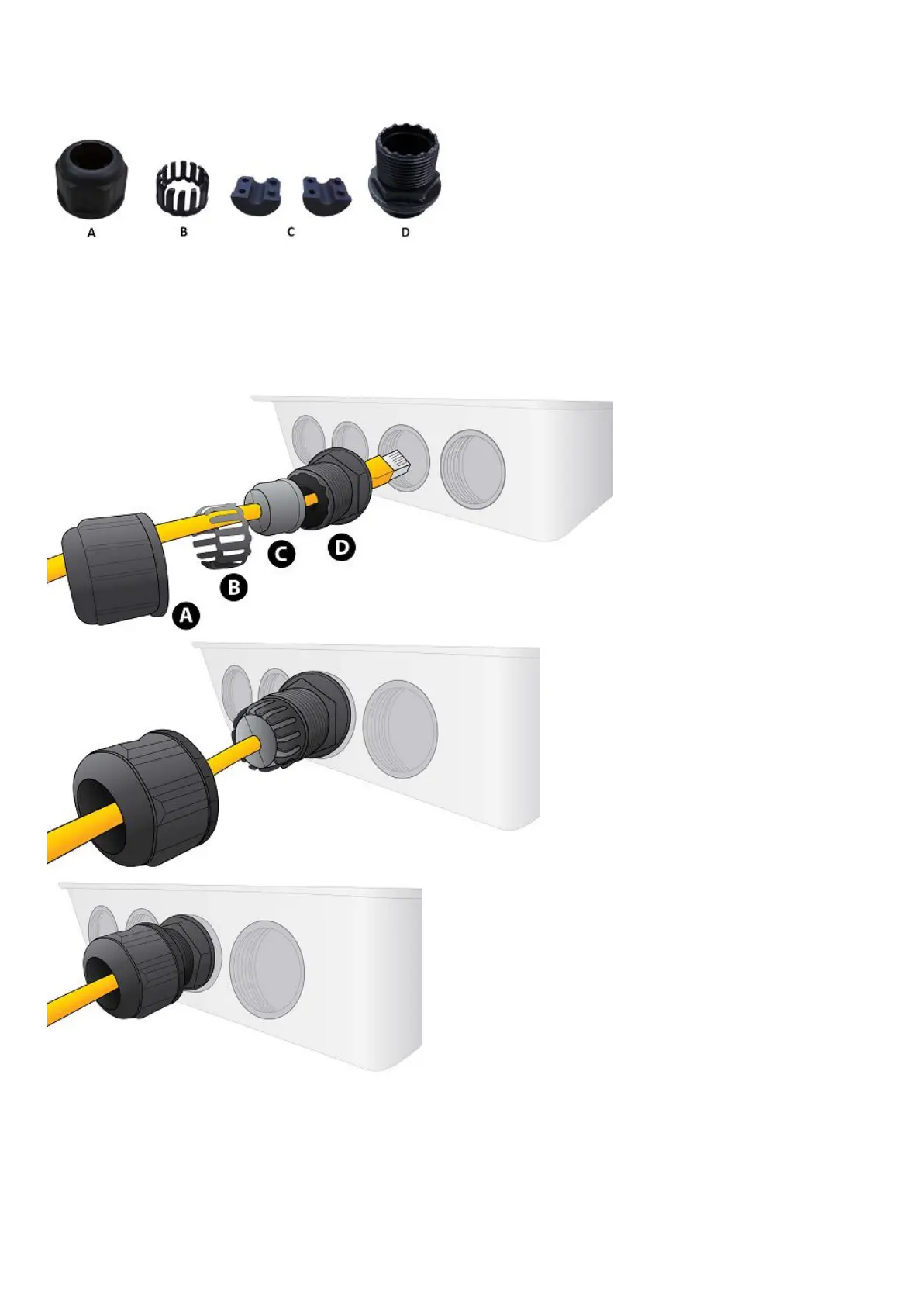

Step 1: Assemble M25 cable gland
Step 2: Unscrew the LAN (PoE) port and insert the supplied outdoor Ethernet cable (RJ-45) through
material A-D, and then connect the RJ-45 Ethernet cable into the LAN (PoE) port.
2.1: Insert C at the back end of D
2.2: clip B on C
2.3: keep B close to D
2.4: then tighten A.
Step 3: Insert the other end of outdoor Ethernet cable (RJ-45) to the supplied Gigabit PoE injector
Data+Power port. Connect another Ethernet cable (RJ-45) directly to the Data port and the other end
of cable to a switch or broadband router.
IMPORTANT: It is recommended to put the Gigabit PoE Injector on an UPS or Surge Protector. Use
the supplied grounding wire to ground your BiPAC 4700ZUL ODU is REQUIRED!
