Billion BiPAC 5200N User Manual

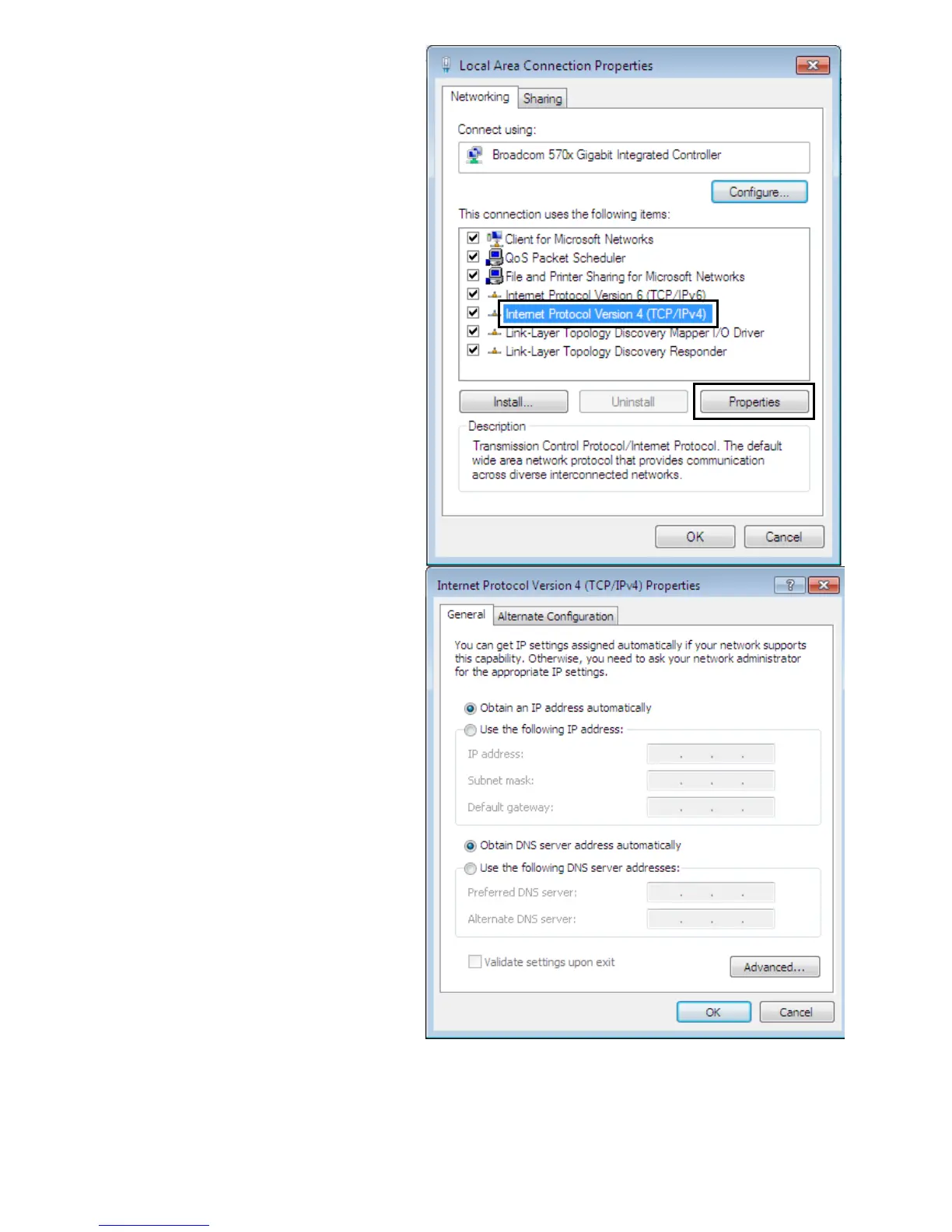

4. Select Internet Protocol Version 4
(TCP/IPv4) then click Properties.
5. In the TCP/IPv4 properties window,
select the Obtain an IP address
automatically and Obtain DNS
Server address automatically radio
buttons. Then click OK to exit the
setting.
6. Click OK again in the Local Area
Connection Properties window to
apply the new configuration.
14

Billion BiPAC 5200N Specifications

Operating Environment

operating temperature	0 - 40 ºC
storage temperature	-20 - 70 ºC
humidity	20 - 95% non-condensing

Physical Specifications

dimensions	185mm x 123.5mm x 36mm
wireless operation rate	Up to 300Mbps
frequency range	2.4 GHz – 2.484 GHz

Power

input voltage	12V DC
input current	1A
