Billion BiPAC 5200N User Manual

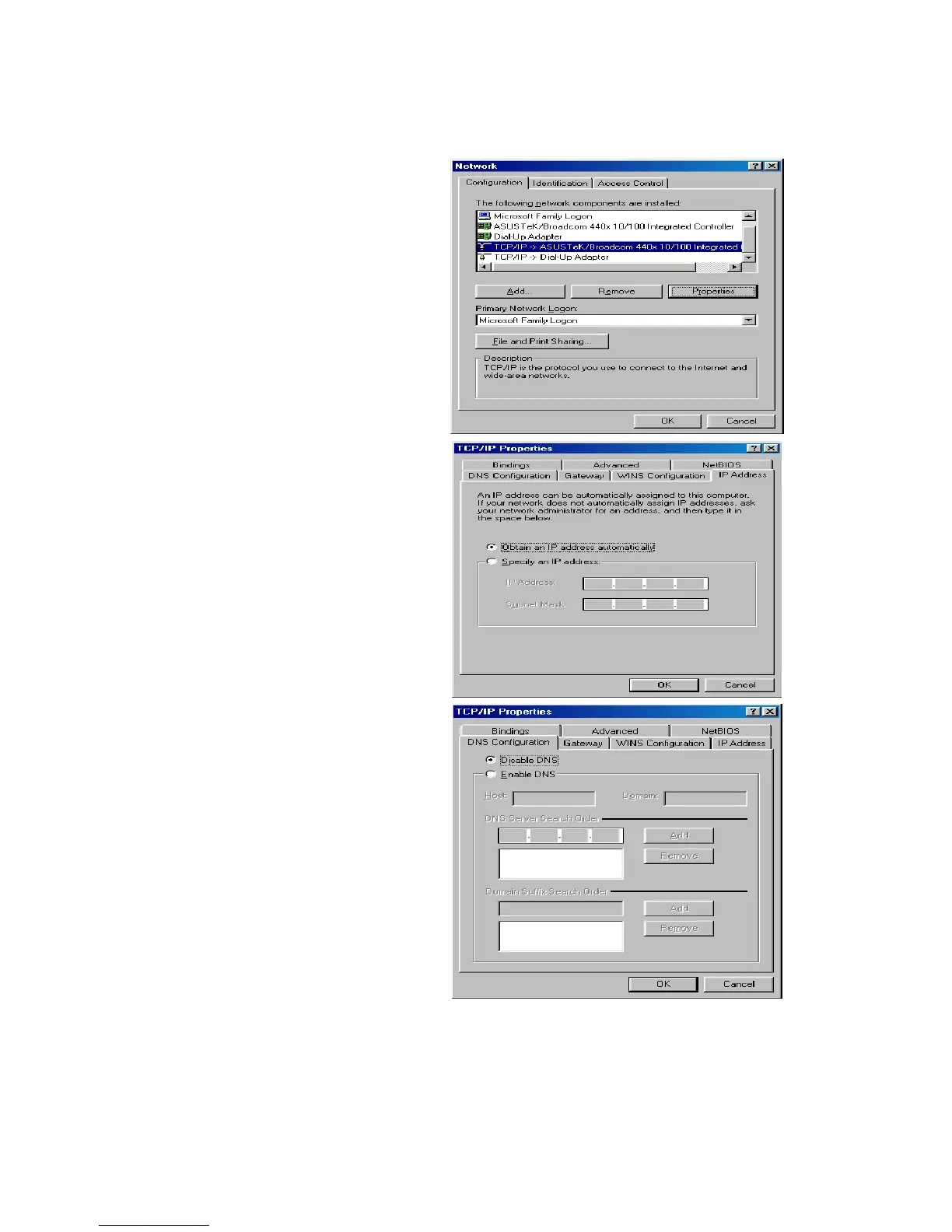

3.1.4 Configuring PC in Windows 98/Me
1. Go to Start / Settings / Control Panel.
In the Control Panel, double-click on
Network and choose the
Configuration tab.
2. Select TCP/IP ->NE2000 Compatible,
or the name of your Network Interface
Card (NIC) in your PC.
3. Select the Obtain an IP address
automatically radio button.
4. Then select the DNS Configuration
tab.
5. Select the Disable DNS radio button
and click OK to finish the configuration.
17

Billion BiPAC 5200N Specifications

Operating Environment

operating temperature	0 - 40 ºC
storage temperature	-20 - 70 ºC
humidity	20 - 95% non-condensing

Physical Specifications

dimensions	185mm x 123.5mm x 36mm
wireless operation rate	Up to 300Mbps
frequency range	2.4 GHz – 2.484 GHz

Power

input voltage	12V DC
input current	1A
