Billion BiPAC 5200N User Manual

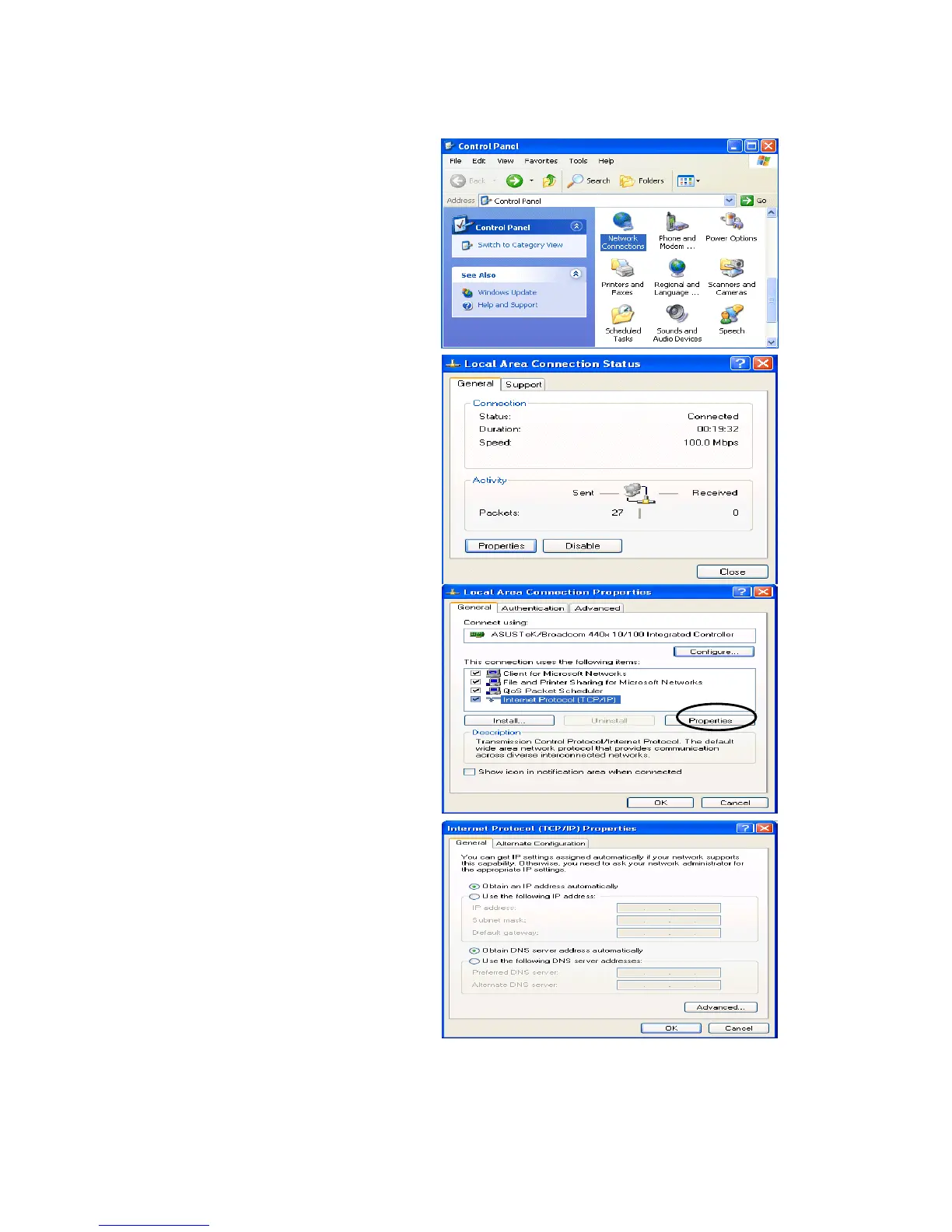

3.1.2 Configuring PC in Windows XP
1. Go to Start / Control Panel (in Classic
View). In the Control Panel, double-click
on Network Connections
2. Double-click Local Area Connection.
3. In the Local Area Connection Status
window, click Properties.
4. Select Internet Protocol (TCP/IP) and
click Properties.
5. Select the Obtain an IP address
automatically and the Obtain DNS
server address automatically radio
buttons.
6. Click OK to finish the configuration.
15

Billion BiPAC 5200N Specifications

Operating Environment

operating temperature	0 - 40 ºC
storage temperature	-20 - 70 ºC
humidity	20 - 95% non-condensing

Physical Specifications

dimensions	185mm x 123.5mm x 36mm
wireless operation rate	Up to 300Mbps
frequency range	2.4 GHz – 2.484 GHz

Power

input voltage	12V DC
input current	1A
