Billion BiPAC 5200N User Manual

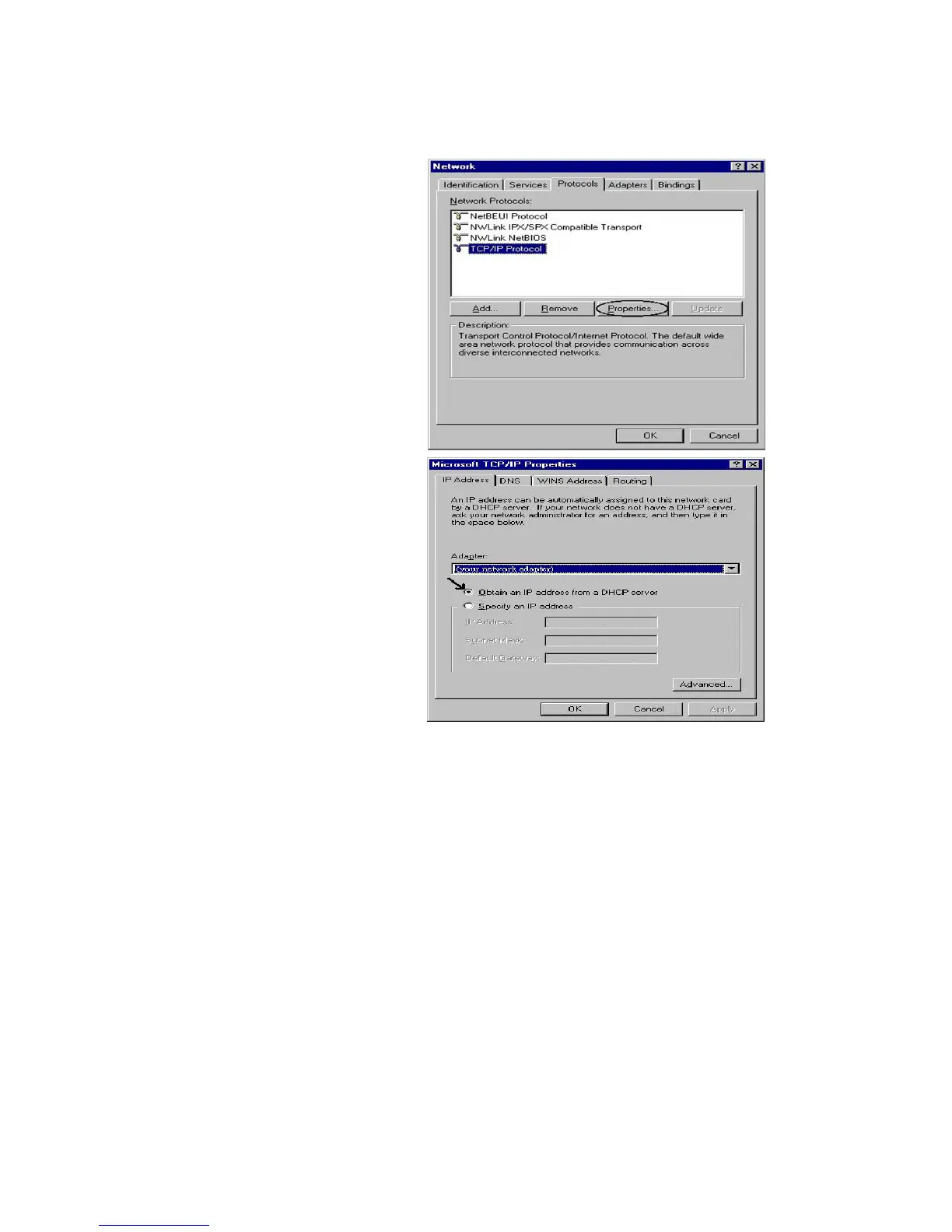

3.1.5 Configuring PC in Windows NT4.0
1. Go to Start / Settings / Control Panel.
In the Control Panel, double-click on
Network and choose the Protocols tab.
2. Select TCP/IP Protocol and click
Properties.
3. Select the Obtain an IP address from a
DHCP server radio button and click OK.
18

Billion BiPAC 5200N Specifications

Operating Environment

operating temperature	0 - 40 ºC
storage temperature	-20 - 70 ºC
humidity	20 - 95% non-condensing

Physical Specifications

dimensions	185mm x 123.5mm x 36mm
wireless operation rate	Up to 300Mbps
frequency range	2.4 GHz – 2.484 GHz

Power

input voltage	12V DC
input current	1A
