Billion BiPAC 5200N User Manual

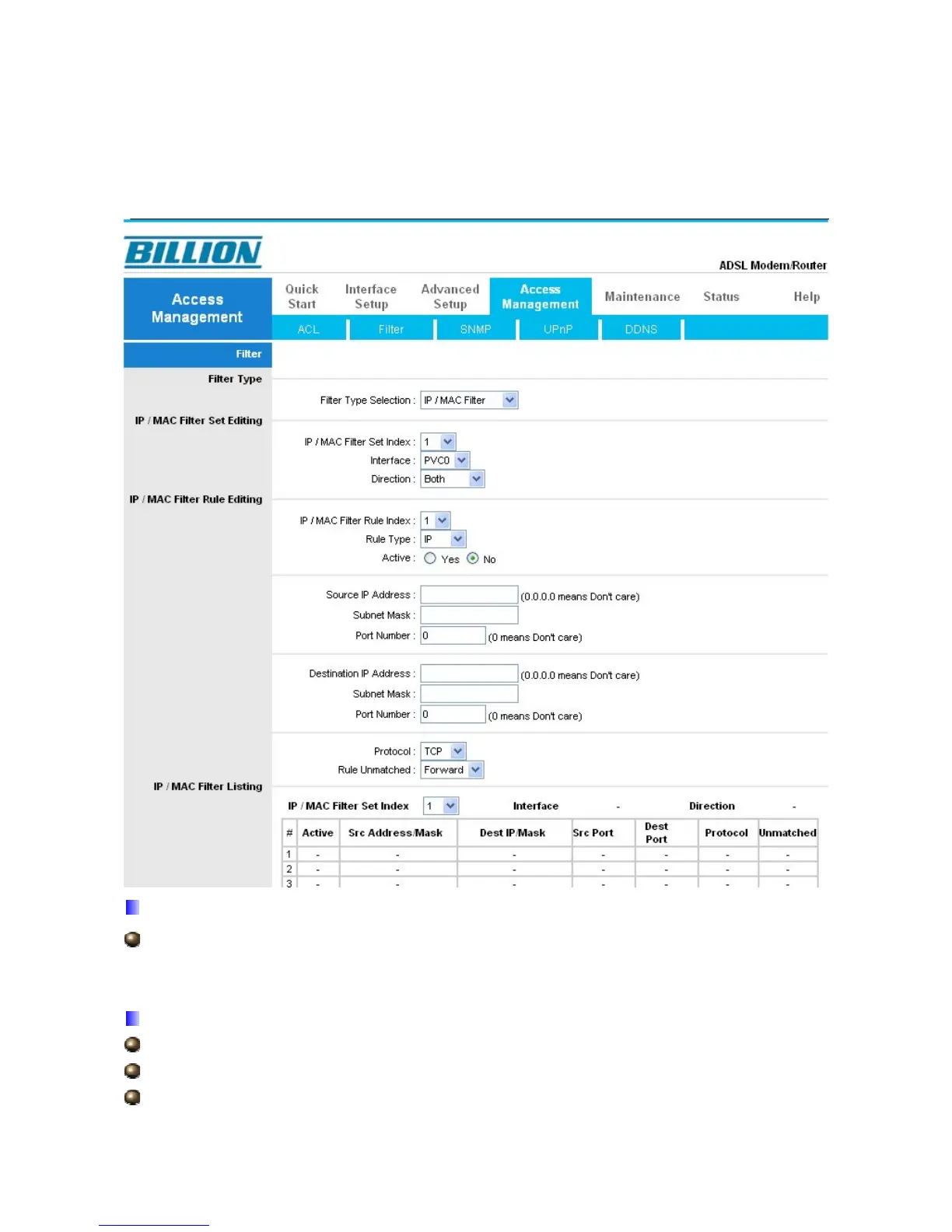

4.4.2 Filter
You can Filter the packages by IP port , MAC and Application.
Filter Type
Filter Type Selection: There are three types ”IP/MAC Filter”, ”Application Filter”, and
“URL Filter” that user can select for this connection.
IP/MAC Filter Set Editing
IP/MAC Filter Set Index: This is item number
Interface: Select which channel (PVC) to configure.
Direction: Select the access to the Internet (“Outgoing”) or from the Internet
65

Billion BiPAC 5200N Specifications

Operating Environment

operating temperature	0 - 40 ºC
storage temperature	-20 - 70 ºC
humidity	20 - 95% non-condensing

Physical Specifications

dimensions	185mm x 123.5mm x 36mm
wireless operation rate	Up to 300Mbps
frequency range	2.4 GHz – 2.484 GHz

Power

input voltage	12V DC
input current	1A
