Binder FDL 115 - Dimensions FDL 115

75 pages

Save Page as PDF

To Next Page

To Previous Page

FDL (E2.1) 05/2016 page 64/75

17.6 Dimensions FDL 115

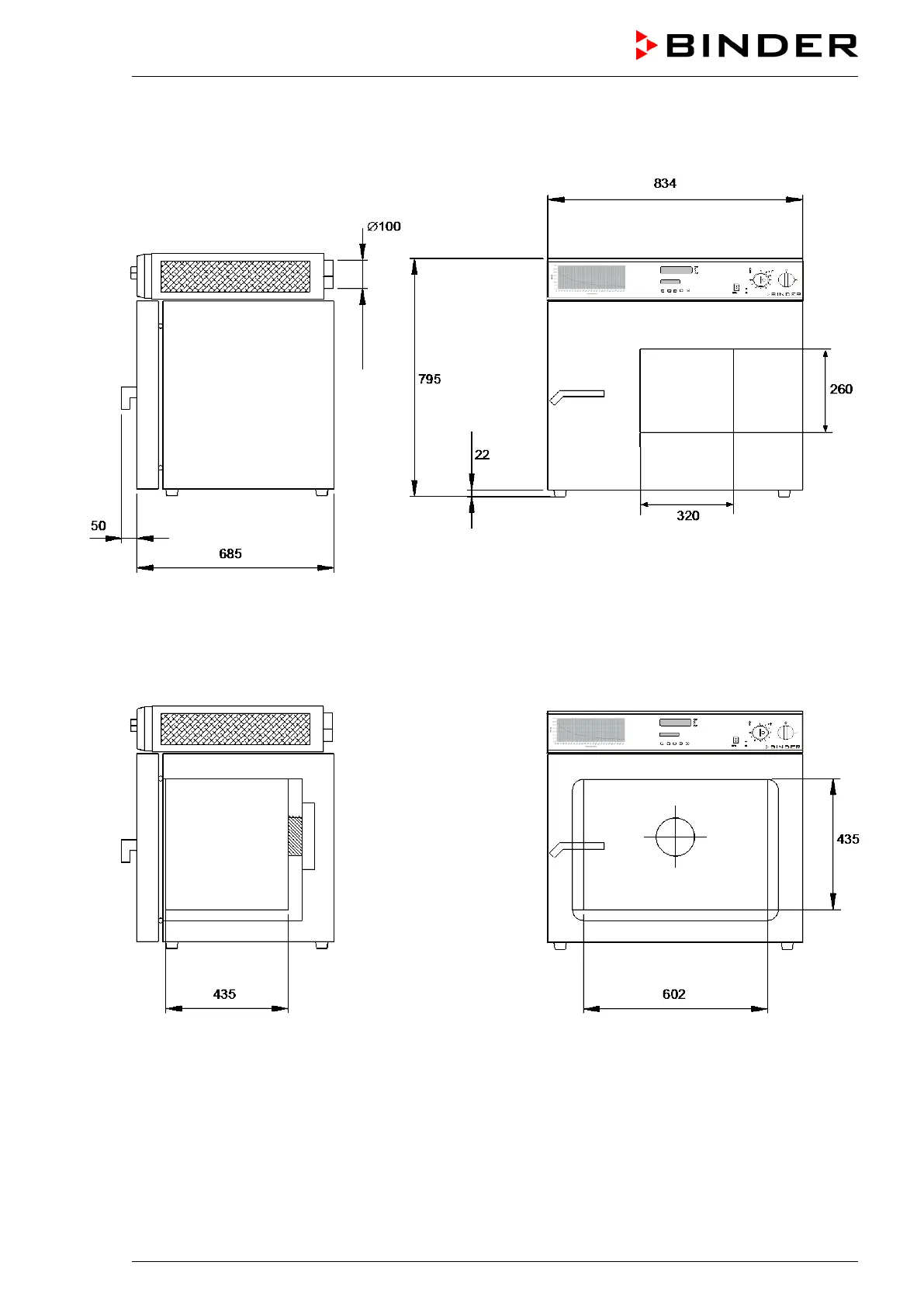

Figure 16: Dimensions FDL 115
