1.4 Type plate
The type plate sticks to the left side of the chamber, bottom right-hand.

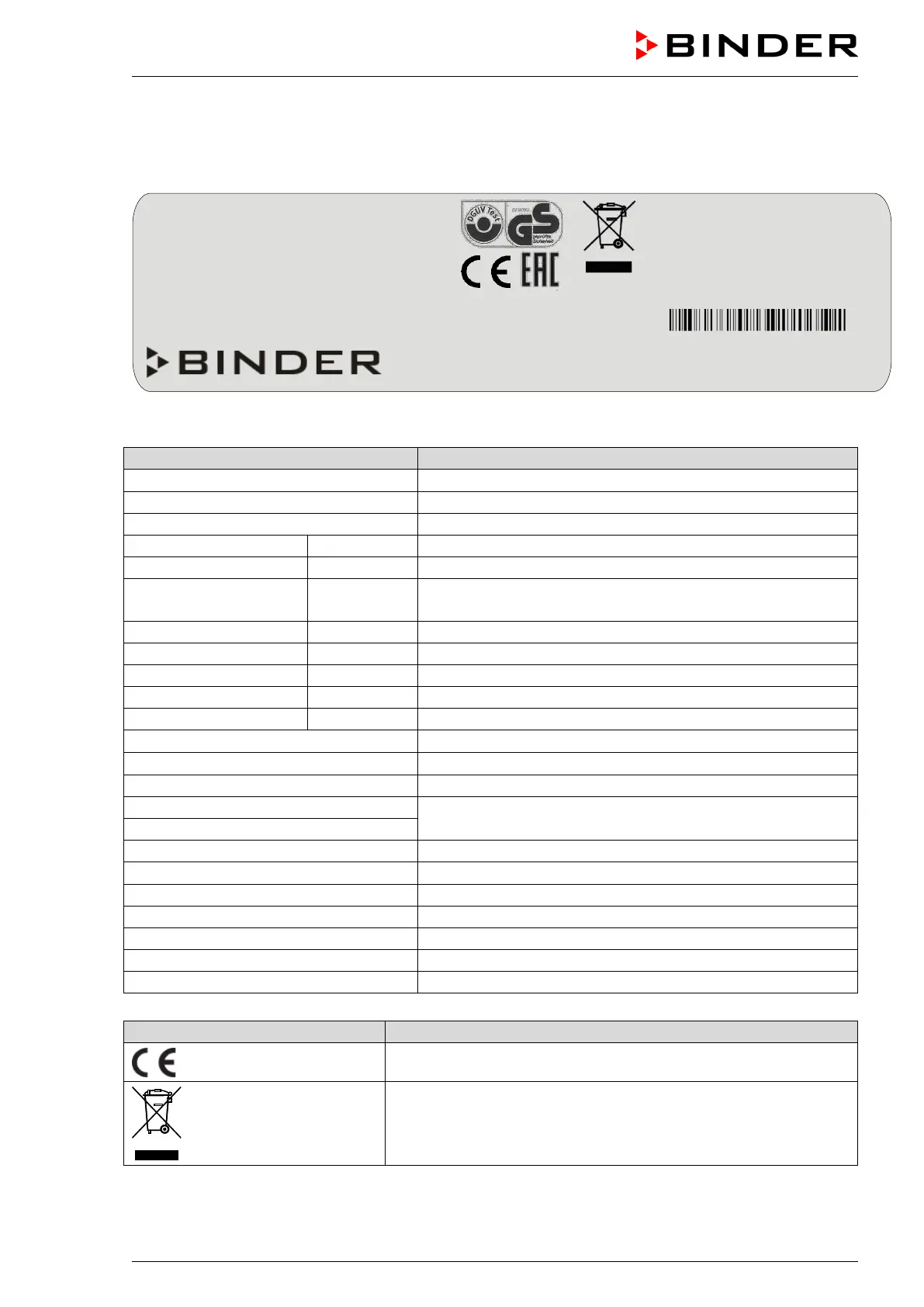

Figure 2: Type plate (example of FDL 115 regular chamber)
Indications of the type plate
Information
BINDER
Manufacturer: BINDER GmbH
FDL 115
Model
Safety Drying Oven
Chamber name
Serial No.
00-00000
Serial no. of the chamber
Built
2016
Year of construction
Nominal temperature
300 °C
572 °F
Nominal temperature
IP protection
33
Type of IP protection acc. to standard EN 60529
Temp. safety device
DIN 12880
Temperature safety device acc. to standard DIN 12880:2007
Class
2.0
Class of temperature safety device
Art. No.
9010-0292
Art. no. of the chamber
Project No.
---
Optional: Special application acc. to project no.
2,90 kW
Nominal power
230 V 1 N PE ~
Nominal voltage 230 V
±
5%, single-phase unit
13,0 A
Nominal current
230 V / 50 Hz
Nominal voltage +/- 5%
at the indicated power frequency
230 V / 60 Hz
1 N ~
Current type
Usable volume 0,115m³
Usable volume
Steam space 0,156m³
Total steam space 0
Max. solvent at nominal temp. 3,0g
Highest permissible solvent quantity at 300 °C / 572°F
Min. exhaust flow rate 24m³/h at +20 °C
Minimum exhaust flow rate at +20 °C
Max. temp. of heating surfaces +750 °C
Maximum temperature of heating surfaces +750 °C / 1382°F
Wiring diagram 55535004
Wiring diagram of FDL 115
Symbol on the type plate
Information
CE conformity marking
Electrical and electronic equipment manufactured / placed on the
market in the EC after 13 August 2005 and to be disposed of in a
separate collection according to directive 2002/96/EC on waste
electrical and electronic equipment (WEEE).
