Binder KMF-240 - Mounting the Freshwater Can

KMF (E5.2) 06/2014 page 72/99
14.7.1 Mounting the freshwater can
(1) Fixing (if required)
Hang the can with its holding device on its 4 carriers. You can install it either at the left or the right
side.
Cable connection (20)
Freshwater hose connection (21)

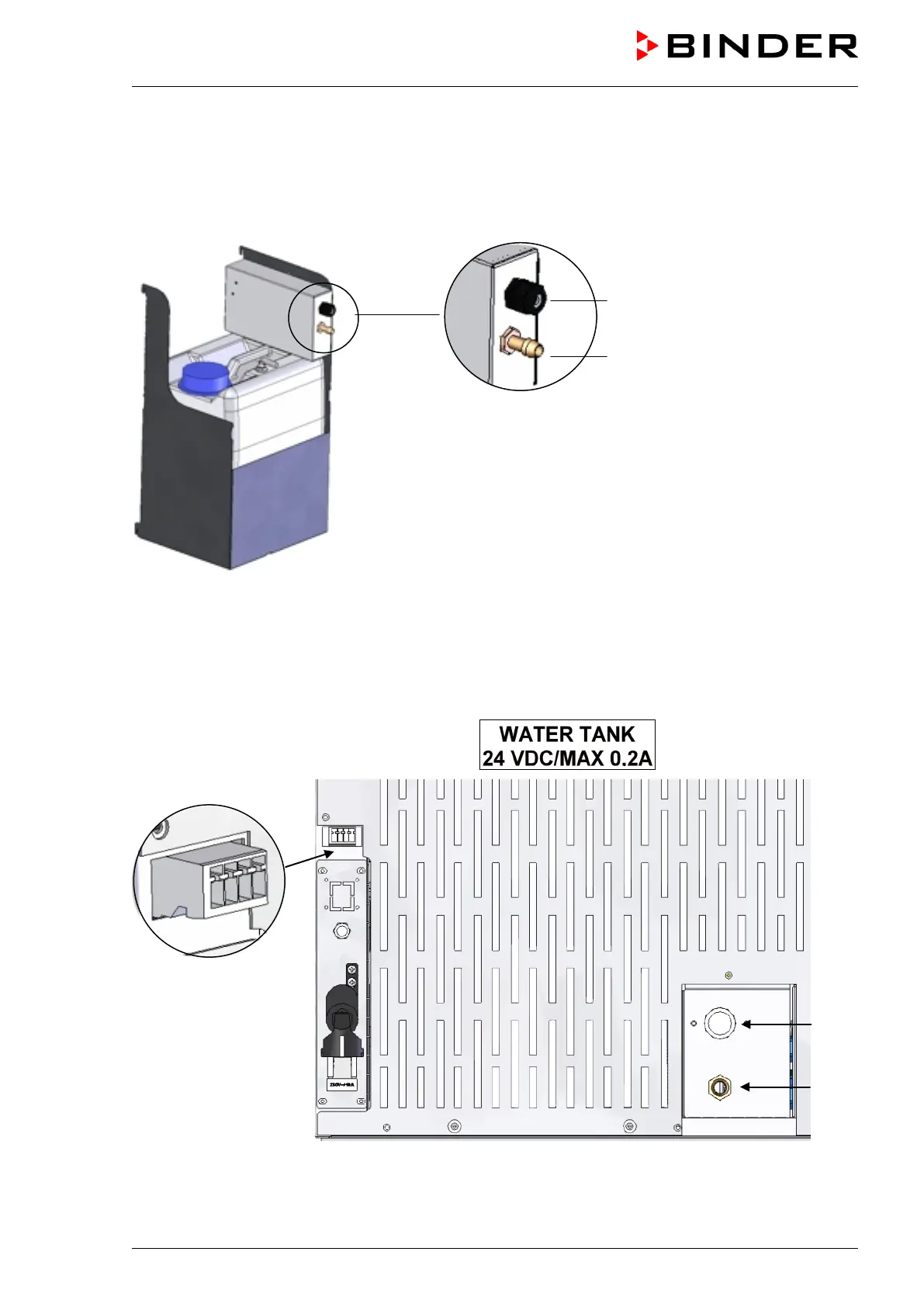

Figure 24: Freshwater can (option)
(2) Cable connections
Connect the plug of the cable to the socket (22) at the rear of the unit.
The socket (22) is marked with a sticker:
Socket (22)
(11)
(12)
Figure 25: Connections at the unit rear KMF 240
