With set-point type “Limit”, the user shall adapt the safety controller (chap. 10.2) or the tem-
perature safety device class 3.3 (option, chap. 10.3) to the highest temperature set-point value
of the program actually used. Check the safety device for each temperature program and
change it if necessary. Set the safety controller set-point or the set-point of the temperature
safety device class 3.3 (option) by approx. 2 °C to 5 °C above the controller temperature set-
point.
Recommended setting: Set-point type “Offset” with set-point 2 °C.
Performance after completing the program:
The controller changes to Idle Mode. Heating, refrigeration, and humidification are inactive; the chamber
approximates ambient temperature. The fan turns at 50% rate (factory setting).

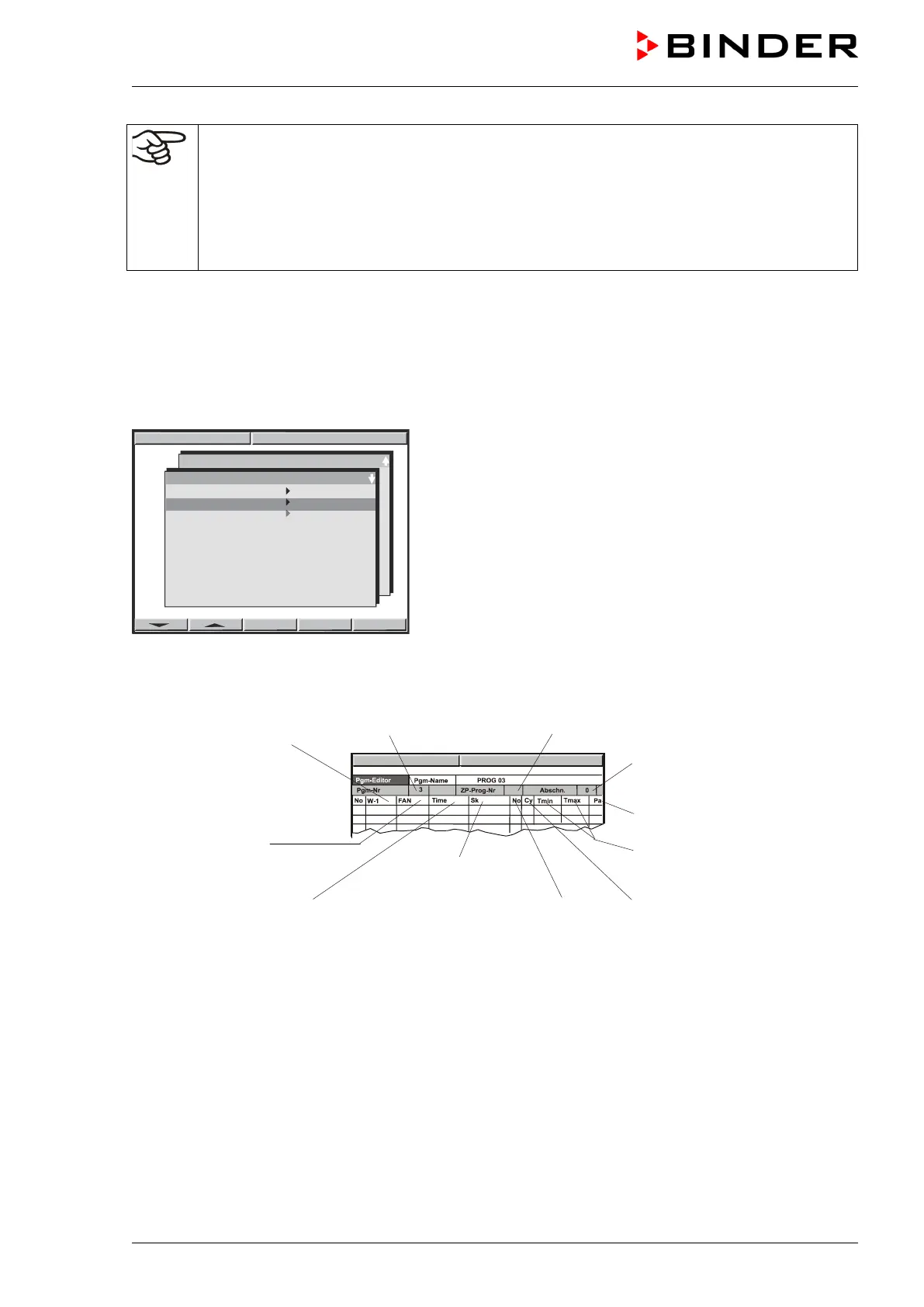

9.3 Entry of humidity values
08:43:59 15.12.13
Prog. Select.
Prog 1 PROG 01
Prog 2 PROG 02
Prog 3 PROG 03
Prog 4 PROG 04
Prog 5 PROG 05
Prog 6 PROG 06
Prog 7 PROG 07
Prog 8 PROG 08
Prog 9 PROG 09
Prog 10 PROG 10
Prog 11 PROG 11
Prog 1 PROG 01
TP- Program 2
TP-
Program 3
TP- Program 1
Select the second subroutine “TP-Program 2” and confirm by pressing “ENTER”. A program table will
appear which is initially empty until you enter the temperature values. You can now enter the humidity
program.
Humidity at the beginning
of the program section
Fan speed in %
(no function)
Program No.
Subprogram TP-Program No. 2
08:43:55 15.10.13
2
Total number of program
sections
Parameter set (preselected)
Tolerance band limits humidity
(maximum and minimum
humidity)
Operation lines
(no function)
Duration of program
section
Number of start section in case of
repeat cycles
Number of repeats in case of
repeat cycles
Proceeding further is equivalent to the temperature value entry described in chap. 9.2.
Time course of the subroutines:
When starting the overall program, both subroutines (TP-Program 1 and TP-Program 2) run off synchro-
nously. They should be of the same duration because each of the subroutines becomes inactive after
run-off (i.e., no heating or refrigeration and 50% fan speed after ZP 1 is completed, no humidification after
ZP 2 is completed). When the complete program is finished, the controller changes to Idle Mode. Tem-
perature and humidity proceed towards ambient values.
Performance after completing the program:
The controller changes to Idle Mode. Heating, refrigeration, and humidification are inactive; the chamber
approximates ambient temperature. The fan turns at 50% rate (factory setting).
