Maintenance – Section 6.1 - Assembly Procedure

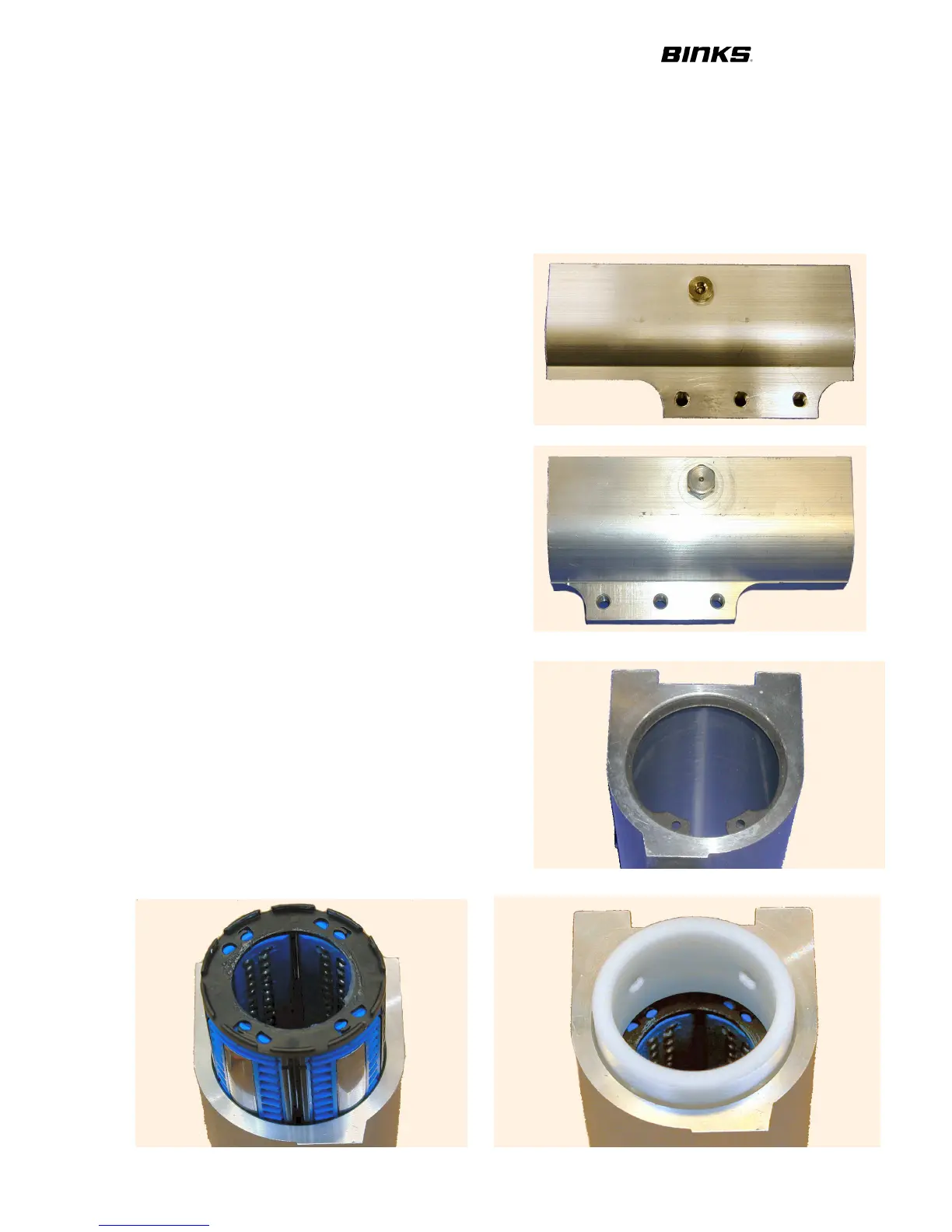

192682 Carriage Sub-Assembly
End block
1. Insert grease nipple (75) into front port,
corner of hexagon should point forward.
2. Insert circlip (70) into one end of block.
3. Insert linear bearing (68) into carriage so
that the seal side will be on the outside the
edge of the block. Orientate bearing so
that the wide black section along its body
is aligned to the block’s side.
4. Insert white bearing spacer (69), with
cross holes aligned the ball races.
5. Insert the second linear bearing (68) into
carriage so that the seal side will be on the
outside; orientate bearing so that the wide
black section along its body is aligned to
the block’s side.
6. Insert the second circlip (70) to other end
of the carriage block
Note: - 1 off LH (60) and 1 off RH (62)
carriage blocks are required to build up
one sub-assembly.
