Combipool-pHRedox_(Multi) - DOC015452 - Ind. A03 - 23/12/2020
Copyright BIO-UV
Marque, Modèles et Brevets déposés - Produits exclusifs
Page 30
ENGLISH

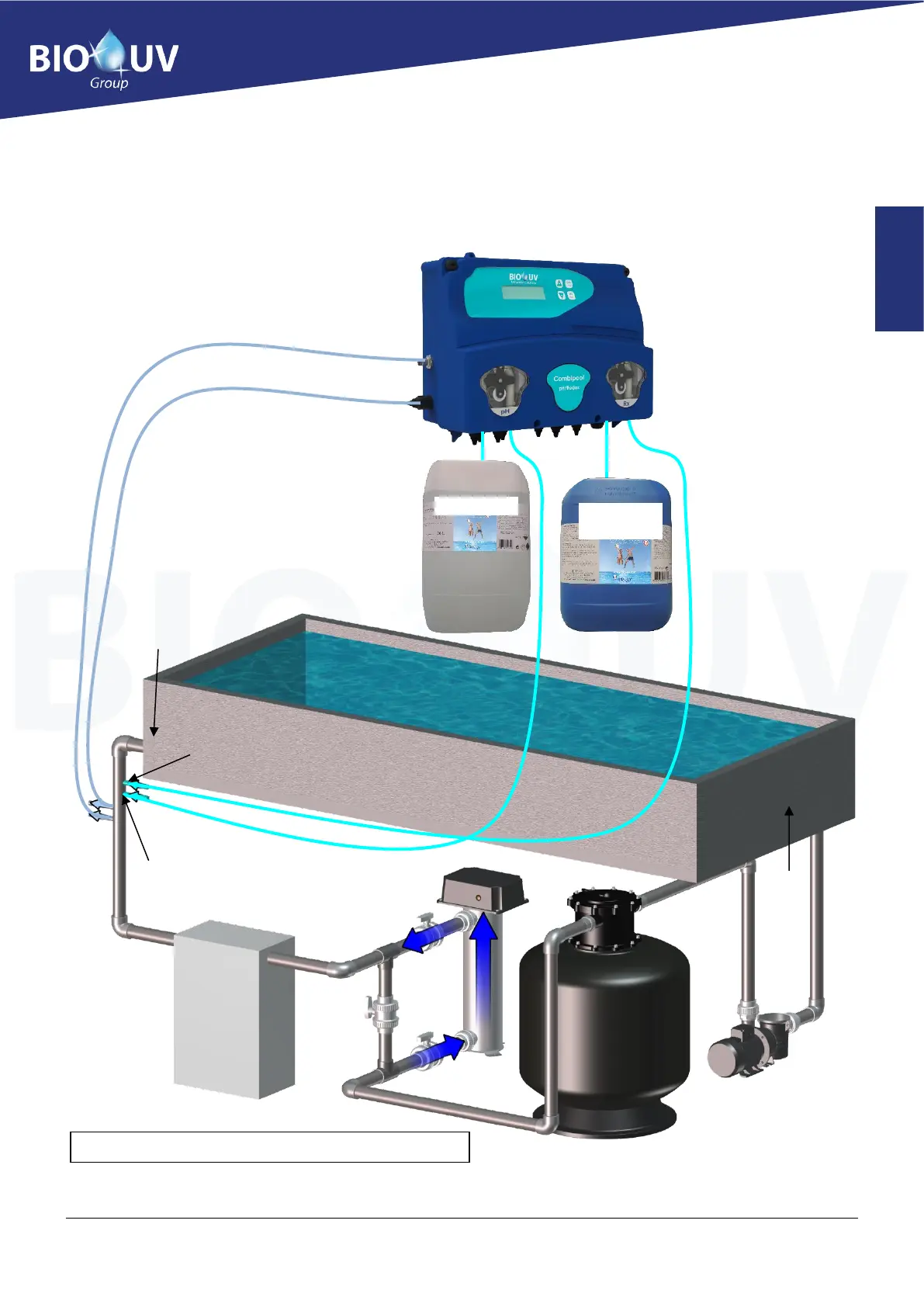

5. Typical installation diagram
The 63 diameter pipe saddles must be installed on the pipeline:
after the filter and after the UV reactor
pH or Redox probe holder on top (max inclination is 45° from the vertical) upstream of the injection valves
where the pressure at the injection point is less than 1 bar.
Heater
Filter
Pump
UV reactor
Pool
pH analysis probe
Discharges
Skimmers
Redox analysis
probe
pH minus
injection
Remanent
injection
pH Minus
Remanent
(Chlorine)
Installation of an earthing kit is recommended
