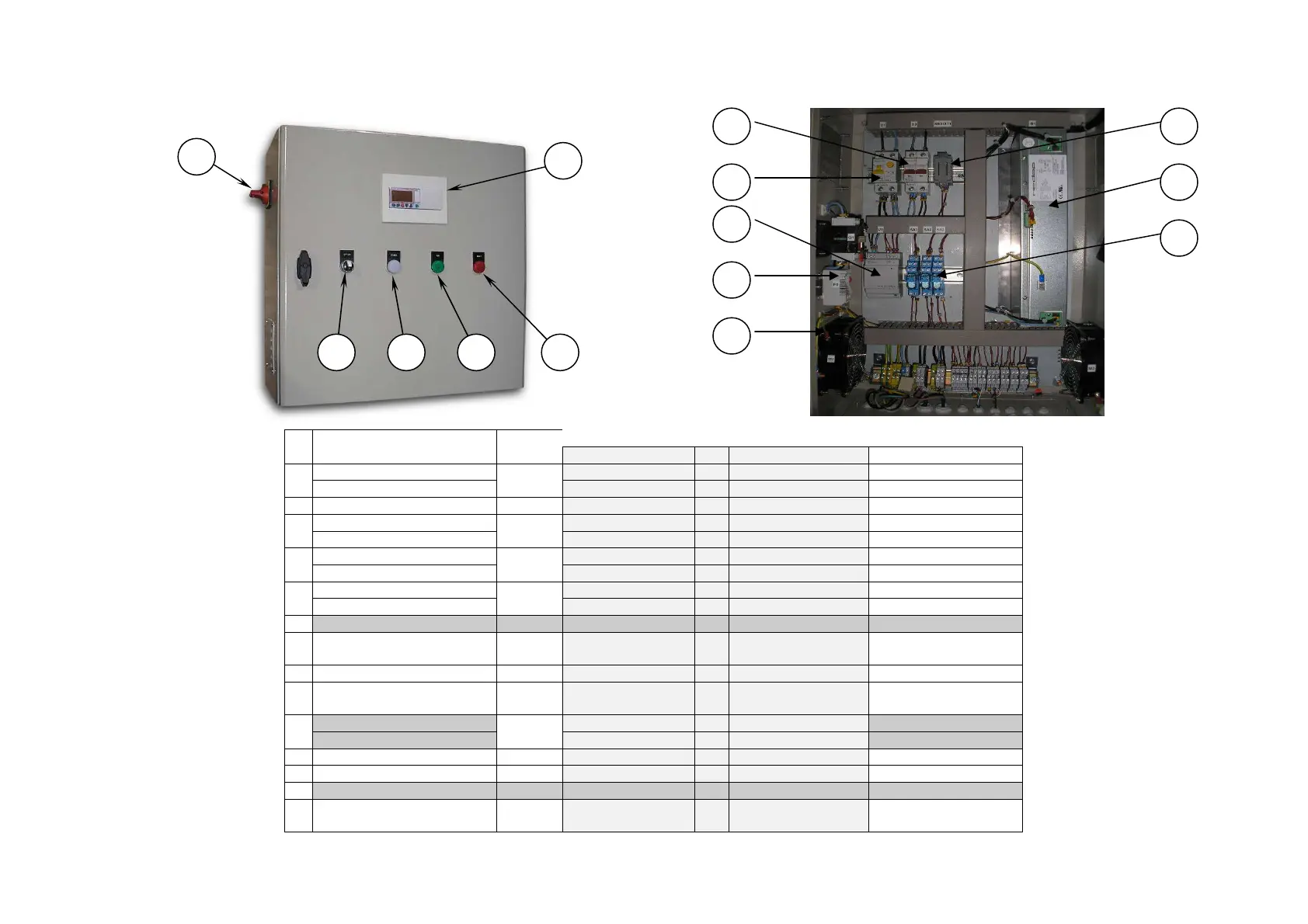

K. ELECTRICAL UNIT
* Only with Automatic cleaning option
Marque, Modèles et Brevets déposés
-
Produits exclusifs
MP-FR.doc
Page 23
Copyright BIO-UV - 29/01/2009
N° Désignation Tag
MP030 EL 600
Qty
MP030 EL 1KW
Qty
MP030 EL
Qty
Disconnecting switch
ELE000117 1 ELE000117 1 ELE000117 1
1
Main pole
Q1
- - ELE001080 1
2
ON/OFF switch
S1 ELE000271 1 ELE000271 1 ELE000271 1
Hide ligth white
ELE000297 1 ELE000297 1 ELE000297 1
3
LED white
H1
ELE000274 1 ELE000274 1 ELE000274 1
Hide ligth green
ELE000296 1 ELE000296 1 ELE000296 1
4
LED green
H2
ELE000272 1 ELE000272 1 ELE000272 1
Hide ligth red
ELE001016 1 ELE001016 1 ELE001016 1
5
LED red
H3
ELE001303 1 ELE001303 1 ELE001303 1
6
Monitor M3
Monitor ELE002401 1 ELE002401 1 ELE002401 1
7
Fan
Disposable filter
M
ELE000189 2 ELE000189 2 ELE000189 2
8
Thermostat
F0 ELE000335 1 ELE000335 1 ELE000335 1
9
Power supply 24VDC
U1
ELE002161
ELE002202*
1
ELE002161
ELE002202*
1
ELE002161
ELE002202*
1
Circuit breaker
ELE000186 1 ELE000186 1 ELE004426 1
10
Differential
D1
- - -
11
Circuit breaker
D2 ELE004425 1 ELE004425 1 ELE001445 1
12
Resistor box
RESIST1
13
Electronic Ballast
B BAL004389 1 BAL004390 1 BAL004270 1
14
Relay
KA
ELE001060 3
5*
ELE001060 3
5*
ELE001060 3
5*
6
1
4
2
3
5
7
8
10
11
12
14
13
9
