BIO UV MP030 EL - Reactor Exploded View and Parts List

MP 030 EL NM GB Copyright BIO-UV - 29/01/2009
Marque, Modèles et Brevets déposés - Produits exclusifs
Page 24

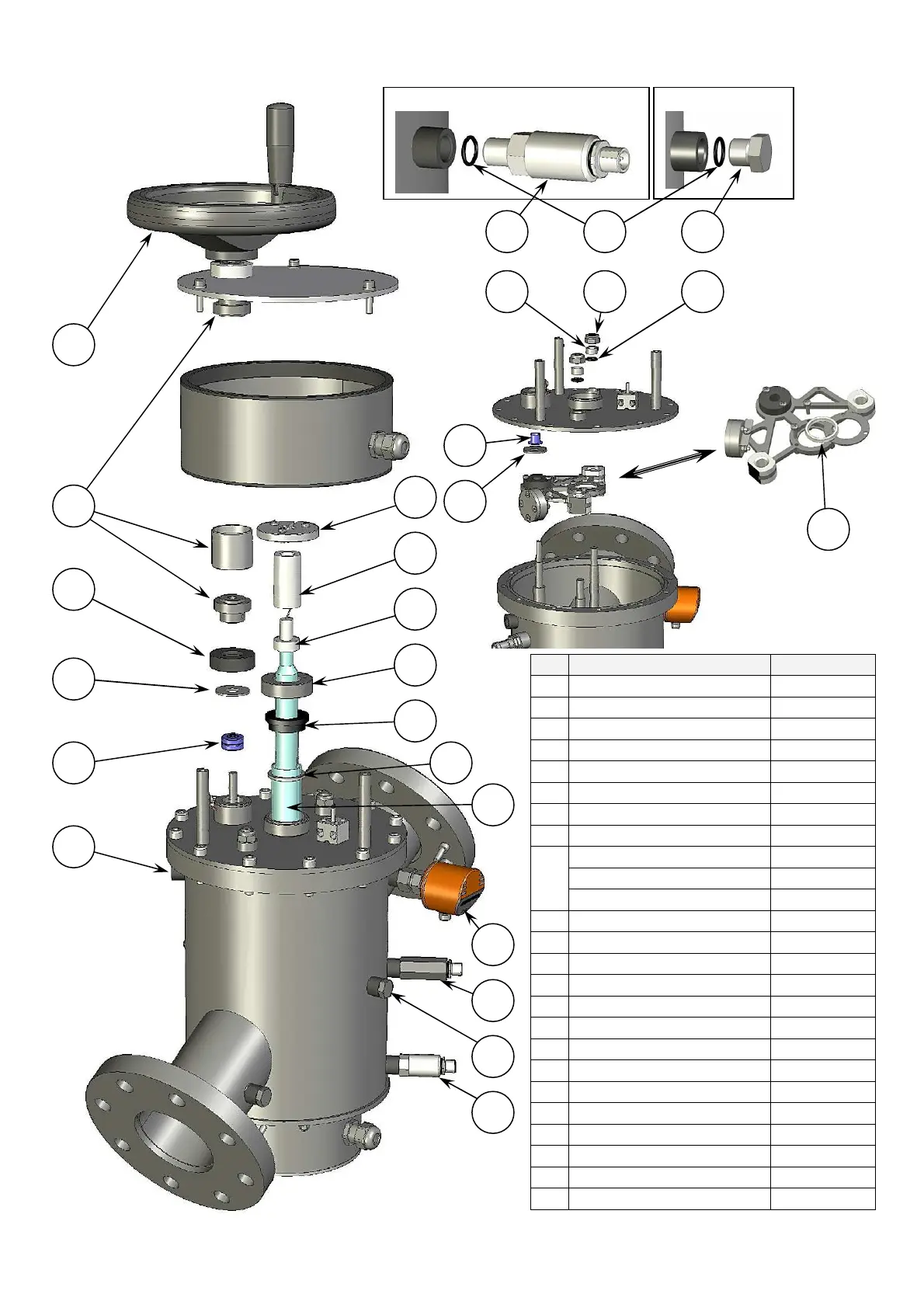

L. BLOWN UP VIEW
N° Designation Reference
1
Operating handwheel
STD003903
2
Toothed coupling
ASM003970
3
Nut of cleaning
USI000018
4
Flat washer
PIE003982
5
Seals (x2)
JTS002715
6
Drain plug
ACC000410
7
Lamp base
PIE000500
8
Spacing washer*
PIE001067
Lamp 600W
LPE001072
Lamp 1000W
LPE000010
9
Lamp 2500W
LPE004371
10
Nut
USI000019
11
Aluminium washer
PIE000487
12
Seal
JTS000098
13
Quartz sleeve
QUA000021
14
Flow meter
ELE000057
15
UV sensor
ELE001388
16
Temperature sensor
ELE002289
17
Seal
JTS000230
18
Spacing washer
VIS000317
19
Nut
VIS000976
20
Seal
JTS000094
21
Flanged bushing
STD001846
22
Flat washer
VIS002054
23
Wiper seal
JTS000099
* Only for MP030 600W
1
2
3
4
5
7
8
10
11
9
6
12
15
6
16
14
13
22
21
18
19
20
23
UV Sensor
Drain plug
6
17
16
