biochrom Anthos Fluido 2 - Aspiration Positions for flat bottom or curved bottom plates; Wash Positions for flat bottom and curved bottom plates

Biochrom Anthos Fluido-2 Microplate Washer v2.0 Page 53
Drawing
53.

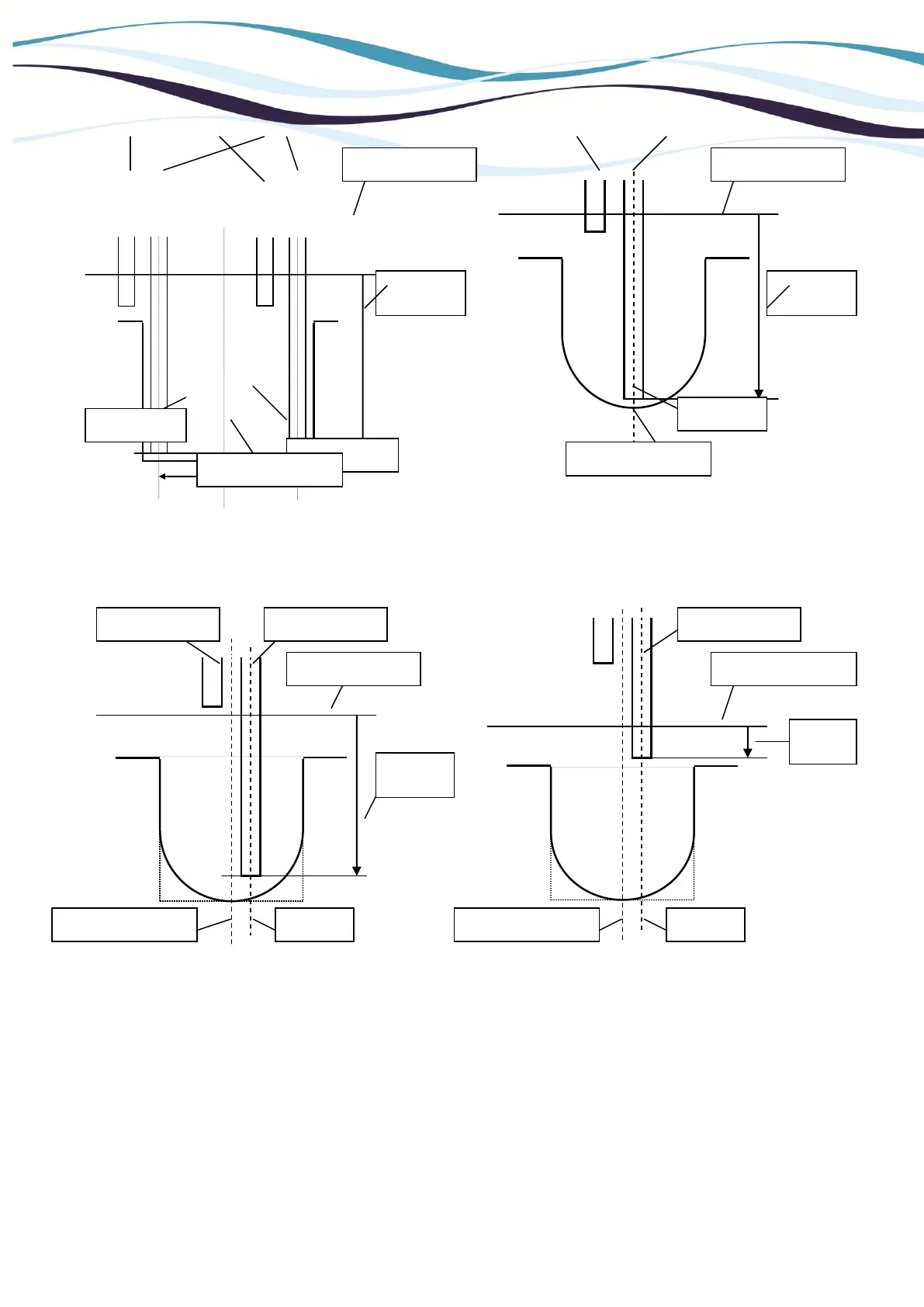

Aspiration Positions for flat bottom or curved bottom plates
Drawing
54.
Wash Positions for flat bottom and curved bottom plates
Vertical 0-Position
Aspiration
ht
Side pos rear
Side pos front
Vertical 0-Position
Horizontal 0-Position
Horizontal 0-Position
Center pos
Aspiration
ht
Dispense needle
Aspiration needle
Vertical 0-Position
Bottom
disp ht
Disp pos
Horizontal 0-Position
Aspiration needle
Vertical 0-Position
Horizontal 0-position
Disp pos
Ovflow
disp ht
