E80/E70 Digital Electrocardiograph User’s Manual
1-5

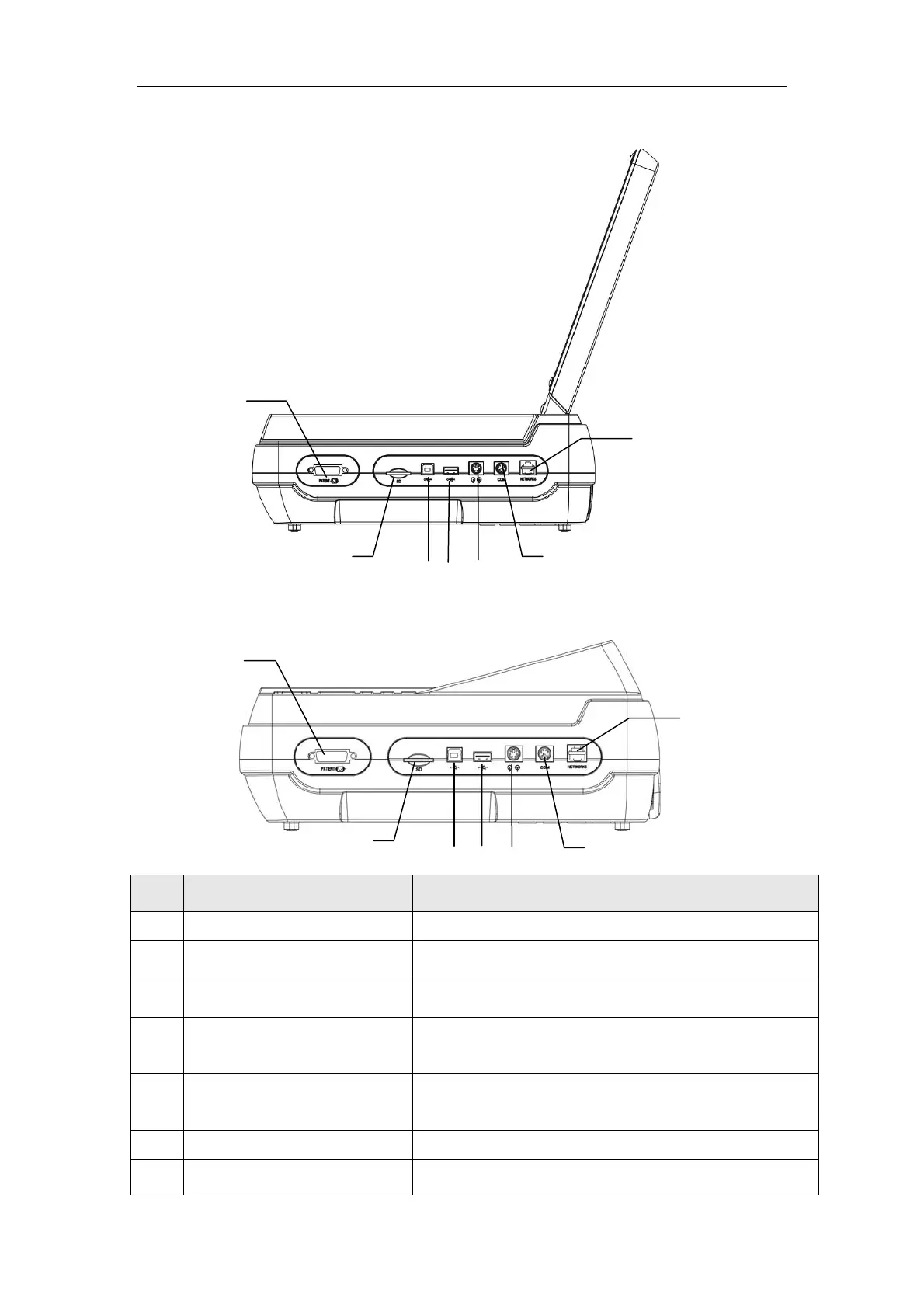

 E80 Right side:
 E70 right side
NO.
Name Note
1 Network connector Standard RJ45 mode connector, Factory debug.
2 Serial port Spare
3 Exterior in-out connector Spare
4 USB connector 1 Standard US connector, connect special U flash
disk.
5 USB connector 2 Standard USB connector, connect to USB
printer
6 SD memory card slot Can be inserted SD memory card
7 Patient cable socket Connect to patient cable
7
1
26
5 4 3
7
1
2
6
5 4 3
