E80/E70 Digital Electrocardiograph User’s Manual
5-1
Chapter 5 Read the Printed ECG Report
5.1 Examples and notes of Record Report
The formats of printed reports usable for E80 electrocardiograph are
described in this section. Taking 12x1 ECG record in Fast mode as an example,
its contents are shown in the figure below:

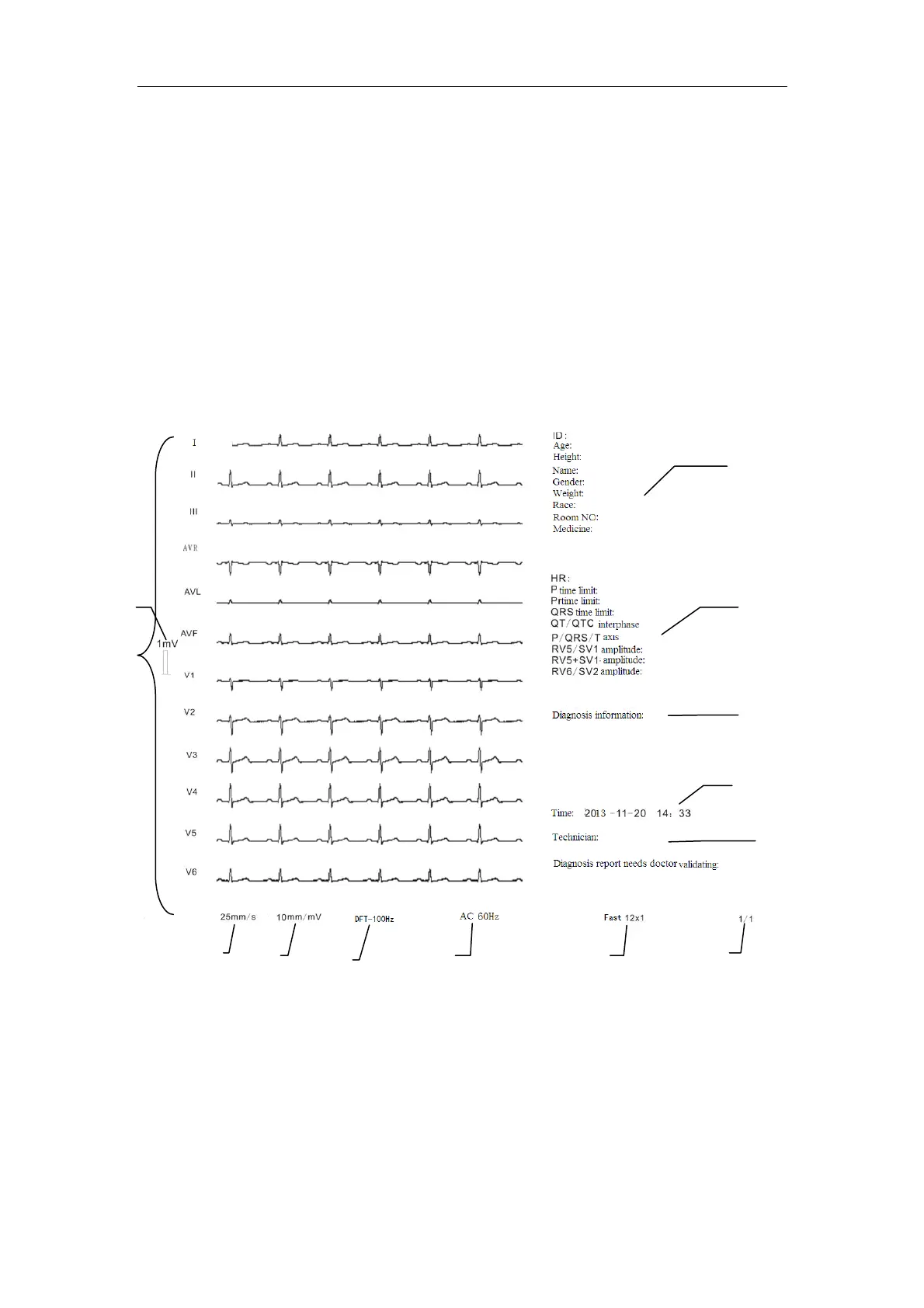

Fig. 5-1: Fast mode 12x1 report
A: Patient info (Refer to page 5-2) B: Measure info (Refer to page5-2)
C: Diagnosis info (Refer to page5-2)
D: The time recording report
E: Technician and physician info F: Report page NO.
G: Report format H: AC filter status
I: Baseline drift filter (Open) and lowpass filter frequency
J: Gain
K: Speed
B
A
C
L
F
D
GHJ
K
M
E
I
To Next Page
